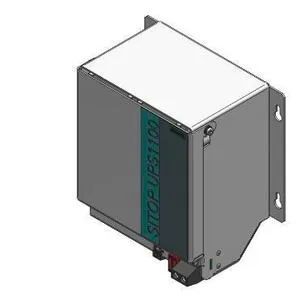

Siemens 6EP4134-0GB00-0AY0
SITOP UPS1100 battery modül ile maintenance- free sealed lead-acid batteries için SITOP DC UPS modülleri 24 V DC 7 Ah
product brand nameSITOP
product type designationUPS1100
product designationBattery module 7 Ah
type of batterybakım gerektirmez lead-acid batteries
product versionExtension module/battery module
at -10 °C recommended28 V
Ürün Hakkında
SITOP UPS1100 battery modül ile maintenance- free sealed lead-acid batteries için SITOP DC UPS modülleri 24 V DC 7 Ah
Siemens 6EP4134-0GB00-0AY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationUPS1100
product designationBattery module 7 Ah
type of batterybakım gerektirmez lead-acid batteries
product versionExtension module/battery module
electrical data
at -10 °C recommended28 V
at 0 °C recommended28 V
at 10 °C recommended27,8 V
at 20 °C recommended27,3 V
at 30 °C recommended26,8 V
at 40 °C recommended26,6 V
at 50 °C recommended26,3 V
output
battery capacity7 A·h
output current rated value40 A
output current in buffering mode maximum40 A
peak current120 A; for 30 ms
charging current maximum1,75 A
output voltage at DC rated value24 V
interfaces
communication functionVar
protection and monitoring

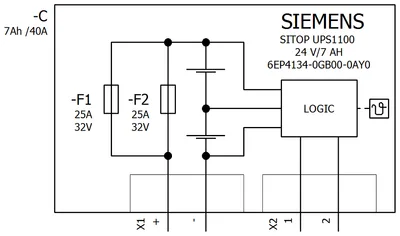

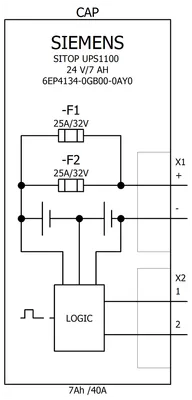

design of short-circuit protectionBattery fuse 2x 25 A/32 V (solid-state circuitry blade-type fuse + support)
design of the overload protectionValve control
display version for normal operationLED green: Battery OK; LED flashing green: Error veya warning; OFF: Yok communication
safety
operating resource protection classClass III
protection class IPIP20
standards, specifications, approvals
CE markingVar
UL onayıVar; cURus-Recognized (UL 1778, CSA C22.2 Yok. 107,1), File E219627
EAC approvalVar
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total24,166 kg
during manufacturing13,567 kg
during operation8,167 kg
after end of life0,715 kg
ambient conditions
ambient conditionFor storage, mounting ve operation of lead-acid batteries, the relevant DIN/VDE regulations veya country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be least 50 cm away.
during operation-15... +50 °C
during transport-20... +50 °C
during storage-20... +40 °C
relative temporary capacity loss at 20 °C in a month typical3 %
service life
typicalcapacity falls to 80 % of original capacity (according to EUROBAT)
at 20 °C typical4 a
at 30 °C typical2 a
at 40 °C typical1 a
at 50 °C typical0,5 a
noteAlong with the storage ve operating temperature, other factors such as the duration of the storage period ve the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, ve within the temperature range 0 to +20 °C.
connection method
type of electrical connectionscrew terminal
for UPS module1 screw terminal her biri for 0,5... 16 mm² for + BAT ve - BAT
for control circuit and status message1 screw terminal her biri for 0,14... 4 mm²
mechanical data

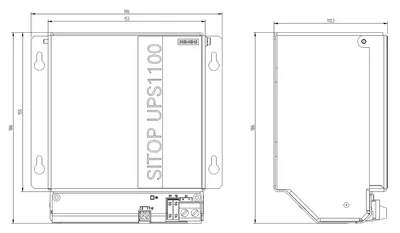

width × height × depth of the enclosure186 × 186 × 110 mm
installation width × mounting height186 mm × 201 mm
top15 mm
bottom0 mm
left0 mm
right0 mm
fastening methodcan be screwed onto flat surface (keyhole mounting for hooking in to M4 screws)
DIN-rail mountingYok
S7 rail mountingYok
wall mountingVar
net weight6,1 kg
number of cells12
accessories
product component includedAccessories pack with solid-state circuitry fuse 25 A
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
