Siemens 6EP4137-0GE00-0AY0

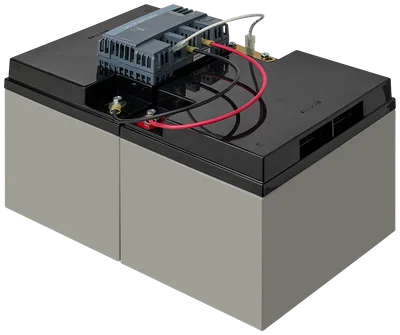

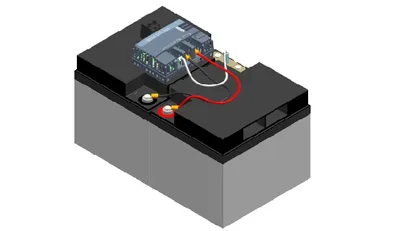

SITOP BAT1600 24 V DC 38 Ah Pb battery modül ile maintenance- fee closed lead-acid battery için SITOP UPS1600
product brand nameSITOP
product type designationBAT1600
product designation38 Ah Pb
type of batterybakım gerektirmez lead-acid batteries
product versionExtension module/battery module
at -10 °C recommended28 V
Ürün Hakkında
SITOP BAT1600 24 V DC 38 Ah Pb battery modül ile maintenance- fee closed lead-acid battery için SITOP UPS1600
Siemens 6EP4137-0GE00-0AY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationBAT1600
product designation38 Ah Pb
type of batterybakım gerektirmez lead-acid batteries
product versionExtension module/battery module
electrical data
at -10 °C recommended28 V
at 0 °C recommended28 V
at 10 °C recommended27,8 V
at 20 °C recommended27,3 V
at 30 °C recommended26,8 V
at 40 °C recommended26,6 V
at 50 °C recommended26,3 V
output
battery capacity38 A·h
output current rated value40 A
output current in buffering mode maximum40 A
peak current120 A; for 30 ms
charging current maximum9 A
output voltage at DC rated value24 V
interfaces
communication functionVar
protection and monitoring

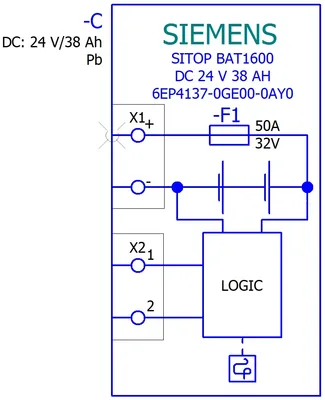

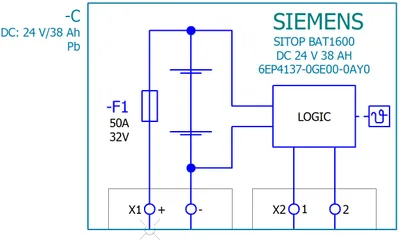

design of short-circuit protection50A / 32V Maxi flat fuse
design of the overload protectionValve control
display version for normal operationThree-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible
safety
operating resource protection classClass III
protection class IPIP20
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 61010-1, UL61010-2-201, CSA C22.2 Yok. 61010-1, CSA C22.2 NO 61010-2-201), File E143289
UKCA markingVar
type of certification CB-certificateVar
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)in preparation
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total82,936 kg
during manufacturing68,82 kg
during operation1,778 kg
after end of life3,627 kg
ambient conditions
ambient conditionFor storage, mounting ve operation of batteries, the relevant DIN/VDE regulations veya country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed.
during operation-15... +50 °C
during transport-30... +70 °C
during storage-20... +40 °C
relative temporary capacity loss at 20 °C in a month typical3 %
service life
typicalcapacity falls to 80 % of original capacity (according to EUROBAT)
at 20 °C typical10 a
at 30 °C typical5 a
at 40 °C typical2,5 a
at 50 °C typical1,25 a
noteIn addition to the storage temperature, additional factors, such as storage duration ve charging status during storage, have a major impact on the potential service life. This means batteries should preferably be stored fully charged for short periods of time in a dry, cool ve frost-proof (temperature range 0 to +20 °C) location.
connection method
type of electrical connectionPlug-in terminals with screwed connection
for UPS module1 screw terminal her biri for 0,5... 16 mm² for + BAT ve - BAT
for control circuit and status message1 screw terminal her biri for 0,2... 2,5 mm²
mechanical data

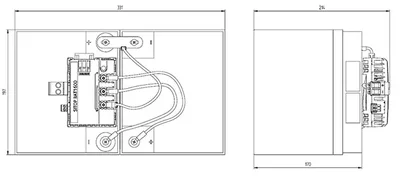

width × height × depth of the enclosure394 × 212 × 165 mm
installation width × mounting height330 mm × 262 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodFloor mounting
DIN-rail mountingYok
S7 rail mountingYok
wall mountingYok
net weight27,9 kg
number of cells2
accessories
product component included2x Maxi Fuse 50 A/32 V
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
