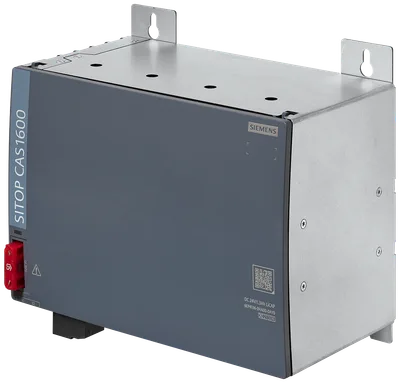

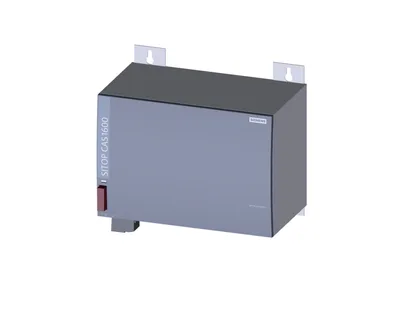

Siemens 6EP4136-0HA00-0AY0
SITOP CAS1600 1,3 Ah 24 V DC 1,3 Ah LiCAP capacitor modül ile maintenance- free sealed supercapacitors için SITOP UPS1600
product brand nameSITOP
product type designationCAS1600
product designationCapacitor module 1,3 Ah LiCap
type of batterybakım gerektirmez lithium capacitors
product versionexpansion/capacity module
at -10 °C recommended28,8 V
Ürün Hakkında
SITOP CAS1600 1,3 Ah 24 V DC 1,3 Ah LiCAP capacitor modül ile maintenance- free sealed supercapacitors için SITOP UPS1600
Siemens 6EP4136-0HA00-0AY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationCAS1600
product designationCapacitor module 1,3 Ah LiCap
type of batterybakım gerektirmez lithium capacitors
product versionexpansion/capacity module
electrical data
at -10 °C recommended28,8 V
at 0 °C recommended28,8 V
at 10 °C recommended28,8 V
at 20 °C recommended28,8 V
at 30 °C recommended28,8 V
at 40 °C recommended28,8 V
at 50 °C recommended28,8 V
at 60 °C recommended28,8 V
output
battery capacity1,3 A·h
output current rated value40 A
output current in buffering mode maximum40 A
peak current120 A; 1x 120 A for 30 ms/1x 60 A for 5 s per minute
charging current maximum40 A
output voltage at DC rated value24 V
design of the mains power cut bridging-connection70 s/40 A
number of parallel-switched equipment resources for increasing the power4
interfaces
communication functionVar
protection and monitoring
design of short-circuit protection50A / 32V Maxi flat fuse
design of the overload protectionoverpressure valve
display version for normal operationThree-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible
safety
operating resource protection classClass III
protection class IPIP20
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus (UL 61010-1 3rd Ed., UL 61010-2-201 2nd Ed.), File E143289
UKCA markingVar
EAC approvalYok
Regulatory Compliance Mark (RCM)Var
type of certification CB-certificateVar
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
CCC for hazardous zone according to GB standardYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)in preparation
Det Norske Veritas (DNV)in preparation
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total107,3 kg
during manufacturing95 kg
during operation8,1 kg
after end of life1,78 kg
ambient conditions
during operation-30... +65 °C
during transport-30... +70 °C
during storage-30... +70 °C
relative temporary capacity loss at 20 °C in a month typical1,5 %
installation altitude at height above sea level maximum4.000 m
service life
typicalReduction of capacity to 80% of the original capacity (according to EUROBAT) - Attention: 80% capacity does not mean 80% of the buffer time; the buffer time is even shorter due to the increase in internal resistance the end of life
at 10 °C typical15 a
at 20 °C typical15 a
at 30 °C typical15 a
at 40 °C typical12 a
at 50 °C typical7 a
at 60 °C typical3 a
connection method
type of electrical connectionscrew terminal
for UPS module1 screw terminal her biri for 0,5... 16 mm² for + CAS ve - CAS
for control circuit and status message1 screw terminal her biri for 0,2... 2,5 mm²

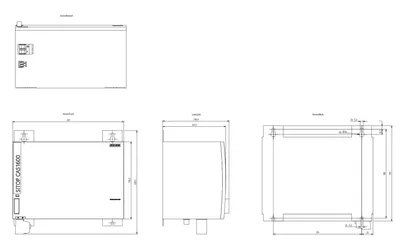

mechanical data
width × height × depth of the enclosure225 × 156 × 135 mm
installation width × mounting height225 mm × 256 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodcan be screwed onto flat surface (keyhole mounting for hooking in to M4 screws)
DIN-rail mountingYok
S7 rail mountingYok
wall mountingVar
net weight6 kg
number of cells8
accessories
product component includedaccessory kit with 2x FKS fuse 50 A, power connector, signal connector
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
