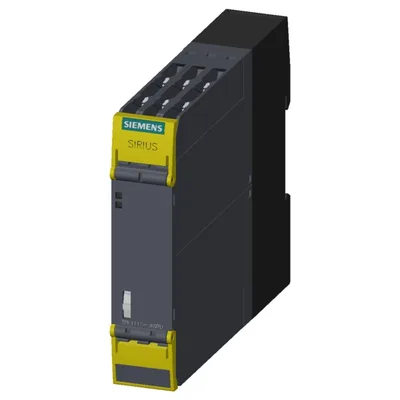

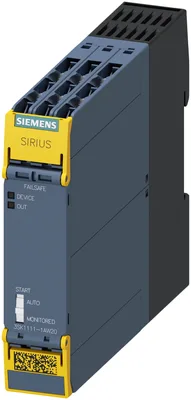

Siemens 3SK1111-1AW20
SIRIUS safety röle temel ünite standart series röle enabling circuits 3 NO contacts plus röle sinyalizasyon circuit 1 NC kontak Us = 110 - 240 V AC/DC 50/60 Hz vidalı klemens
product brand nameSIRIUS
product categorySafety relays
product designationsafety relays
design of the productRelay enabling circuits
product type designation3SK1
product lineStandard basic unit
Ürün Hakkında
SIRIUS safety röle temel ünite standart series röle enabling circuits 3 NO contacts plus röle sinyalizasyon circuit 1 NC kontak Us = 110 - 240 V AC/DC 50/60 Hz vidalı klemens
Siemens 3SK1111-1AW20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySafety relays
product designationsafety relays
design of the productRelay enabling circuits
product type designation3SK1
product lineStandard basic unit
Product Function
product function parameterizableSensor floating / monitored start / automatic start
automatic startVar
light barrier monitoringYok
protective door monitoringVar
magnetically operated switch monitoring NC-NOYok
magnetically operated switch monitoring NC-NCVar
laser scanner monitoringYok
light array monitoringYok
EMERGENCY OFF functionVar
monitored start-upVar
pressure-sensitive mat monitoringYok
product feature cross-circuit-proofVar
suitability for interaction press controlYok
suitability for operation device connector 3ZY12Yok
monitoring of floating sensorsVar
monitoring of non-floating sensorsYok
position switch monitoringVar
EMERGENCY-OFF circuit monitoringVar
opto-electronic protection device monitoringYok
magnetically operated switch monitoringYok
safety-related circuitsVar
General technical data
certificate of suitability UL approvalVar
product feature protective coating on printed-circuit boardYok
power loss [W] maximum2,5 W
insulation voltage rated value300 V
degree of pollution3
overvoltage category3
surge voltage resistance rated value4.000 V
protection class IP of the enclosureIP20
shock resistance10 g / 11 ms
vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm
operating frequency maximum360 1/h
reference code according to IEC 81346-2F
Substance Prohibitance (day/month/year)11/05/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7
Net Weight0,232 kg
Ambient conditions
installation altitude at height above sea level maximum4.000 m
noteDerating, see Product Notification 109792701
during operation-25... +60 °C
during storage-40... +80 °C
relative humidity during operation10... 95 %
air pressure according to SN 31205900... 1.060 hPa
Electromagnetic compatibility
installation environment regarding EMCThis product is suitable for Class A environments only. In household environments, this device can cause unwanted radio interference. The user is required to implement appropriate measures in this case.
EMC emitted interferenceIEC 60947-5-1, Class A
Safety related data
product function suitable for safety functionVar
safe stateSafety outputs switched off
test wear-related service life necessaryVar
function test interval maximum1 a
stop category according to IEC 60204-10
IEC 62061
SIL Claim Limit (subsystem) according to EN 620613
according to IEC 62061SIL 3
at single-channel evaluation according to IEC 620611
at 2-channel evaluation according to IEC 620613
PFHD with high demand rate according to IEC 620610,0000000015
ISO 13849
category according to EN ISO 13849-14
according to ISO 13849-1PL e
at single-channel evaluation according to ISO 13849-1c
at 2-channel evaluation according to ISO 13849-1e
according to ISO 13849-14
at 2-channel evaluation according to ISO 13849-14
overdimensioning according to ISO 13849-2 necessaryYok
IEC 61508
according to IEC 615083
at single-channel evaluation according to IEC 615081
at 2-channel evaluation according to IEC 615083
safety device type according to IEC 61508-2Type A
PFHD with high demand rate according to IEC 615080,0000000015
PFDavg with low demand rate according to IEC 615080,000001
Safe failure fraction (SFF)99 %
according to IEC 615081
at single-channel evaluation according to IEC 615080
at 2-channel evaluation according to IEC 615081
of service life according to IEC 6150820 a
for proof test interval or service life according to IEC 6150820 a
Electrical Safety
touch protection against electrical shockfinger-safe
Short-circuit protection
for short-circuit protection of the NO contacts of the relay outputs requiredgL/gG: 6A veya circuit breaker type A: 3A veya circuit breaker type B: 2A veya circuit breaker type C: 1A
for short circuit protection of the NC contacts of the relay outputs requiredDiazed veya Neozed fuses, operating class gL/gG: 6 A veya MCB type A: 2 A veya MCB type B: 2 A veya MCB type C: 1 A
Inputs
cascading input/functional switchingYok
feedback inputVar
start inputVar
pulse duration of the sensor input minimum150 ms
number of sensor inputs 1-channel or 2-channel1
Outputs
— for signaling function instantaneous contact1
— safety-related instantaneous contact3
— safety-related delayed switching0
mechanical service life (operating cycles) typical10.000.000
thermal current of the switching element with contacts maximum5 A
at 24 V5 A
at 115 V0,2 A
at 230 V0,1 A
at 115 V5 A
at 230 V5 A
at 24 V1 A
at 115 V0,2 A
at 230 V0,1 A
at 24 V2 A
at 115 V1,5 A
at 230 V1,5 A
total current maximum12 A
operational current at 17 V minimum5 mA
Times
typical110 ms
at DC maximum130 ms
at AC maximum130 ms
typical110 ms
maximum130 ms
typical15 ms
maximum15 ms
backslide delay time after opening of the safety circuits typical10 ms
typical200 ms
maximum300 ms
recovery time after opening of the safety circuits typical10 ms
recovery time after power failure typical0,32 s
of the ON pushbutton input minimum0,015 s
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value110... 240 V
at 60 Hz rated value110... 240 V
1 rated value50 Hz
2 rated value60 Hz
control supply voltage at DC rated value110... 240 V
initial value0,85
full-scale value1,1
at 50 Hz0,85... 1,1
at 60 Hz0,85... 1,1

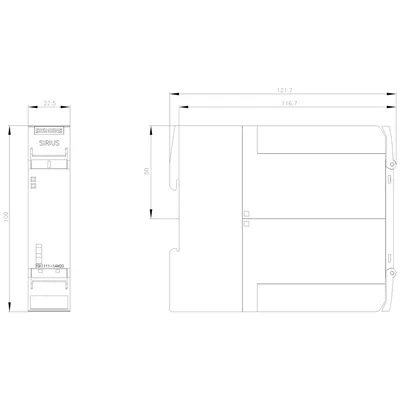

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting
height100 mm
width22,5 mm
depth121,6 mm
for grounded parts at the side5 mm
Connections/ Terminals
type of electrical connectionscrew terminal
for total of all sensor circuits with Cu 1.5 mm² and 150 nF/km maximum2.000 m
solid1x (0,5... 2,5 mm²), 2x (1,0... 1,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,0 mm²)
for AWG cables solid1x (20... 14), 2x (18... 16)
for AWG cables stranded1x (20... 16), 2x (20... 16)
type of electrical connection plug-in socketYok
