How can I get a price quote for Siemens 6GK5786-2FE00-0AB0?

You can request a fast quote for Siemens 6GK5786-2FE00-0AB0 from Yılsa Engineering. Reference part number CEY-8EF3B0385B49. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5786-2FE00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5786-2FE00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5786-2FE00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

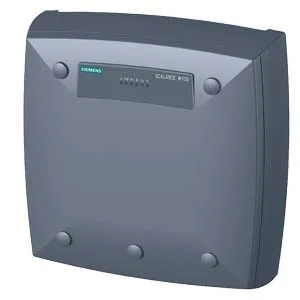

Siemens 6GK5786-2FE00-0AB0

Please observe national approvals: www.siemens.com/wireless-approvals W786-2 SFP, 2 radios, 6 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz gross 450 Mbps per radio, 2x SFP 1 Gbps switches, redundant 24 V DC, joint block, 110 - 230 V AC via PS791-2AC IP65, -40..+60 °C, plug slot, Temperature range dependent on SFP WPA2/802.11i/e, observe national approvals! CERT ID: EAPN-W2-SFP-E3, includes: MPCIE-R1-ABGN-U3, scope of supply: manuals on CD-ROM, German/English, for operation in the USA.

SiemensMFR # 6GK5786-2FE00-0AB0SKU # CEY-8EF3B0385B49

product brand nameSCALANCE

with WLAN / maximum450 Mbit/s

for Industrial Ethernet1000 Mbit/s

for power supply1

for redundant voltage supply0

for fiber optic cable / at 1000 Mbit/s2

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5786-2FE00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

transfer rate

with WLAN / maximum450 Mbit/s

for Industrial Ethernet1000 Mbit/s

interfaces

for power supply1

for redundant voltage supply0

for power supply2-pole connector (24 V DC) or optionally available power supply adapter (4-pole 24 V DC or 3-pole 110 to 230 V AC)

for fiber optic cable / at 1000 Mbit/s2

for fiber optic cable / at 1000 Mbit/sSFP slot

memory

C-PLUGYes

KEY-PLUGYes

interfaces / wireless

number of radio cards / permanently installed2

transmission mode / for multiple input multiple output (MIMO)3x3

number of spatial streams3

number of electrical connections / for external antenna(s)6

type of electrical connection / for external antenna(s)R-SMA (socket)

product feature / external antenna can be mounted directly on deviceNo

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

— at AC100 ... 240 V

— at DC12 ... 24 V

from terminal block19.2 V

from terminal block28.8 V

ambient conditions

during operation-40 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +70 °C

relative humidity / at 25 °C / without condensation / during operation / maximum100 %

ambient condition / for operationWhen using the 100 - 240 V AC power supply, an operating temperature of -40 °C to +60 °C is permissible

protection class IPIP65

design, dimensions and weights

width / of the enclosure / without antenna251 mm

height / of the enclosure / without antenna251 mm

depth / of the enclosure / without antenna72 mm

net weight2.24 kg

fastening methodFor mast mounting, 35 mm DIN rail mounting and S7-300 rail mounting, an additional support plate is required

S7-300 rail mountingYes

S7-1500 rail mountingNo

35 mm DIN-rail mountingYes

wall mountingYes

radio frequencies

for WLAN in 2.4 GHz frequency band2.41 ... 2.48 GHz; depending on the country approvals

for WLAN in 5 GHz frequency band4.9 ... 5.8 GHz; depending on the country approvals

product features, product functions, product components / general

product function / Access Point ModeYes

product function / client ModeYes

number of SSIDs16

iPCF Access PointYes; Only in combination with the 'KEY-PLUG W780 iFeatures'

iPCF clientYes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures'

iPCF-MC Access PointYes; Only in combination with the 'KEY-PLUG W780 iFeatures'

iPCF-MC clientYes; Only in combination with 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures'

number of iPCF-capable radio modules2

product function / iREFNo; In combination only with 'KEY-PLUG W780 iFeatures'

number of iREF-capable radio modules2

product function / iPRPYes; In combination with the 'KEY-PLUG W780 iFeatures' only

product functions / management, configuration, engineering

number of manageable IP addresses / in client8

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

configuration with STEP 7 in the TIA PortalYes

operation with IWLAN controllerNo

operation with Enterasys WLAN controllerNo

forced roaming on IP down with IWLANYes

forced roaming on link down with IWLANYes

WDSYes

Address Resolution Protocol (ARP)Yes

ICMPYes

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

DCPYes

LLDPYes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

PROFINET IO diagnosisYes

link checkNo

connection monitoring IP-AliveNo

localization via AeroscoutYes

SysLogYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

product functions / VLAN

function VLAN with IWLANYes

product functions / DHCP

DHCP clientYes

DHCP serverYes

DHCP Option 82Yes

product functions / redundancy

STP/RSTPYes

MSTPYes

RSTPYes

product functions / security

ACL - MAC-basedYes

management security, ACL-IP basedYes

IEEE 802.1x (radius)Yes

NAT/NAPTNo

access protection according to IEEE802.11iYes

WPA/WPA2Yes

TKIP/AESYes

SSHYes

RADIUSYes

product functions / time

NTPYes

SNTPYes

SIMATIC time synchronization (SIMATIC Time)Yes

standards, specifications, approvals

for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X

for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1

EC Declaration of ConformityYes

CE markingYes

C-TickYes

E1 approvalYes

railway application in accordance with EN 50155No

railway application in accordance with EN 50121-4Yes

NEMA TS2No

IEC 61375No

IEC 61850-3No

NEMA4XYes

Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afNo

Power-over-Ethernet according to IEEE802.3at for type 2No

IEEE 802.11aYes

IEEE 802.11bYes

IEEE 802.11eYes

IEEE 802.11gYes

IEEE 802.11hYes

IEEE 802.11iYes

IEEE 802.11nYes

standards, specifications, approvals / marine classification

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)Yes

DNV GLYes

Korean Register of Shipping (KRS)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (NK)Yes

Polski Rejestr Statkow (PRS)Yes

Royal Institution of Naval Architects (RINA)Yes

standards, specifications, approvals / hazardous environments

standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X

from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480

certificate of suitability / CCC / for hazardous zone according to GB standardYes; GB3836.1, GB3836.8

as markingEx nA IIC T4 Gc

accessories

accessories24 V DC screw terminal included in scope of delivery

Accessories 75

Genuine accessories that can be used with the Siemens 6GK5786-2FE00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1900-0AB10	Aksesuar
6GK5791-2AC00-0AA0	Aksesuar
6GK5791-2DC00-0AA0	Aksesuar
6GK5792-4DN00-0AA6	Aksesuar · Antenna · WLAN
6GK5792-6MN00-0AA6	Aksesuar · Antenna · WLAN
6GK5792-8DN00-0AA6	Aksesuar · Antenna · WLAN
6GK5793-4MN00-0AA6	Aksesuar · Antenna · WLAN
6GK5793-6DG00-0AA0	Aksesuar · Antenna · WLAN
6GK5793-8DJ00-0AA0	Aksesuar · Antenna · WLAN
6GK5793-8DK00-0AA0	Aksesuar · Antenna · WLAN
6GK5793-8DL00-0AA0	Aksesuar · Antenna · WLAN
6GK5793-8DP00-0AA0	Aksesuar · Antenna · WLAN
6GK5795-6DC00-0AA0	Aksesuar · Antenna · WLAN
6GK5795-6MN10-0AA6	Aksesuar · Antenna · WLAN
6GK5795-6MP00-0AA0	Aksesuar · Antenna · WLAN
6GK5795-6MT00-0AA0	Aksesuar · Antenna · WLAN
6XV1875-5CE30	Aksesuar · Cables · cable for WLAN antennas
6XV1875-5CH10	Aksesuar · Cables · cable for WLAN antennas
6XV1875-5CH20	Aksesuar · Cables · cable for WLAN antennas
6XV1875-5CH50	Aksesuar · Cables · cable for WLAN antennas
6XV1875-5CN10	Aksesuar · Cables · cable for WLAN antennas
6XV1875-5DE30	Aksesuar · Cables · cable for WLAN antennas
6XV1875-5DH20	Aksesuar · Cables · cable for WLAN antennas
6GK5907-8PA00	Aksesuar
6GK5980-0BB00-0AA5	Aksesuar
6GK5980-0BB10-0AA5	Aksesuar
6GK5992-1AL00-8AA0	Aksesuar
6GK5992-1AL00-8AC0	Aksesuar
6GK5992-1AM00-8AA0	Aksesuar
6GK5992-1AM00-8AC0	Aksesuar
6GK5992-1AN00-8AA0	Aksesuar
6GK5992-1AP00-8AA0	Aksesuar
6GK5992-1AQ00-8AA0	Aksesuar
6XV1812-8A	Aksesuar · Cables · power cables
6XV1843-5EH10-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5EH10-0AB0	Aksesuar · Cables · network cable optical
6XV1843-5EH10-0CA0	Aksesuar · Cables · network cable optical
6XV1843-5EH20-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5EH20-0AB0	Aksesuar · Cables · network cable optical
6XV1843-5EH30-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5EH30-0AB0	Aksesuar · Cables · network cable optical
6XV1843-5FH10-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5FH10-0AB0	Aksesuar · Cables · network cable optical
6XV1843-5FH10-0CA0	Aksesuar · Cables · network cable optical
6XV1843-5FH20-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5FH20-0AB0	Aksesuar · Cables · network cable optical
6XV1843-5FH30-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5FH30-0AB0	Aksesuar · Cables · network cable optical
6XV1873-5AH10	Aksesuar · Cables · network cable optical
6XV1873-5AH20	Aksesuar · Cables · network cable optical
6XV1873-5AH30	Aksesuar · Cables · network cable optical
6XV1873-5AH50	Aksesuar · Cables · network cable optical
6XV1873-5AN10	Aksesuar · Cables · network cable optical
6XV1873-5AN15	Aksesuar · Cables · network cable optical
6XV1873-5AN20	Aksesuar · Cables · network cable optical
6XV1873-5AN30	Aksesuar · Cables · network cable optical
6XV1873-5AN40	Aksesuar · Cables · network cable optical
6XV1873-5AN50	Aksesuar · Cables · network cable optical
6XV1873-5AN80	Aksesuar · Cables · network cable optical
6XV1873-5AT10	Aksesuar · Cables · network cable optical
6XV1873-5AT15	Aksesuar · Cables · network cable optical
6XV1873-5AT20	Aksesuar · Cables · network cable optical
6XV1873-5AT30	Aksesuar · Cables · network cable optical
6XV1873-5CH50	Aksesuar · Cables · network cable optical
6XV1873-5CN10	Aksesuar · Cables · network cable optical
6XV1873-5CN15	Aksesuar · Cables · network cable optical
6XV1873-5CN20	Aksesuar · Cables · network cable optical
6XV1873-5RH10	Aksesuar · Cables · network cable optical
6XV1873-5RH20	Aksesuar · Cables · network cable optical
6XV1873-5RH30	Aksesuar · Cables · network cable optical
6XV1873-5RN10	Aksesuar · Cables · network cable optical
6XV1873-5RN30	Aksesuar · Cables · network cable optical
6XV1873-5RN50	Aksesuar · Cables · network cable optical
6XV1873-5RT10	Aksesuar · Cables · network cable optical
6XV1873-5RT15	Aksesuar · Cables · network cable optical
