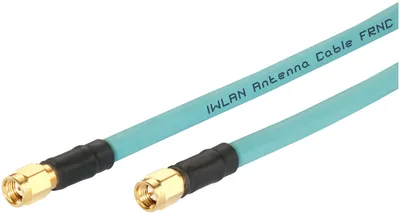

Siemens 6XV1875-5DH20
IWLAN R-SMA/ SMA male/male flexible connection cable pre-assembled, length 2 m flexible connecting cable for components with R-SMA and SMA connection.
product brand nameSIMATIC NET
wire length2 m
number of electrical connections2
type of electrical connectionR-SMA/SMA male/male
transmission frequency0 ... 6000 MHz
at 2.4 GHz / typical0.53 dB/m
About This Product
IWLAN R-SMA/ SMA male/male flexible connection cable pre-assembled, length 2 m flexible connecting cable for components with R-SMA and SMA connection.
Siemens 6XV1875-5DH20
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIMATIC NET
suitability for useFlexible connecting cable for connecting a cabinet bushing with SMA connection to an access point/client
wire length2 m
electrical data
number of electrical connections2
type of electrical connectionR-SMA/SMA male/male
transmission frequency0 ... 6000 MHz
at 2.4 GHz / typical0.53 dB/m
at 5.2 GHz / typical0.83 dB/m
at 5.85 GHz / typical0.89 dB/m
minimum23 dB
rated value50 Ω
capacity per length / at 1 kHz82 pF/m
relative speed82 %
mechanical data
design of the shieldBraided shield made of tin-plated copper wires
of inner conductor1.4 mm
of dielectric3.8 mm
of cable sheath6.3 mm
symmetrical tolerance of the outer diameter / of cable sheath0.2 mm
thickness / of cable sheath0.76 mm
of inner conductorCu
of dielectricpolyethylene foam
of cable sheathFRNC
of cable sheathpastel turquoise
with single bend / minimum permissible32 mm
with multiple bends / minimum permissible45 mm
tensile load / maximum80 N
weight per length75 kg/km
ambient conditions
during operation-40 ... +80 °C
during storage-40 ... +80 °C
during transport-40 ... +80 °C
during installation-25 ... +80 °C
to mineral oilconditional resistance
radiological resistance / to UV radiationresistant
protection class IPIP68; when plugged in
product features, product functions, product components / general
halogen-freeYes
silicon-freeYes
standards, specifications, approvals
EAC approvalYes
RoHS conformityYes
fire protection in accordance with EN 45545-2No
standard / for fire behavior / flame resistanceUL 1685 (Vertical tray), UL 1581 Sec. 1090 (H)
