How can I get a price quote for Siemens 6GK5636-2GS00-2AC2?

You can request a fast quote for Siemens 6GK5636-2GS00-2AC2 from Yılsa Engineering. Reference part number YLS3T3SHRKEWTSI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5636-2GS00-2AC2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5636-2GS00-2AC2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5636-2GS00-2AC2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

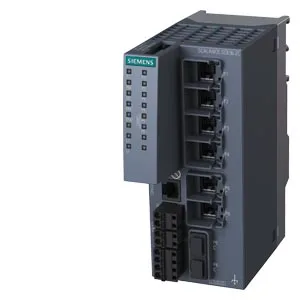

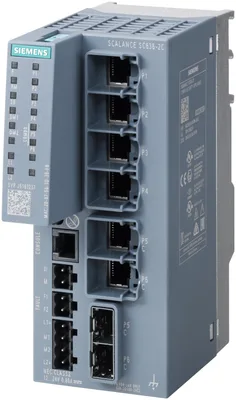

Siemens 6GK5636-2GS00-2AC2

SCALANCE SC636-2C Industrial Security Appliance; For protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; Further functions: address conversion (NAT/NAPT); Connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbit/s RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbit/s RJ45 or 100 Mbit/s SFP or 1000 Mbit/s SFP.

SiemensMFR # 6GK5636-2GS00-2AC2SKU # YLS3T3SHRKEWTSI

product brand nameSCALANCE

transfer rate10, 100, 1000 Mbit/s

for signaling contact1

for power supply1

for redundant voltage supply1

for signaling contact2-pole terminal block

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5636-2GS00-2AC2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

transfer rate

transfer rate10, 100, 1000 Mbit/s

interfaces

number of electrical/optical connections / for network components or terminal equipment / maximum6

number of electrical connections / for SFP+ / integrated2

number of combo ports / with RJ45 interface for optical plug-in transceiver2

for signaling contact1

for power supply1

for redundant voltage supply1

for signaling contact2-pole terminal block

for power supply4-pole terminal block

design of the removable storage / C-PLUGYes

signal inputs/outputs

for digital input signals1

for digital input signals2-pole terminal block

for digital output signals2-pole terminal block

operating voltage / of the signaling contacts / at DC / rated value24 V

operational current / of the signaling contacts / at DC / maximum0.1 A

supply voltage, current consumption, power loss

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value9.6 W

supply voltage / 1 / rated value9.6 ... 31.2 V

consumed current / 1 / maximum0.4 A

type of voltage / 2 / of the supply voltageDC

supply voltage / 2 / rated value24 V

power loss [W] / 2 / rated value9.6 W

supply voltage / 2 / rated value / minimum9.6 V

supply voltage / 2 / rated value / maximum31.2 V

consumed current / 2 / maximum0.4 A

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity / at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

designcompact

width60 mm

height145 mm

depth125 mm

net weight0.58 kg

fastening methodFixing bolt with additional screw protection

35 mm DIN-rail mountingYes

S7-300 rail mountingYes

S7-1500 rail mountingYes

wall mountingYes

product features, product functions, product components / general

product function / DynDNS clientYes

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TelnetNo

HTTPNo

HTTPSYes

TFTPYes

FTPYes

SFTPYes

DCPYes

LLDPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

RMONYes

port mirroringYes

multiport mirroringYes

CoSYes

type of configurationWBM, CLI, SNMP

PROFINET conformity classA

product functions / diagnostics

SysLogYes

packet filter logYes

audit logYes

system logYes

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedNo

VLAN - IP-basedNo

VLAN dynamicNo

number of VLANs / maximum257

product functions / DHCP

DHCP clientYes

DHCP server - internal networkYes

DHCP Option 66Yes

DHCP Option 67Yes

product functions / routing

product function / static IP routingYes

protocol / is supported / VRRPYes

protocol / is supported / VRRP for IPv6Yes

product function / static IP routing IPv6Yes

protocol / is supported / OSPFv2Yes

protocol / is supported / OSPFv3 for IPv6Yes

product functions / security

firewall versionstateful inspection

product function / with VPN connectionOpenVPN (as client for SINEMA RC)

password protectionYes

bandwidth limitationNo

NAT/NAPTYes

IEEE 802.1x (radius)Yes

RADIUS clientYes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

protocol / is supported / SSHYes

product functions / redundancy

ring redundancyYes

standby redundancyYes

High Speed Redundancy Protocol (HRP)Yes

protocol / is supported / Media Redundancy Protocol (MRP)Yes

redundancy procedure STPYes

redundancy procedure RSTPYes

passive listeningYes

product functions / time

protocol / is supported / NTPYes

NTP-clientYes

NTP-serverYes

protocol / is supported / SNTPYes

SNTP clientYes

SNTP serverYes

product feature / hardware real time clock w. battery backupYes

standards, specifications, approvals

standard / for FMFM19US0167X

UKCA markingYes

for safety / from CSA and ULUL 60950 E115352 / CSA C22.2 no. 60950-1-03, CSA C22.2 no. 213-M1987 (available soon)

for emitted interferenceEN 61000-6-4: 2007

for interference immunityEN 61000-6-2: 2005

certificate of suitabilityAS/NZS 2064 (Class A), EN 61000-6-2, EN 61000-6-4

CE markingYes

C-TickYes

CCCYes

MTBF31.64 a

standardEN/IEC 61709

reference temperature40 °C

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

standards, specifications, approvals / marine classification

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)Yes

DNV GLYes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (NK)Yes

Royal Institution of Naval Architects (RINA)Yes

standards, specifications, approvals / hazardous environments

standard / for hazardous zoneEN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X

certificate of suitability / CCC / for hazardous zone according to GB standardYes; GB3836.1, GB3836.8

certificate of suitability / CCC / for hazardous zone according to GB standard / as markingEx nA IIC T4 Gc

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total261.7 kg

during manufacturing31.33 kg

during operation229.9 kg

after end of life0.47 kg

accessories

C-PLUGYes
