How can I get a price quote for Siemens 6GK5795-4MA00-0AA3?

You can request a fast quote for Siemens 6GK5795-4MA00-0AA3 from Yılsa Engineering. Reference part number CEY-8EF3B02E1B4B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5795-4MA00-0AA3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5795-4MA00-0AA3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5795-4MA00-0AA3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

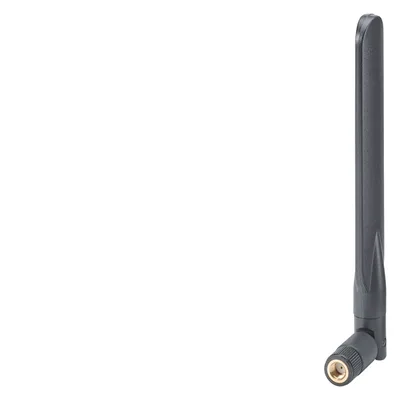

Siemens 6GK5795-4MA00-0AA3

Please observe national approvals: www.siemens.com/wireless-approvals omnidirectional Characteristic, Radially rotatable, with additional joint, incl. RSMA connector: 3/5 dBi, IP30 (-20-+60 °C), 2.4/5 GHz; Wi-Fi compliance and Observe national approvals; Direct mounting on SCALANCE W with RSMA connection system; scope of delivery: 1x ANT795-4MA, compact instructions as hard copy German/English.

SiemensMFR # 6GK5795-4MA00-0AA3SKU # CEY-8EF3B02E1B4B

product brand nameSCALANCE

type of wireless network / is supportedWLAN

for WLAN in 2.4 GHz frequency band2.4 ... 2.4835 GHz

for WLAN in 5 GHz frequency band 15.15 ... 5.35 GHz

for WLAN in 5 GHz frequency band 25.725 ... 5.85 GHz

impedance50 Ω

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5795-4MA00-0AA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

radio frequencies

type of wireless network / is supportedWLAN

for WLAN in 2.4 GHz frequency band2.4 ... 2.4835 GHz

for WLAN in 5 GHz frequency band 15.15 ... 5.35 GHz

for WLAN in 5 GHz frequency band 25.725 ... 5.85 GHz

electrical data

of the WLAN antenna / in the 2.4 GHz frequency band3 dB

of the WLAN antenna / in the 5 GHz frequency band5 dB

impedance50 Ω

polarizationLinear Vertical

radiation characteristicomnidirectional

standing wave ratio (VSWR) / maximum2

in the 2.4 GHz frequency band / horizontal360°

in the 5 GHz frequency band / horizontal360°

number of electrical connections / of the antenna1

type of electrical connection / of the antennaRSMA Connector

design of plug-in connectionmale, variable 0-90°

angle of inclination / downward / maximum0°

mechanical data

of outer shellPolycarbonate

ambient conditions

during operation-20 ... +65 °C

during storage-20 ... +65 °C

during transport-20 ... +65 °C

protection class IPIP30

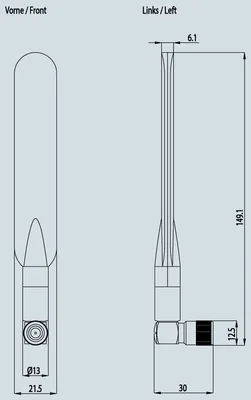

design, dimensions and weights

width35 mm

height160 mm

depth13 mm

net weight29 g

mast mountingNo

wall mountingNo

roof mountingNo

directly on the deviceYes

product features, product functions, product components / general

product feature / silicon-freeYes

standards, specifications, approvals

RoHS conformityYes

product conformityUL 94-HB

Accessories 1

Genuine accessories that can be used with the Siemens 6GK5795-4MA00-0AA3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
