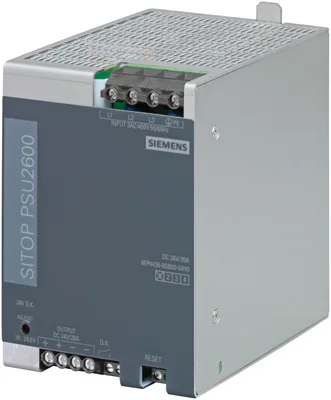

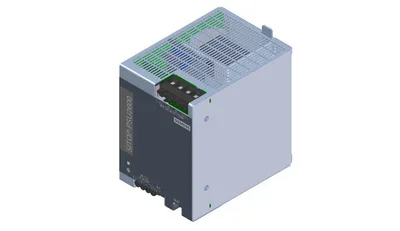

Siemens 6EP4436-0SB00-0AY0

SITOP PSU2600 24 V/20 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/20 A

SiemensMFR # 6EP4436-0SB00-0AY0SKU # YLSP6P8YTG8SQSQ

product brand nameSITOP

product type designationPSU2600

type of current supply24 V/20 A

type of the power supply network3-phase AC

phase number3

voltage curve at inputAC

Have questions?Chat on WhatsApp

About This Product

SITOP PSU2600 24 V/20 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/20 A

Siemens 6EP4436-0SB00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU2600

type of current supply24 V/20 A

input

type of the power supply network3-phase AC

phase number3

voltage curve at inputAC

minimum rated value400 V

maximum rated value500 V

initial value340 V

full-scale value575 V

at 50 Hz400 V

at 60 Hz500 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputYes

buffering time for rated value of the output current in the event of power failure minimum15 ms

operating condition of the mains bufferingat Vin = 400 V

at rated input voltage 400 V1.2 A

at rated input voltage 500 V1 A

current limitation of inrush current at 25 °C maximum16 A

I2t value maximum0.8 A²·s

fuse protection typenone

fuse protection type in the feederRequired: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A), 3RV2021-1HA (setting 8 A) or 3RV2711-1DD10 (UL 489)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage24 ... 28.8 V; max. 480 W

relative overall tolerance of the voltage2 %

on slow fluctuation of input voltage1 %

on slow fluctuation of ohm loading0.2 %

maximum50 mV

maximum200 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"

behavior of the output voltage when switching onNo overshoot of Vout (soft start)

response delay maximum2.5 s

maximum500 ms

rated value20 A

rated range0 ... 20 A; +60 °C

supplied active power typical480 W

at short-circuit during operation typical60 A

at short-circuit during operation25 ms

on short-circuiting during the start-up typical23 A

bridging of equipmentYes

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent93 %

at rated output voltage for rated value of the output current typical36 W

during no-load operation maximum4 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical2 %

load step 50 to 100% typical0.2 ms

load step 100 to 50% typical0.2 ms

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3 %

load step 10 to 90% typical0.2 ms

load step 90 to 10% typical0.2 ms

maximum10 ms

protection and monitoring

design of the overvoltage protection< 32 V

property of the output short-circuit proofYes

design of short-circuit protectionConstant current characteristic approx. 23 A

typical23 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV

operating resource protection classClass I

maximum3.5 mA

typical1.7 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

EAC approvalYes

NEC Class 2No

BISYes; R-41183539

CB-certificateYes

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Lloyds Register of Shipping (LRS)No

ambient conditions

during operation0 ... 60 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

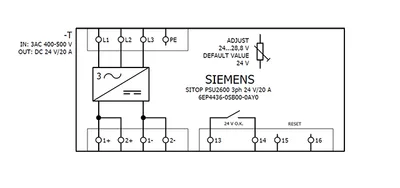

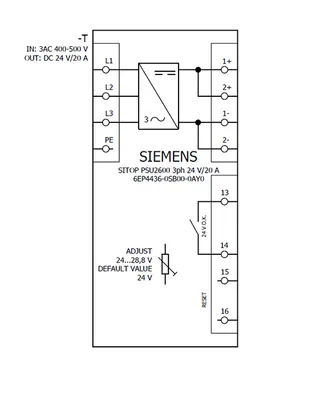

connection method

type of electrical connectionscrew terminal

at inputL1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.2 ... 4 mm²

for auxiliary contactsSignal and remote: 1 screw terminal each for 0.14 ... 1.5 mm²

mechanical data

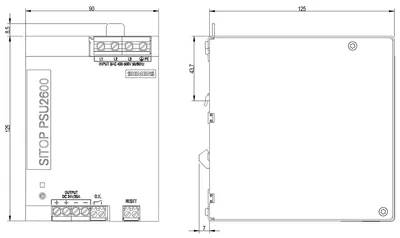

width × height × depth of the enclosure90 × 125 × 125 mm

installation width × mounting height90 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight1.3 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Accessories 4

Genuine accessories that can be used with the Siemens 6EP4436-0SB00-0AY0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6EP1961-2BA31	Aksesuar · Selectivity module
6EP1961-2BA51	Aksesuar · Selectivity module
6EP1964-2BA00	Aksesuar · Redundancy module · #NO_DATA#
6EP4438-7FB00-3DX0	Aksesuar · Selectivity module
