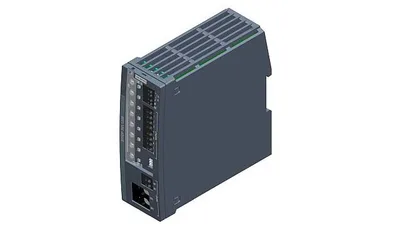

Siemens 6EP4438-7FB00-3DX0

SITOP SEL1200 selectivity module 8-channel switching characteristic input: 24 V DC/60 A output: 24 V DC/8 x 10 A threshold adjustable 2-10 A with monitoring interface

SiemensMFR # 6EP4438-7FB00-3DX0SKU # YLSM4KOHOHRD7DY

product brand nameSITOP

product type designationSEL1200

product designationSITOP Selectivity module

type of the power supply networkControlled DC voltage

supply voltage at DC rated value24 V

input voltage at DC20.4 ... 30 V

Have questions?Chat on WhatsApp

About This Product

SITOP SEL1200 selectivity module 8-channel switching characteristic input: 24 V DC/60 A output: 24 V DC/8 x 10 A threshold adjustable 2-10 A with monitoring interface

Siemens 6EP4438-7FB00-3DX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationSEL1200

product designationSITOP Selectivity module

type of current supplyselectivity module, 8 x 2 ... 10 A com. sign. contact or diagnostics monitor

input

type of the power supply networkControlled DC voltage

supply voltage at DC rated value24 V

input voltage at DC20.4 ... 30 V

overvoltage overload capability35 V

input current at rated input voltage 24 V rated value60 A

output

voltage curve at outputcontrolled DC voltage

formula for output voltageVin - approx. 0.2 V

relative overall tolerance of the voltage noteIn accordance with the supplying input voltage

number of outputs8

output current up to 60 °C per output rated value10 A; +60 ... +70 °C: Derating 2%/K

adjustable current response value current of the current-dependent overload release2 ... 10 A

type of response value settingvia potentiometer

response delay maximum5 s

product feature parallel switching of outputsYes

type of outputs connectionswitch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 200 ms, 500 ms, or "load-optimized" via DIP switch configurable for sequential switch-on

efficiency

efficiency in percent98 %

power loss [W] at rated output voltage for rated value of the output current typical18 W

switch-off characteristic

of the excess currentIout > 2.0 x set value, switch-off after approx. 30 ms, Iout > 1.8 x set value, switch-off after approx. 0.1 s, Iout > 1.5 x set value, switch-off after approx. 1 s, Iout > 1.0 x set value, switch-off after approx. 5 s

of the immediate switch-offIout > set value and Vin < 20 V, switch-off after approx. 8 ms

design of the reset device/resetting mechanismvia sensor per output

remote reset functionnon-isolated 24 V input (signal level "high" at > 15 V)

protection and monitoring

fuse protection type at input16 A per output (not accessible)

display version for normal operationThree-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"

design of the switching contact for signaling functionFloating common signal contact or status signal output (pulse/pause signal that can be evaluated via SIMATIC function block)

safety

galvanic isolation between input and output at switch-offNo

standard for safetyaccording to EN 62368-1

operating resource protection classClass III

protection class IPIP20

for emitted interferenceEN 61000-6-3

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 No. 107.1) File E197259

UKCA markingYes

EAC approvalYes
