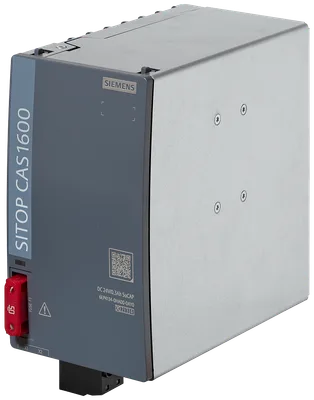

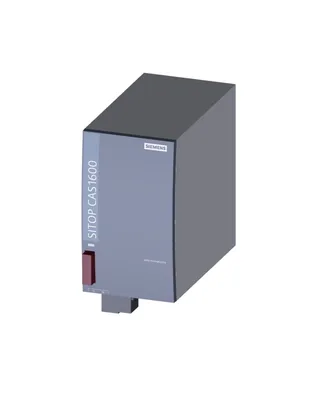

Siemens 6EP4134-0HA00-0AY0

SITOP CAS1600 0.3 Ah 24 V DC 0.3 Ah SuCAP capacitor module with maintenance- free sealed supercapacitors for SITOP UPS1600

SiemensMFR # 6EP4134-0HA00-0AY0SKU # YLSZ2ANLSJFZXXT

product brand nameSITOP

product type designationCAS1600

product designationCapacitor module 0.3 Ah SuCap

type of batterymaintenance-free supercapacitors

product versionexpansion/capacity module

at -10 °C recommended28.8 V

Have questions?Chat on WhatsApp

About This Product

SITOP CAS1600 0.3 Ah 24 V DC 0.3 Ah SuCAP capacitor module with maintenance- free sealed supercapacitors for SITOP UPS1600

Siemens 6EP4134-0HA00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationCAS1600

product designationCapacitor module 0.3 Ah SuCap

type of batterymaintenance-free supercapacitors

product versionexpansion/capacity module

electrical data

at -10 °C recommended28.8 V

at 0 °C recommended28.8 V

at 10 °C recommended28.8 V

at 20 °C recommended28.8 V

at 30 °C recommended28.8 V

at 40 °C recommended28.8 V

at 50 °C recommended28.8 V

at 60 °C recommended28.8 V

output

battery capacity0.3 A·h

output current rated value40 A

output current in buffering mode maximum40 A

peak current120 A; 1x 120 A for 30 ms/1x 60 A for 2 s per minute

charging current maximum40 A

output voltage at DC rated value24 V

design of the mains power cut bridging-connection5 s/40 A

number of parallel-switched equipment resources for increasing the power4

interfaces

communication functionYes

protection and monitoring

design of short-circuit protection50A / 32V Maxi flat fuse

display version for normal operationThree-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible

safety

operating resource protection classClass III

protection class IPIP20

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus (UL 61010-1 3rd Ed., UL 61010-2-201 2nd Ed.), File E143289

UKCA markingYes

EAC approvalNo

Regulatory Compliance Mark (RCM)Yes

type of certification CB-certificateYes

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

CCC for hazardous zone according to GB standardNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)in preparation

Det Norske Veritas (DNV)in preparation

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total49.1 kg

during manufacturing33.3 kg

during operation14.3 kg

after end of life0.62 kg

ambient conditions

during operation-40 ... +60 °C

during transport-40 ... +70 °C

during storage-40 ... +70 °C

relative temporary capacity loss at 20 °C in a month typical1.5 %

installation altitude at height above sea level maximum4 000 m

service life

typicalReduction of capacity to 80% of the original capacity (according to EUROBAT) - Attention: 80% capacity does not mean 80% of the buffer time; the buffer time is even shorter due to the increase in internal resistance at the end of life

at 10 °C typical15 a

at 20 °C typical15 a

at 30 °C typical8 a

at 40 °C typical4 a

at 50 °C typical2 a

at 60 °C typical1 a

noteSuCAPs do not need to be charged during storage - recharging is not required

connection method

type of electrical connectionscrew terminal

for UPS module1 screw terminal each for 0.5 ... 16 mm² for + CAS and - CAS

for control circuit and status message1 screw terminal each for 0.2 ... 2.5 mm²

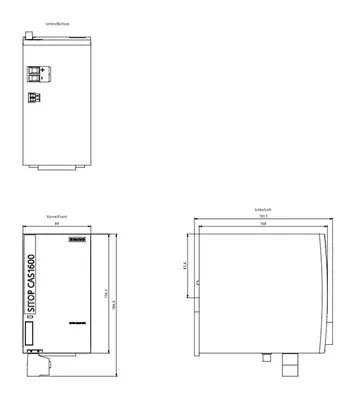

mechanical data
