How can I get a price quote for Siemens 6EP4135-0GE00-0AY0?

You can request a fast quote for Siemens 6EP4135-0GE00-0AY0 from Yılsa Engineering. Reference part number YLSZTLV8PDI7RS3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP4135-0GE00-0AY0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP4135-0GE00-0AY0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP4135-0GE00-0AY0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

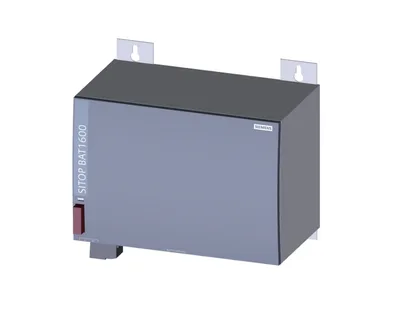

Siemens 6EP4135-0GE00-0AY0

SITOP BAT1600 24 V DC 12 Ah Pb battery module with maintenance- fee closed lead-acid battery for SITOP UPS1600

SiemensMFR # 6EP4135-0GE00-0AY0SKU # YLSZTLV8PDI7RS3

product brand nameSITOP

product type designationBAT1600

product designation12 Ah Pb

type of batterymaintenance-free lead-acid batteries

product versionExtension module/battery module

at -10 °C recommended28 V

Have questions?Chat on WhatsApp

About This Product

SITOP BAT1600 24 V DC 12 Ah Pb battery module with maintenance- fee closed lead-acid battery for SITOP UPS1600

Siemens 6EP4135-0GE00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationBAT1600

product designation12 Ah Pb

type of batterymaintenance-free lead-acid batteries

product versionExtension module/battery module

electrical data

at -10 °C recommended28 V

at 0 °C recommended28 V

at 10 °C recommended27.8 V

at 20 °C recommended27.3 V

at 30 °C recommended26.8 V

at 40 °C recommended26.6 V

at 50 °C recommended26.3 V

output

battery capacity12 A·h

output current rated value40 A

output current in buffering mode maximum40 A

peak current120 A; for 30 ms

charging current maximum3 A

output voltage at DC rated value24 V

interfaces

communication functionYes

protection and monitoring

design of short-circuit protection50A / 32V Maxi flat fuse

design of the overload protectionValve control

display version for normal operationThree-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible

safety

operating resource protection classClass III

protection class IPIP20

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 61010-1, UL61010-2-201 , CSA C22.2 No. 61010-1, CSA C22.2 NO 61010-2-201), File E143289

UKCA markingYes

type of certification CB-certificateYes

standards, specifications, approvals hazardous environments

ATEXNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

Det Norske Veritas (DNV)in preparation

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total40.18 kg

during manufacturing22.2 kg

during operation14 kg

after end of life1.17 kg

ambient conditions

ambient conditionFor storage, mounting and operation of lead-acid batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be at least 50 cm away.

during operation-15 ... +50 °C

during transport-20 ... +50 °C

during storage-20 ... +40 °C

relative temporary capacity loss at 20 °C in a month typical3 %

service life

typicalcapacity falls to 80 % of original capacity (according to EUROBAT)

at 20 °C typical4 a

at 30 °C typical2 a

at 40 °C typical1 a

at 50 °C typical0.5 a

noteAlong with the storage and operating temperature, other factors such as the duration of the storage period and the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, and within the temperature range 0 to +20 °C.

connection method

type of electrical connectionscrew terminal

for UPS module1 screw terminal each for 0.5 ... 16 mm² for + BAT and - BAT

for control circuit and status message1 screw terminal each for 0.2 ... 2.5 mm²

mechanical data

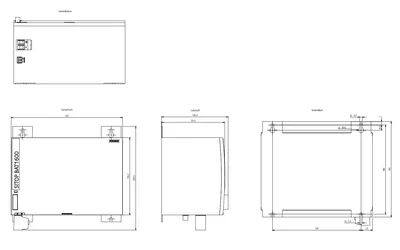

width × height × depth of the enclosure225 × 156 × 138 mm

installation width × mounting height225 mm × 256 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodWall mounting
