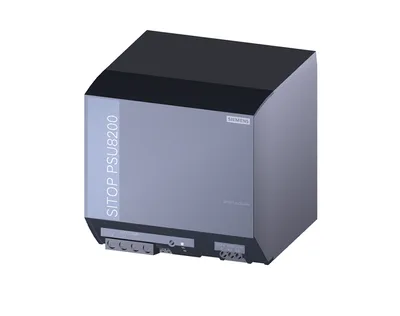

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6EP3337-8SC00-0AY0

SITOP PSU8200 EX 24 V/40 A Stabilized power supply input: 120/230 V AC output: 24 V DC/40 A

SiemensMFR # 6EP3337-8SC00-0AY0SKU # YLSWJNHF11BLKY

product brand nameSITOP

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/40 A

type of the power supply network1-phase and 2-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP PSU8200 EX 24 V/40 A Stabilized power supply input: 120/230 V AC output: 24 V DC/40 A

Siemens 6EP3337-8SC00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/40 A

input

type of the power supply network1-phase and 2-phase AC

phase number1

voltage curve at inputAC

supply voltage at ACAutomatic selection; startup starting from Ue ≥ 90/180 V

supply voltage120 V/230 V

input voltage 1 at AC85 ... 132 V

input voltage 2 at AC170 ... 264 V

at 50 Hz230 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency45 ... 65 Hz

wide range inputNo

buffering time for rated value of the output current in the event of power failure minimum25 ms

operating condition of the mains bufferingat Vin = 230 V

at rated input voltage 120 V15 A

at rated input voltage 230 V9 A

current limitation of inrush current at 25 °C maximum50 A

I2t value maximum8 A²·s

fuse protection typeYes

fuse protection type in the feederRecommended miniature circuit breaker at 1-phase operation: 16 A characteristic C; required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2421-4BA10 (120 V) or 3RV2411-1JA10 (230 V)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage24 ... 28 V; max. 960 W

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.1 %

maximum100 mV

typical50 mV

maximum240 mV

typical220 mV

display version for normal operationGreen LED for 24 V OK; LED yellow for overload; LED red for short-circuit or latching shutdown

type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"

behavior of the output voltage when switching onOvershoot of Vout approx. 3 %

response delay maximum1.5 s

typical30 ms

rated value40 A

rated range0 ... 40 A; +60 ... +70 °C: Derating 3%/K

supplied active power typical960 W

on short-circuiting during the start-up typical120 A

at short-circuit during operation typical120 A

on short-circuiting during the start-up25 ms

at short-circuit during operation25 ms

on short-circuiting during the start-up typical60 A

bridging of equipmentNo

efficiency

efficiency in percent92 %

at rated output voltage for rated value of the output current typical82 W

during no-load operation maximum6.8 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical1.9 %

load step 50 to 100% typical2 ms

load step 100 to 50% typical2 ms

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3.8 %

load step 10 to 90% typical1 ms

load step 90 to 10% typical1 ms

maximum1 ms

protection and monitoring

design of the overvoltage protection< 32 V

property of the output short-circuit proofYes

design of short-circuit protectionAlternatively, constant current characteristic approx. 41 A or latching shutdown

typical41 A

in normal operation250% Iout rated up to 25 ms, 150% Iout rated up to 5 s/min

typical41 A

display version for overload and short circuitLED yellow for "overload", LED red for "latching shutdown" or "short-circuit"

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum0.1 mA

typical0.1 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitation-

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

UKCA markingYes

Regulatory Compliance Mark (RCM)Yes

NEC Class 2No

BISYes; R-41183539

CB-certificateYes

MTBF at 40 °C838 156 h

standards, specifications, approvals hazardous environments

IECExYes; IECEx Ex ec nC IIC T3 Gc

ATEXYes; ATEX (EX) II 3G Ex ec nC IIC T3 Gc

ULhazloc approvalYes

UKEXYes

CCC for hazardous zone according to GB standardYes

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total2 152.1 kg

during manufacturing74.1 kg

during operation2 076.5 kg

after end of life0.62 kg

ambient conditions

during operation-25 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.5 ... 10 mm²

for auxiliary contacts13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²

mechanical data

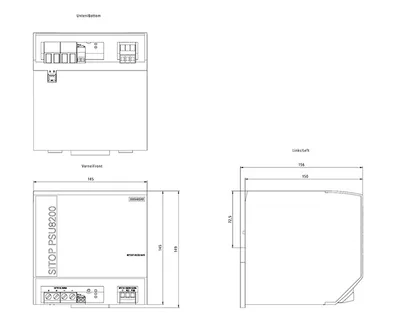

width × height × depth of the enclosure145 × 145 × 150 mm

installation width × mounting height150 mm × 225 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight3.1 kg

accessories

electrical accessoriesBuffer module, redundancy module

mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing74.1 kg

global warming potential [CO2 eq] / during operation2076.5 kg

global warming potential [CO2 eq] / after end of life0.62 kg

global warming potential [CO2 eq] / total2152.1 kg
