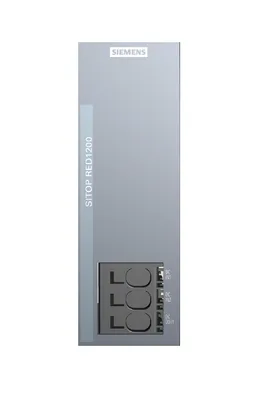

Siemens 6EP4347-7RC00-0AX0

SITOP RED1200 redundancy module EX input/output: 24/48V DC/40 A Suitable for decoupling two SITOP power supplies with maximal per 20 A output current

SiemensMFR # 6EP4347-7RC00-0AX0SKU # YLSWD53T0R8BSP

product brand nameSITOP

product type designationRED1200

product designationRedundancy module

type of the power supply networkDC voltage

voltage curve at inputDC

supply voltage at DC12 ... 48 V

Have questions?Chat on WhatsApp

About This Product

SITOP RED1200 redundancy module EX input/output: 24/48V DC/40 A Suitable for decoupling two SITOP power supplies with maximal per 20 A output current

Siemens 6EP4347-7RC00-0AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationRED1200

product designationRedundancy module

input

type of the power supply networkDC voltage

voltage curve at inputDC

supply voltage at DC12 ... 48 V

input voltage at DC10 ... 58 V

output

voltage curve at outputControlled DC voltage

number of outputs1

output voltage at DC rated value24 V

formula for output voltageVin - approx. 0.6 V

at output 1 at DC rated value24 V

at output 1 at DC12 ... 48 V

output voltage adjustableNo

rated value40 A

bridging of equipmentNo

efficiency

efficiency in percent97.5 %

at rated output voltage for rated value of the output current typical25 W

during no-load operation maximum0.1 W

safety

galvanic isolation between input and outputNo

operating resource protection classClass III

protection class IPIP20

EMC

for emitted interferenceEN 61000-6-3

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

UKCA markingYes

NEC Class 2No

CB-certificateYes

MTBF at 40 °C6 100 000 h

standards, specifications, approvals hazardous environments

IECExYes; IECEx Ex ec IIC T4 Gc

ATEXYes; ATEX (EX) II 3G Ex ec IIC T4 Gc

ULhazloc approvalYes

UKEXYes

CCC for hazardous zone according to GB standardYes

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No; in preparation

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total707.9 kg

during manufacturing22.3 kg

during operation685 kg

after end of life0.52 kg

ambient conditions

during operation-40 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionpush-in terminals

at inputIn1, In2: each for 0.75 ... 16 mm²

at outputOut1: 0.75 ... 16 mm²

mechanical data

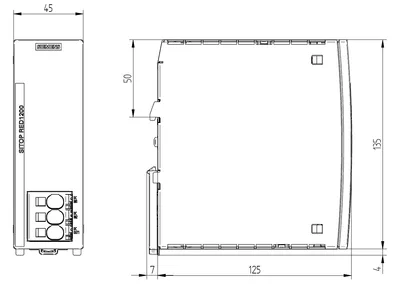

width × height × depth of the enclosure45 × 135 × 125 mm

installation width × mounting height45 mm × 225 mm

top45 mm

bottom45 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.51 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing22.3 kg

global warming potential [CO2 eq] / during operation685 kg

global warming potential [CO2 eq] / after end of life0.52 kg

global warming potential [CO2 eq] / total707.9 kg
