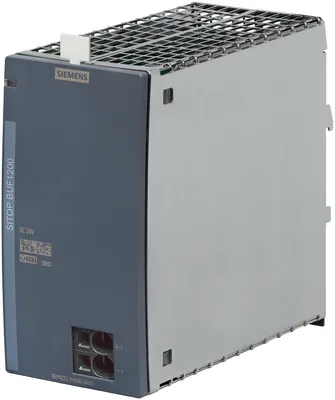

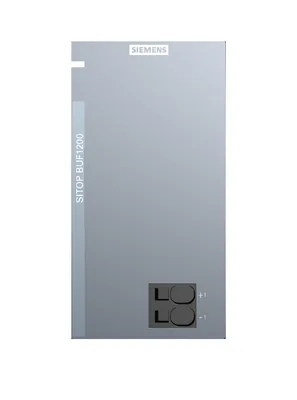

Siemens 6EP4231-7HC00-0AX0
SITOP BUF1200 buffer module Buffer time 300 ms at 40 A buffer time dependent on load current 24V DC input
product brand nameSITOP
product type designationBUF1200
type of current supply300 ms/40 A
voltage curve at inputDC
supply voltage at DC rated value24 V
supply voltage at DC24 ... 28 V
About This Product
SITOP BUF1200 buffer module Buffer time 300 ms at 40 A buffer time dependent on load current 24V DC input
Siemens 6EP4231-7HC00-0AX0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
product brand nameSITOP
product type designationBUF1200
type of current supply300 ms/40 A
input
voltage curve at inputDC
supply voltage at DC rated value24 V
supply voltage at DC24 ... 28 V
input voltage at DC20 ... 30 V
memory
design of the mains power cut bridging-connectionModule for buffering during short power interruptions; parallel connection at the output of 24 V power supplies. Buffer time of 300 ms at 40 A up to 2.4 s at 5 A load current; multiplication possible by parallel connection
buffering time in the event of power failure0.3 min
output
rated value40 A
protection and monitoring
for normal operationLED green for "buffer standby exist"
interfaces
product component PC interfaceNo
product function communication functionNo
design of the interfacewithout
safety
galvanic isolation between input and outputYes
operating resource protection classClass III
protection class IPIP20
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
UKCA markingYes
type of certification CB-certificateYes
standards, specifications, approvals hazardous environments
IECExYes; IECEx Ex ec IIC T4 Gc
ATEXYes; ATEX (Ex) II 3G Ex ec IIC T4 Gc
ULhazloc approvalYes
CCC for hazardous zone according to GB standardYes
standards, specifications, approvals marine classification
shipbuilding approvalNo
American Bureau of Shipping Europe Ltd. (ABS)No
Det Norske Veritas (DNV)No; in preparation
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationYes
total68.9 kg
during manufacturing19 kg
during operation49.1 kg
after end of life0.36 kg
ambient conditions
during operation-40 ... +70 °C; with natural convection
during transport-40 ... +85 °C
during storage-40 ... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation
connection method
type of electrical connectionpush-in terminals
at input+: push-in for 0.75 ... 16 mm²
at output-: push-in for 0.5 ... 6 mm²
mechanical data

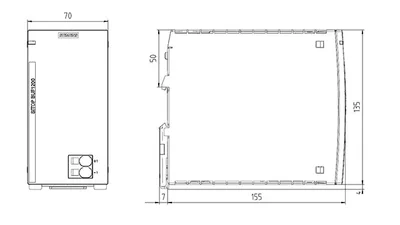

width × height × depth of the enclosure70 × 135 × 155 mm
installation width × mounting height70 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingYes
S7 rail mountingNo
wall mountingNo
housing can be lined upYes
net weight1.2 kg
additional information
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
