How can I get a price quote for Siemens 6EP3334-8SB00-0AY0?

You can request a fast quote for Siemens 6EP3334-8SB00-0AY0 from Yılsa Engineering. Reference part number CEY-937FC77F3CFC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP3334-8SB00-0AY0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP3334-8SB00-0AY0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP3334-8SB00-0AY0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

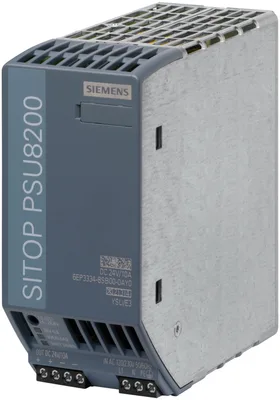

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

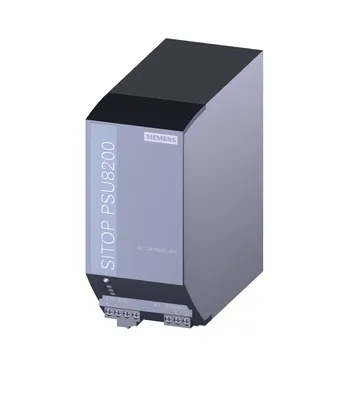

Siemens 6EP3334-8SB00-0AY0

SITOP PSU8200 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V DC/10 A

SiemensMFR # 6EP3334-8SB00-0AY0SKU # CEY-937FC77F3CFC

product brand nameSITOP

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/10 A

type of the power supply network1-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP PSU8200 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V DC/10 A

Siemens 6EP3334-8SB00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/10 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

supply voltage at ACAutomatic range selection

supply voltage120 V/230 V

input voltage 1 at AC85 ... 132 V

input voltage 2 at AC170 ... 264 V

at 50 Hz230 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputNo

buffering time for rated value of the output current in the event of power failure minimum35 ms

operating condition of the mains bufferingat Vin = 120/230 V

at rated input voltage 120 V4 A

at rated input voltage 230 V1.9 A

current limitation of inrush current at 25 °C maximum10 A

I2t value maximum0.3 A²·s

fuse protection typeT 6.3 A (not accessible)

fuse protection type in the feederRecommended miniature circuit breaker at 1-phase operation: from 6 A (10 A) characteristic C (B); required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2011-1EA10 (setting 3.8 A) or 3RV2711-1ED10 (UL 489) at 230 V; 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) at 400/500 V

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage24 ... 28.8 V; max. 240 W

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.3 %

maximum50 mV

maximum200 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"

behavior of the output voltage when switching onOvershoot of Vout approx. 3 %

response delay maximum1.5 s

typical70 ms

rated value10 A

rated range0 ... 10 A; +60 ... +70 °C: Derating 2%/K; as of Ua>24 V: 4% [Ia]/V [Ua]; at Ue<100 V/<200 V: 80% Ia rated

supplied active power typical240 W

at short-circuit during operation typical30 A

at short-circuit during operation25 ms

on short-circuiting during the start-up typical12 A

bridging of equipmentYes; switchable characteristic

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent94 %

at rated output voltage for rated value of the output current typical18 W

during no-load operation maximum1.5 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical4 %

load step 50 to 100% typical0.25 ms

load step 100 to 50% typical0.5 ms

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical4 %

load step 10 to 90% typical0.25 ms

load step 90 to 10% typical0.5 ms

maximum1 ms

protection and monitoring

design of the overvoltage protection< 33 V

property of the output short-circuit proofYes

design of short-circuit protectionAlternatively, constant current characteristic approx. 12 A or latching shutdown

typical12 A

in normal operationoverload capability 150 % Iout rated up to 5 s/min

typical12 A

display version for overload and short circuitLED yellow for "overload", LED red for "latching shutdown"

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

typical1 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

EAC approvalYes

Regulatory Compliance Mark (RCM)Yes

NEC Class 2No

SEMI F47Yes

BISYes; R-41183539

CB-certificateYes

MTBF at 40 °C1 292 102 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)No

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total480.2 kg

during manufacturing23.9 kg

during operation455.8 kg

after end of life0.2 kg

ambient conditions

during operation-25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

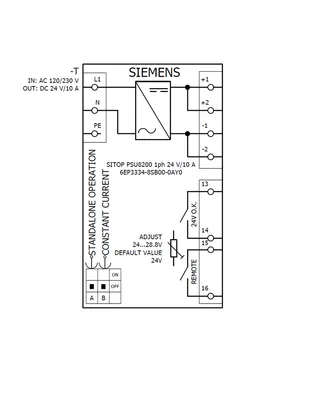

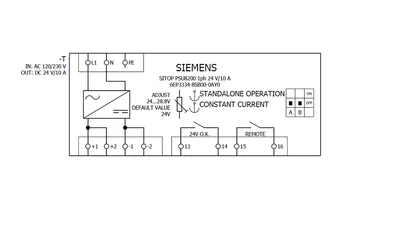

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.2 ... 2.5 mm²

for auxiliary contacts13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²; 15, 16 (Remote): 1 screw terminal each for 0.14 ... 1.5 mm²

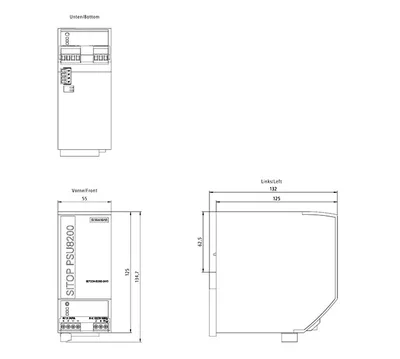

mechanical data

width × height × depth of the enclosure55 × 125 × 125 mm

installation width × mounting height55 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight1 kg

accessories

electrical accessoriesBuffer module

mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing23.9 kg

global warming potential [CO2 eq] / during operation455.8 kg

global warming potential [CO2 eq] / after end of life0.2 kg

global warming potential [CO2 eq] / total480.2 kg

Accessories 9

Genuine accessories that can be used with the Siemens 6EP3334-8SB00-0AY0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6EP4438-7FC00-3DX0	Aksesuar · Selectivity module
6EP4438-7EC00-3DX0	Aksesuar · Selectivity module
6EP4136-3AC00-0AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP1933-2EC51-8AA0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4231-7HC00-0AX0	Aksesuar · Buffer module · #NO_DATA#
6EP4347-7RC00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
6ES7193-6LF30-0AW0	Aksesuar · label
6EP1935-5PG01-8AA0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4136-3AC00-2AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
