How can I get a price quote for Siemens 6EP3333-6SC00-0AY0?

You can request a fast quote for Siemens 6EP3333-6SC00-0AY0 from Yılsa Engineering. Reference part number YLSYGEAT9J6SNO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP3333-6SC00-0AY0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP3333-6SC00-0AY0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP3333-6SC00-0AY0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

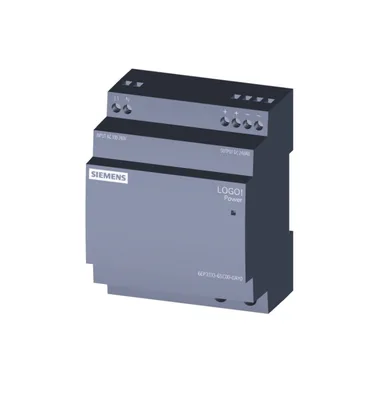

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6EP3333-6SC00-0AY0

LOGO!POWER EX 24 V / 4 A Stabilized power supply input: 100-240 V AC output: 24 V DC / 4 A

SiemensMFR # 6EP3333-6SC00-0AY0SKU # YLSYGEAT9J6SNO

product brand nameLOGO!Power

product type designationLOGO!Power

product designationPower supply LOGO!Power

type of current supply24 V/4 A

type of the power supply network1-phase AC or DC

phase number1

Have questions?Chat on WhatsApp

About This Product

LOGO!POWER EX 24 V / 4 A Stabilized power supply input: 100-240 V AC output: 24 V DC / 4 A

Siemens 6EP3333-6SC00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameLOGO!Power

product type designationLOGO!Power

product designationPower supply LOGO!Power

type of current supply24 V/4 A

input

type of the power supply network1-phase AC or DC

phase number1

voltage curve at inputAC/DC

minimum rated value100 V

maximum rated value240 V

initial value85 V

full-scale value264 V

input voltage at DC110 ... 300 V

at 50 Hz240 V

at 60 Hz100 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputYes

overvoltage overload capability300 V AC for 1 s

buffering time for rated value of the output current in the event of power failure minimum40 ms

operating condition of the mains bufferingat Vin = 187 V

at rated input voltage 120 V1.95 A

at rated input voltage 230 V0.97 A

current limitation of inrush current at 25 °C maximum31 A

I2t value maximum2.5 A²·s

fuse protection typeinternal

fuse protection type in the feederRecommended miniature circuit breaker: from 10 A characteristic B or from 6 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage22.2 ... 26.4 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.1 %

maximum200 mV

typical30 mV

maximum300 mV

typical50 mV

display version for normal operationGreen LED for output voltage OK

behavior of the output voltage when switching onNo overshoot of Vout (soft start)

response delay maximum0.5 s

typical100 ms

rated value4 A

rated range0 ... 4 A; +55 ... +70 °C: Derating 2%/K

supplied active power typical96 W

efficiency

efficiency in percent89.1 %

at rated output voltage for rated value of the output current typical11.7 W

during no-load operation maximum0.3 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.2 %

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical2 %

load step 10 to 90% typical1 ms

load step 90 to 10% typical1 ms

protection and monitoring

design of the overvoltage protection< 60 V

property of the output short-circuit proofYes

design of short-circuit protectionConstant current characteristic

typical5 A

when switching on150% Iout rated typ. 200 ms

in normal operationoverload capability 150% Iout rated typ. 200 ms

maximum5 A

measuring point for output currentYes; 50 mV =^ 4 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass II (without protective conductor)

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950-1, CSA C22.2 No. 60950-1) File E151273

UKCA markingYes

NEC Class 2No

CB-certificateYes

MTBF at 40 °C2 391 480 h

standards, specifications, approvals hazardous environments

IECExYes; IECEx Ex ec IIC T3 Gc

ATEXYes; ATEX (EX) II 3G Ex ec IIC T3 Gc

ULhazloc approvalYes

UKEXYes

CCC for hazardous zone according to GB standardYes

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)Yes

Det Norske Veritas (DNV)No; in preparation

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total326 kg

during manufacturing5.5 kg

during operation320 kg

after end of life0.2 kg

Siemens eco profile (SEP)Siemens EcoTech

ambient conditions

during operation-25 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded

at output+, -: 1 screw terminal each for 0.5 ... 2.5 mm²

for auxiliary contacts-

mechanical data

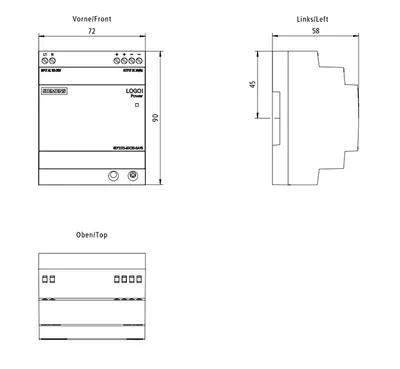

width × height × depth of the enclosure72 × 90 × 53 mm

installation width × mounting height72 mm × 130 mm

top20 mm

bottom20 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15, direct mounting in different mounting positions

DIN-rail mountingYes

S7 rail mountingNo

wall mountingYes

housing can be lined upYes

net weight0.29 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing5.5 kg

global warming potential [CO2 eq] / during operation320 kg

global warming potential [CO2 eq] / after end of life0.2 kg

global warming potential [CO2 eq] / total326 kg
