How can I get a price quote for Siemens 5SY8232-8BB08?

You can request a fast quote for Siemens 5SY8232-8BB08 from Yılsa Engineering. Reference part number CEY-8EF3B038937E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SY8232-8BB08 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SY8232-8BB08 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SY8232-8BB08?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

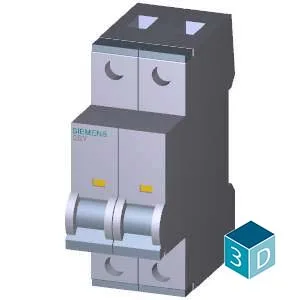

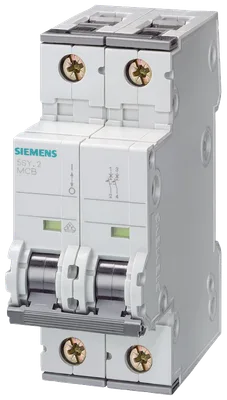

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 5SY8232-8BB08

Miniature circuit breaker 400 V 25kA, 2-pole, 32 A, D=70 mm only magnetic tripping

SiemensMFR # 5SY8232-8BB08SKU # CEY-8EF3B038937E

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productOnly magnetic tripping operation

number of poles2

design of pole2P

tripping characteristic classD

Have questions?Chat on WhatsApp

About This Product

Miniature circuit breaker 400 V 25kA, 2-pole, 32 A, D=70 mm only magnetic tripping

Siemens 5SY8232-8BB08

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productOnly magnetic tripping operation

General technical data

number of poles2

design of pole2P

tripping characteristic classD

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution3

Voltage

type of voltage of the operating voltageAC

with single-phase operation at AC rated value440 V

with multi-phase operation at AC rated value440 V

operational current at AC rated value32 A

Supply voltage

at AC400 V

value range of the supply voltage frequency50/60 Hz

operating voltage at DC rated value maximum72 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

according to IEC 60947-2 rated value30 kA

energy limitation class3

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole2.1 W

suitability for operationInfrastructure / Industry

Product details

product feature touch protectionYes

combined terminal topYes

combined terminal bottomYes

neutral conductor switchingNo

product feature properties for main switches in accordance with EN 60204-1Yes

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Product function

set values setting current (Ii) for I-tripping14

reference value setting current (Ii) for I-trippingx In

Short circuit

at AC according to UL 1077 and CSA C22.2 No.2355 kA

Connections

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum25 mm²

minimum18

maximum4

minimum22 lbf·in

maximum31 lbf·in

minimum2.5 N·m

maximum3.5 N·m

position of power supply cordAny

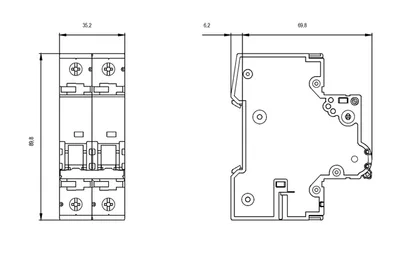

Mechanical Design

height90 mm

width36 mm

depth76 mm

installation depth70 mm

number of modular width units2

fastening methodDIN rail

mounting positionany

Net Weight322 g

Environmental conditions

influence of the surrounding temperaturemax. 95% RH up to 45°C

vibration resistance according to IEC 60068-2-6±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz

minimum-25 °C

maximum45 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Accessories 75

Genuine accessories that can be used with the Siemens 5SY8232-8BB08 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3803	Aksesuar
5ST3801	Aksesuar
5ST3010	Aksesuar
5ST3020	Aksesuar
5ST3062-0MC	Aksesuar
5ST3062	Aksesuar
5ST3030	Aksesuar
5ST3040	Aksesuar
5ST3071	Aksesuar
5SM2325-6KK01	Aksesuar
5SM2825-8	Aksesuar
5SM2725-6	Aksesuar
5SM2725-0	Aksesuar
5SM2625-8	Aksesuar
5SM2625-6	Aksesuar
5SM2625-2	Aksesuar
5SM2625-0	Aksesuar
5SM2425-6	Aksesuar
5SM2325-6	Aksesuar
5SM2622-6	Aksesuar
5SM2325-0	Aksesuar
5SM2822-8	Aksesuar
5SM2622-8	Aksesuar
5SM2622-2	Aksesuar
5SM2622-0	Aksesuar
5SM2322-6KK01	Aksesuar
5SM2322-6	Aksesuar
5SM2322-3	Aksesuar
5SM2322-0	Aksesuar
5SM2325-3	Aksesuar
5ST3061	Aksesuar
5ST3060	Aksesuar
5ST3800	Aksesuar
5TG8240	Aksesuar
8WH8210-0AA35	Aksesuar
8WH8210-0AA36	Aksesuar
5SW3004	Aksesuar
5SW3005	Aksesuar
5SW3006	Aksesuar
5SW3007	Aksesuar
5ST2134	Aksesuar
7LF9006	Aksesuar
8GB4561	Aksesuar
8GB4562	Aksesuar
8GB4563	Aksesuar
5ST3820-1	Aksesuar
5ST2135	Aksesuar
5ST2136	Aksesuar
8GB4564	Aksesuar
5ST3724	Seçmeli zorunlu ürün
5ST3751	Seçmeli zorunlu ürün
5ST3752	Seçmeli zorunlu ürün
5ST3735-1	Seçmeli zorunlu ürün
5ST3735	Seçmeli zorunlu ürün
5ST3705	Seçmeli zorunlu ürün
5ST3608	Seçmeli zorunlu ürün
5ST3704	Seçmeli zorunlu ürün
5ST3642	Seçmeli zorunlu ürün
5ST3786-0	Seçmeli zorunlu ürün
5ST3735-2	Seçmeli zorunlu ürün
5ST3610	Seçmeli zorunlu ürün
5ST3734	Seçmeli zorunlu ürün
5ST3611	Seçmeli zorunlu ürün
5ST3640	Seçmeli zorunlu ürün
5ST3641	Seçmeli zorunlu ürün
5ST3706	Seçmeli zorunlu ürün
5ST3707	Seçmeli zorunlu ürün
5ST3736	Seçmeli zorunlu ürün
5ST3737	Seçmeli zorunlu ürün
5ST3606	Seçmeli zorunlu ürün
5ST3607	Seçmeli zorunlu ürün
5ST3636	Seçmeli zorunlu ürün
5ST3637	Seçmeli zorunlu ürün
5ST3638	Seçmeli zorunlu ürün
5ST3612	Seçmeli zorunlu ürün
