How can I get a price quote for Festo HGWM-12-EZ-G8?

You can request a fast quote for Festo HGWM-12-EZ-G8 from Yılsa Engineering. Reference part number CEY-937FC78233DB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo HGWM-12-EZ-G8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo HGWM-12-EZ-G8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo HGWM-12-EZ-G8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

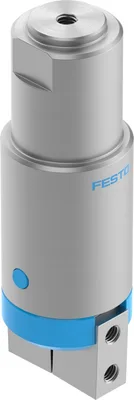

Festo HGWM-12-EZ-G8

Angle gripper. Micro gripper: compact, handy design. Versatile thanks to externally adaptable gripper fingers. Single-acting gripper, optionally with open (NO) or closed (NC) gripper jaws. Suitable for external and internal gripping. Mounting options with clamping flange, with flange mounting, with Z-stroke compensation

FestoMFR # HGWM-12-EZ-G8SKU # CEY-937FC78233DB

Size12

Max. angular gripper jaw backlash ax, ay0.5

Max. gripper jaw backlash Sz0.03

Max. opening angle14

Repetition accuracy, gripper0.02

Number of gripper jaws2

Have questions?Chat on WhatsApp

About This Product

Festo HGWM-12-EZ-G8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

Max. angular gripper jaw backlash ax, ay0.5

Max. gripper jaw backlash Sz0.03

Max. opening angle14

Repetition accuracy, gripper0.02

Number of gripper jaws2

Mode of operationSingle-acting, Closed

Gripper functionBracket

DesignWedge-shaped drive

Position detectionNone

Symbol00991898

Operating pressure2, 8

Max. operating frequency of gripper4

Min. opening time at 0.6 MPa (6 bar, 87 psi)1.7

Min. closing time at 0.6 MPa (6 bar, 87 psi)2.8

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature5, 60

Spring return moment0.015

Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening76

Mass moment of inertia215.4

Mass moment of inertia per external gripper finger560

Max. force on gripper jaw Fz static20

Max. torque at gripper Mx static0.4

Max. torque at gripper My static0.4

Max. torque at gripper Mz static0.4

Max. mass per external gripper finger1000

Product weight45

Type of mountingClamped

Pneumatic connectionM3

Material cover capPOM

Material housingHigh-alloy stainless steel

Material gripper jawsHigh-alloy steel

Accessories 15

Genuine accessories that can be used with the Festo HGWM-12-EZ-G8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GRLZ-M3	One-way flow control valve · Function fittings
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
GRLZ-M3-QS-3	One-way flow control valve · Function fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
QSM-M3-3-100	Push-in fitting · Fittings
QSM-M3-3	Push-in fitting · Fittings
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSML-M3-3	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLO-M3	Throttle valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
