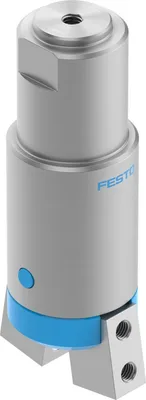

Festo HGWM-12-EO-G8

Angle gripper. Micro gripper: compact, handy design. Versatile thanks to externally adaptable gripper fingers. Single-acting gripper, optionally with open (NO) or closed (NC) gripper jaws. Suitable for external and internal gripping. Mounting options with clamping flange, with flange mounting, with Z-stroke compensation

FestoMFR # HGWM-12-EO-G8SKU # CEY-937FC78233DE

Size12

Max. angular gripper jaw backlash ax, ay0.5

Max. gripper jaw backlash Sz0.03

Max. opening angle18.5

Repetition accuracy, gripper0.02

Number of gripper jaws2

Have questions?Chat on WhatsApp

About This Product

Festo HGWM-12-EO-G8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

Max. angular gripper jaw backlash ax, ay0.5

Max. gripper jaw backlash Sz0.03

Max. opening angle18.5

Repetition accuracy, gripper0.02

Number of gripper jaws2

Mode of operationSingle-acting, Open

Gripper functionBracket

DesignWedge-shaped drive

Position detectionNone

Symbol00991897

Operating pressure2, 8

Max. operating frequency of gripper4

Min. opening time at 0.6 MPa (6 bar, 87 psi)3.7

Min. closing time at 0.6 MPa (6 bar, 87 psi)1.8

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature5, 60

Spring return moment0.013

Total gripper torque, closing, 0.6 MPa (6 bar, 87 psi)64

Mass moment of inertia215.4

Mass moment of inertia per external gripper finger560

Max. force on gripper jaw Fz static20

Max. torque at gripper Mx static0.4

Max. torque at gripper My static0.4

Max. torque at gripper Mz static0.4

Max. mass per external gripper finger1000

Product weight45

Type of mountingClamped

Pneumatic connectionM3

Material cover capPOM

Material housingHigh-alloy stainless steel

Material gripper jawsHigh-alloy steel

Accessories 15

Genuine accessories that can be used with the Festo HGWM-12-EO-G8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
QSM-M3-3-100	Push-in fitting · Fittings
GRLZ-M3	One-way flow control valve · Function fittings
GRLZ-M3-QS-3	One-way flow control valve · Function fittings
QSM-M3-3	Push-in fitting · Fittings
PUN-H-3X0,5-BL	Plastic tubing · Tubes
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSML-M3-3	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLO-M3	Throttle valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
