How can I get a price quote for FESTO HGRT-16-A?

You can request a fast quote for FESTO HGRT-16-A from Yılsa Engineering. Reference part number CEY-937FC781CDAF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO HGRT-16-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO HGRT-16-A genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO HGRT-16-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

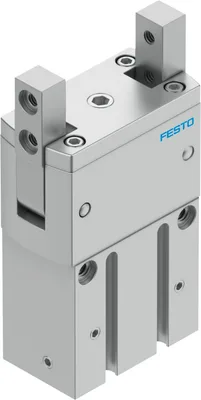

FESTO HGRT-16-A

Radial gripper. Sturdy and precise kinematics for very high torque resistance and long service life. Secure gripping thanks to precise, polished plain-bearing guide. Slotted guide. Optimum cycle times thanks to freely adjustable opening angle up to a maximum of 90° per gripper finger. This prevents possible collisions due to the gripper jaws opening too far. Can be used as a double- and single-acting gripper. Single-acting variant or with gripping force backup, normally closed (NC). Suitable for external and internal gripping. Wide range of adaptation options on the drives

FESTOMFR # HGRT-16-ASKU # CEY-937FC781CDAF

Size16

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.1

Max. opening angle180

Rotationally symmetrical0.2

Repetition accuracy, gripper0.02

Have questions?Chat on WhatsApp

About This Product

FESTO HGRT-16-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size16

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.1

Max. opening angle180

Rotationally symmetrical0.2

Repetition accuracy, gripper0.02

Number of gripper jaws2

Mounting positionAny

Mode of operationDouble-acting

Gripper functionRadial

DesignForce pilot operated motion sequence

Position detectionVia proximity switch, For inductive sensors

Symbol00991894

Operating pressure3, 8

Max. operating frequency of gripper3

Min. opening time at 0.6 MPa (6 bar, 87 psi)246

Min. closing time at 0.6 MPa (6 bar, 87 psi)293

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature5, 60

Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening188

Total gripper torque, closing, 0.6 MPa (6 bar, 87 psi)158

Mass moment of inertia0.191

Max. force on gripper jaw Fz static50

Max. torque at gripper My static3.9

Max. torque at gripper Mz static0.3

Lubrication interval for guide components10

Product weight130

Type of mountingVia female thread and centring sleeve

Pneumatic connectionM3

Note on materialsRoHS compliant

Material housingSmooth-anodised wrought aluminium alloy

Material gripper jawsHardened steel

Accessories 41

Genuine accessories that can be used with the FESTO HGRT-16-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-10G-PS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
SMT-10G-NS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
GRLA-M3-QS-3	One-way flow control valve · Function fittings
HGRT-HR-16	Stroke reduction · Mounting accessories
QSM-M3-3	Push-in fitting · Fittings
SMT-10G-PS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-10G-NS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
QSM-M3-3-I	Push-in fitting · Fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
PUN-H-3X0,5-BL	Plastic tubing · Tubes
QSML-M3-3	Push-in L-fitting · Fittings
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
ZBH-5-B	Centring sleeve · Mounting accessories
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3	Throttle valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
HAPG-71-B	Adapter kit · Mounting accessories
HAPG-72-B	Adapter kit · Mounting accessories
DHAA-G-Q5-16-B11-16	Adapter kit · Mounting accessories
DHAA-G-H4-16-B11-16	Adapter kit · Mounting accessories
DHAA-G-Q11-16-B11-16	Adapter kit · Mounting accessories
DHAA-G-Q11-12-B8-20	Adapter kit · Mounting accessories
DHAA-G-Q11-12-B8/B8G-16	Adapter kit · Mounting accessories
ZBH-5-M4	Centring sleeve · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
