How can I get a price quote for Festo HGPM-12-EO-G9?

You can request a fast quote for Festo HGPM-12-EO-G9 from Yılsa Engineering. Reference part number CEY-937FC7821557. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo HGPM-12-EO-G9 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo HGPM-12-EO-G9 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo HGPM-12-EO-G9?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

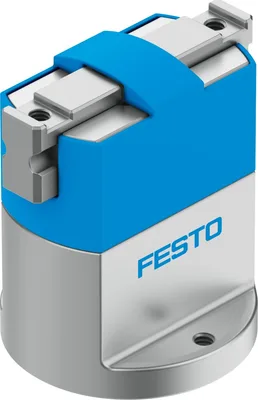

Festo HGPM-12-EO-G9

Parallel gripper. Micro gripper: compact, handy design. Versatile thanks to externally adaptable gripper fingers. Single-acting gripper, optionally with open (NO) or closed (NC) gripper jaws. Mounting options with clamping flange, with flange mounting, with Z-stroke compensation

FestoMFR # HGPM-12-EO-G9SKU # CEY-937FC7821557

Size12

Stroke per gripper jaws3

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.5

Max. gripper jaw backlash Sz0.03

Rotationally symmetrical0.15

Have questions?Chat on WhatsApp

About This Product

Festo HGPM-12-EO-G9

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

Stroke per gripper jaws3

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.5

Max. gripper jaw backlash Sz0.03

Rotationally symmetrical0.15

Repetition accuracy, gripper0.05

Number of gripper jaws2

Drive systemPneumatic

Mode of operationSingle-acting, Open

Gripper functionParallel

Gripper force back-upNone

DesignWedge-shaped drive

Position detectionNone

Symbol00991897

Operating pressure4, 8

Max. operating frequency of gripper4

Min. opening time at 0.6 MPa (6 bar, 87 psi)11

Min. closing time at 0.6 MPa (6 bar, 87 psi)3.7

Max. mass per external gripper finger15

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature5, 60

Total gripping force, opening, 0.6MPa (6bar, 87 psi)27

Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)13.5

Mass moment of inertia0.07939

Max. force on gripper jaw Fz static30

Max. torque at gripper Mx static0.5

Max. torque at gripper My static0.5

Max. torque at gripper Mz static0.5

Product weight62

Type of mountingWith female thread

Pneumatic connectionM3

Note on materialsRoHS compliant

Material cover capPOM

Material housingAnodised wrought aluminium alloy

Material gripper jawsHigh-alloy steel

Accessories 15

Genuine accessories that can be used with the Festo HGPM-12-EO-G9 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
PUN-H-3X0,5-NT	Plastic tubing · Tubes
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
GRLA-M3-QS-3	One-way flow control valve · Function fittings
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3	Throttle valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
