How can I get a price quote for FESTO HGPD-80-A-G2?

You can request a fast quote for FESTO HGPD-80-A-G2 from Yılsa Engineering. Reference part number CEY-937FC781BB52. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO HGPD-80-A-G2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO HGPD-80-A-G2 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO HGPD-80-A-G2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

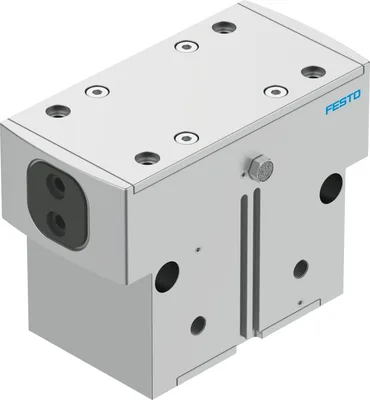

FESTO HGPD-80-A-G2

Parallel gripper. Ideal for very harsh environments. Precise gripping even at high torque load. Max. gripping force at optimum installation space/force ratio. 8 sizes with total stroke of up to 40. Can be used as a double- and single-acting gripper. Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC). Suitable for external and internal gripping

FESTOMFR # HGPD-80-A-G2SKU # CEY-937FC781BB52

Size80

Stroke per gripper jaws20

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.1

Max. gripper jaw backlash Sz0.02

Rotationally symmetrical0.2

Have questions?Chat on WhatsApp

About This Product

FESTO HGPD-80-A-G2

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size80

Stroke per gripper jaws20

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.1

Max. gripper jaw backlash Sz0.02

Rotationally symmetrical0.2

Repetition accuracy, gripper0.05

Number of gripper jaws2

Drive systemPneumatic

Mounting positionAny

Mode of operationDouble-acting

Gripper functionParallel

Gripper force back-upDuring closing

DesignWedge-shaped drive, Force pilot operated motion sequence

Position detectionVia proximity switch

Symbol00991895

Operating pressure4, 8

Operating pressure of blocked air0, 0.5

Max. operating frequency of gripper2

Min. opening time at 0.6 MPa (6 bar, 87 psi)379

Min. closing time at 0.6 MPa (6 bar, 87 psi)240

Max. mass per external gripper finger2170

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Degree of protectionIP65

Ambient temperature5, 60

Mass moment of inertia319.95

Max. torque at gripper Mx static170

Max. torque at gripper My static130

Max. torque at gripper Mz static110

Lubrication interval for guide components5

Product weight7484

Type of mountingEither:, Via female thread and centring sleeve, Via through-hole and centring sleeve, Via through-hole and dowel pin, Via female thread and dowel pin

Pneumatic connection, blocked airM5

Pneumatic connectionG1/4

Note on materialsRoHS compliant

Material cover capHigh-alloy stainless steel

Material housingAnodised aluminium

Material gripper jawsHardened steel

Accessories 34

Genuine accessories that can be used with the FESTO HGPD-80-A-G2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-12X2-NT	Plastic tubing · Tubes
ZBH-15	Centring sleeve · Mounting accessories
SMT-8G-NS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
PUN-H-12X2-BL	Plastic tubing · Tubes
BUB-HGPD-80	Gripper jaw blank · Mounting accessories
SMT-8G-NS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
PUN-H-12X2-SW	Plastic tubing · Tubes
DASI-B12-63-S8	Sensor bracket · Retainer for proximity sensor
PUN-H-12X2-TBL	Plastic tubing · Tubes
QS-G1/4-12	Push-in fitting · Fittings
QSL-G1/4-12	Push-in L-fitting · Fittings
GRLA-1/4-QS-10-D	One-way flow control valve · Function fittings
SMT-8G-PS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
SMT-8G-PS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SIEN-M8B-PS-K-L	Proximity sensor · Proximity sensor for mounting kit
SIEN-M8B-PS-S-L	Proximity sensor · Proximity sensor for mounting kit
ZBH-12-B	Centring sleeve · Mounting accessories
VFOE-LE-T-G14-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10-F1A	One-way flow control valve · Function fittings
B-1/4	Blanking plug · Other connectors
GRLA-1/4-B	One-way flow control valve · Function fittings
GRLA-1/4-PK-4-B	One-way flow control valve · Function fittings
GRLA-1/4-PK-6-B	One-way flow control valve · Function fittings
GRLA-1/4-QS-6-D	One-way flow control valve · Function fittings
GRLA-1/4-QS-8-D	One-way flow control valve · Function fittings
B-1/4-50	Blanking plug · Other connectors
VFOH-LE-A-G14-Q8	One-way flow control valve · Function fittings
VFOH-LE-A-G14-Q10	One-way flow control valve · Function fittings
B-1/4-F1A	Blanking plug · Other connectors
