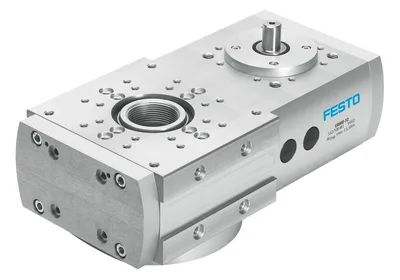

FESTO ERMB-32
Rotary module. Electromechanical rotary module with toothed belt. Compact design. Mounting interfaces on all sides. Stable output shaft bearings. Unlimited and flexible rotation angle. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Size32
DesignWith toothed belt
Mounting positionAny
Rotation angleInfinite
Gear unit ratio3:1
Repetition accuracy±0.03 °
About This Product
Rotary module. Electromechanical rotary module with toothed belt. Compact design. Mounting interfaces on all sides. Stable output shaft bearings. Unlimited and flexible rotation angle. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
FESTO ERMB-32
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size32
DesignWith toothed belt
Mounting positionAny
Rotation angleInfinite
Gear unit ratio3:1
Repetition accuracy±0.03 °
Position detectionFor inductive sensors
Permissible mass moment of inertia1
Product weight3250
Drive pinion diameter12
Toothed-belt pitch5
Max. drive output speed300
Max. drive input speed900
Max. output torque25.5
Max. drive torque8.5
Frictional torque independent of load0.5
Degree of protectionIP20
Sound pressure level53
Ambient temperature-10, 60
LABS (PWIS) conformityVDMA24364 zone III
Note on materialsRoHS compliant
Material housinganodised
Material drive shaftWrought aluminium alloy, anodised
Material drive shaftHigh-alloy stainless steel
Material coverWrought aluminium alloy, anodised
Material toothed beltPolychloroprene with glass fibre
Accessories 133
Genuine accessories that can be used with the FESTO ERMB-32 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| EAMM-A-D60-80P | Axial kit · Mounting accessories | |
| EAPS-R1-32-S-WH | Sensing kit · Retainer for proximity sensor | |
| EAPS-R1-32-S | Sensing kit · Retainer for proximity sensor | |
| EAMM-A-D60-87A | Axial kit · Mounting accessories | |
| SIEN-M8B-NO-S-L | Proximity sensor · Proximity sensors | |
| SIEN-M8B-PO-K-L | Proximity sensor · Proximity sensors | |
| SIEN-M8B-PO-S-L | Proximity sensor · Proximity sensors | |
| SIEN-M8B-NO-K-L | Proximity sensor · Proximity sensors | |
| EMMT-AS-80- | Servo motor · Motors | |
| EMMT-AS-100- | Servo motor · Motors | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| EAMM-A-D60-80G-S1-G2 | Axial kit · Mounting accessories | |
| EAMM-A-D60-82AA | Axial kit · Mounting accessories | |
| EAMM-A-D60-90R | Axial kit · Mounting accessories | |
| SIEN-M8B-PS-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PS-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| EMGA-60-P-G3-SST-57 | Gear unit · Mounting accessories | |
| EMGA-60-P-G5-SST-57 | Gear unit · Mounting accessories | |
| EAMC-42-50-12-19 | Coupling · Mounting accessories | |
| EAPS-R1-CK | Cam · Mounting kits for proximity sensors, other sensors | |
| DHAA-G-Q5-32-B8-50 | Adapter kit · Mounting accessories | |
| EMMT-AS-80-H-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RS | Servo motor · Electrical accessories | |
| EAMM-A-D60-60G-G2 | Axial kit · Mounting accessories | |
| DHAA-G-Q5-20-B13-35 | Adapter kit · Mounting accessories | |
| EMMT-AS-60- | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMB | Servo motor · Electrical accessories | |
| ZBH-9-B | Centring sleeve · Mounting accessories | |
| EMGA-60-P-G8-SST-57 | Gear unit · Mounting accessories | |
| EMGA-60-P-G12-SST-57 | Gear unit · Mounting accessories | |
| EMMT-AS-60-S-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RMYB | Servo motor · Electrical accessories |
