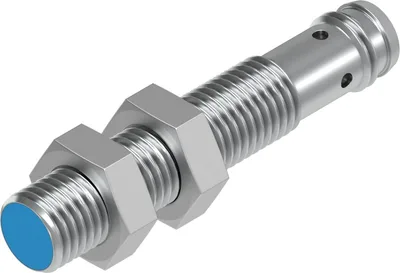

FESTO SIEN-M8B-NO-S-L

Proximity sensor. With standard switching distance. For DC voltage. Round design. Metric thread. Flush or non-flush mounting. LED switching status indication. Design with metal or polyamide housing

FESTOMFR # SIEN-M8B-NO-S-LSKU # CEY-937FC7825E28

Conforms to standardEN 60947-5-2

Symbol00991645

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Rated operating distance1.5

Assured operating distance1.21

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. With standard switching distance. For DC voltage. Round design. Metric thread. Flush or non-flush mounting. LED switching status indication. Design with metal or polyamide housing

FESTO SIEN-M8B-NO-S-L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 60947-5-2

Symbol00991645

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)

Note on materialsRoHS compliant

Rated operating distance1.5

Assured operating distance1.21

Reduction factorsAluminium = 0.25, Stainless steel St 18/8 = 0.7, Copper = 0.2, Brass = 0.35, Steel St 37 = 1.0

Ambient temperature-25, 70

Repetition accuracy with constant conditions0.07 mm

Switching outputNPN

Switching element functionN/C contact

Hysteresis0.07

Max. switching frequency5000

Max. output current200

Voltage drop2

Inductive protective circuitIntegrated

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Residual ripple± 10%

No-load supply current10

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

SizeM8x1

Type of mountingVia lock nut

Mounting typeFlush

Product weight18

Material housingHigh-alloy stainless steel, Chrome-plated

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 70

Degree of protectionIP65, IP67

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Additional information for sensor selectionWith standards-based switching distance

Electrical outputNPN

Selection of sensor designStandard

Accessories 14

Genuine accessories that can be used with the FESTO SIEN-M8B-NO-S-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
SMBK-8	Clip · Mounting accessories
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-5-N-LE3	Connecting cable · Connecting cables
