How can I get a price quote for Festo ELGA-TB-G-80- -?

You can request a fast quote for Festo ELGA-TB-G-80- - from Yılsa Engineering. Reference part number YLSPZJIOBOWQ8TD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ELGA-TB-G-80- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ELGA-TB-G-80- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ELGA-TB-G-80- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

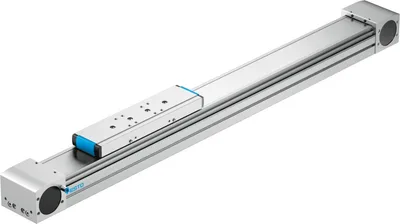

Festo ELGA-TB-G-80- -

Toothed belt axis. Integrated plain-bearing guide. For small and medium loads. Low guide backlash. Drive component for external guides. Speeds up to 5 m/s with high acceleration up to 50 m/s². Flexible motor mounting. Motor can be mounted on 4 sides. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # ELGA-TB-G-80- -SKU # YLSPZJIOBOWQ8TD

Effective diameter of drive pinion39.79

Working stroke50, 8500

Size80

Toothed-belt pitch5

Mounting positionAny

GuidePlain-bearing guide

Have questions?Chat on WhatsApp

About This Product

Festo ELGA-TB-G-80- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion39.79

Working stroke50, 8500

Size80

Toothed-belt pitch5

Mounting positionAny

GuidePlain-bearing guide

DesignElectromechanical linear axis, With toothed belt

Type of motorStepper motor, Servo motor

Symbol00991212

Max. acceleration50

Max. speed5

Repetition accuracy±0.08 mm

Duty cycle100%

LABS (PWIS) conformityVDMA24364 zone III

Degree of protectionIP40

Ambient temperature-10, 60

2nd moment of area Iy277000

2nd moment of area Iz907000

Max. drive torque16.9

Max. force Fy200

Max. force Fz800

Max. force Fy total axis200

Max. force Fz total axis800

Max. idle running transfer resistance50

Max. moment Mx10

Max. moment My60

Max. moment Mz20

Max. moment Mx total axis10

Max. moment My total axis60

Max. moment Mz total axis20

Max. feed force Fx800

Frictional torque independent of load1

Torsional mass moment of inertia It108000

Mass moment of inertia JH per metre of stroke0.093

Mass moment of inertia JL per kg of working load3.96

Mass moment of inertia JO6.66

Feed constant125

Reference service life5000

Weight of slide1100

Basic weight for 0 mm stroke4000

Additional weight per 10 mm stroke35.6

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Material profileAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material cover tapeStainless steel strip

Material drive coverAnodised wrought aluminium alloy

Material guide slidePOM

Material guide railAnodised wrought aluminium alloy

Material pulleysHigh-alloy stainless steel

Material slideAnodised wrought aluminium alloy

Material toothed belt clamping pieceCast stainless steel

Material toothed beltPolychloroprene with glass filament and nylon coating, Polyurethane with steel cord and nylon cover

Accessories 45

Genuine accessories that can be used with the Festo ELGA-TB-G-80- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
MUE-70/80	Profile mounting · Mounting accessories
SF-EGC-1-80	Switch lug · Position sensing
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
EMMT-AS-100-S-HS-RS	Servo motor · Motors
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
EMGA-60-P-G3-SST-57	Gear unit · Gear unit
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
EMMT-ST-57-M-RS	Stepper motor · Motors
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
EMGA-60-P-G5-SST-57	Gear unit · Gear unit
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
ZBH-9-B	Centring sleeve · Mounting accessories
GASA-MIE-CTR-12M-1	AX Industrial App · Digital services
GASA-MIE-CTR-12M-10	AX Industrial App · Digital services
GASA-MIE-CTR-12M-100	AX Industrial App · Digital services
GASA-MIE-CTR-12M-50	AX Industrial App · Digital services
EAMM-A-N48-60P	Axial kit · Mounting accessories
EAMM-A-N38-87A	Axial kit · Mounting accessories
EAMM-A-N48-87A	Axial kit · Mounting accessories
EAMM-A-N48-40G	Axial kit · Mounting accessories
EAMM-A-N48-60G-G2	Axial kit · Mounting accessories
EAMM-A-N48-80G-G2	Axial kit · Mounting accessories
SME-8-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-S-LED-24	Proximity sensor · Cylinder sensors for direct mounting
ABP-5	Slot cover · Mounting accessories
SME-8-K-LED-230	Proximity sensor · Cylinder sensors for direct mounting
SME-8-O-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-24-S6	Proximity sensor · Cylinder sensors for direct mounting
SME-8-ZS-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-7,5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SMBK-8	Clip · Mounting accessories
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
EAMM-A-N48-60H-G2	Axial kit · Mounting accessories
