How can I get a price quote for Festo DSNU-10-40-P-A?

You can request a fast quote for Festo DSNU-10-40-P-A from Yılsa Engineering. Reference part number CEY-937FC7826C48. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DSNU-10-40-P-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DSNU-10-40-P-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DSNU-10-40-P-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

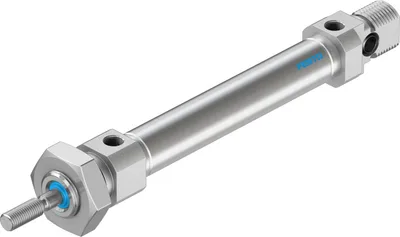

Festo DSNU-10-40-P-A

ISO cylinder. Wide range of variants for customised applications. Good running performance and long service life. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Piston rod with female or male thread. For position sensing

FestoMFR # DSNU-10-40-P-ASKU # CEY-937FC7826C48

Stroke40

Piston diameter10 mm

Piston rod threadM4

Mounting positionAny

Conforms to standardISO 6432

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo DSNU-10-40-P-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke40

Piston diameter10 mm

Piston rod threadM4

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Conforms to standardISO 6432

Piston-rod endMale thread

DesignPiston, Piston rod, Cylinder barrel

Position detectionVia proximity switch

Symbol00991217

VariantsPiston rod at one end

Operating pressure0.15, 1

Operating pressure1.5, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-20, 80

Impact energy in end positions0.05

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke39.6

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke47.1

Moving mass for 0 mm stroke8.5

Additional moving mass per 10 mm stroke1

Basic weight for 0 mm stroke37.3

Additional weight per 10 mm stroke2.7

Type of mountingWith accessories

Pneumatic connectionM5

Note on materialsRoHS compliant

Material coverWrought aluminium alloy, Colourless anodised

Material sealsNBR, TPE-U(PU)

Material piston rodHigh-alloy stainless steel

Material cylinder barrelHigh-alloy stainless steel

Accessories 125

Genuine accessories that can be used with the Festo DSNU-10-40-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
HBN-8/10X2	Foot mounting · Cylinder mountings
LBN-8/10	Clevis foot · Cylinder mountings
SG-M4	Rod clevis · Piston-rod attachments
QSM-M5-4	Push-in fitting · Fittings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
QSML-M5-4	Push-in L-fitting · Fittings
SMBR-8-10	Mounting kit · Retainer for proximity sensor
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
SGS-M4	Rod eye · Piston-rod attachments
PUN-H-4X0,75-BL	Plastic tubing · Tubes
FK-M4	Self-aligning rod coupler · Piston-rod attachments
QSM-M5-4-I	Push-in fitting · Fittings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
HBN-8/10X1	Foot mounting · Cylinder mountings
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
FBN-8/10	Flange mounting · Cylinder mountings
HBN-8/10X1-A	Foot mounting · Cylinder mountings
HBN-8/10X2-A	Foot mounting · Cylinder mountings
WBN-8/10	Swivel mounting · Cylinder mountings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
SMBR-10	Mounting kit · Mounting kits for proximity sensors, other sensors
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
SMBS-1	Mounting kit · Mounting kits for proximity sensors, other sensors
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-3-LF-C	Throttle valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-4-LF-C	Throttle valve · Function fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
MSK-M12X1,25	Hex nut · Mounting accessories
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
HGL-M5-QS-4	Piloted check valve · Function fittings
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
NPFC-DS-M5-M5-M	Double nipple · Other connectors
CRSG-M4	Rod clevis · Stainless-steel piston-rod attachments
DARP-M4-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
