How can I get a price quote for Festo DLGF-...-20- -PPSA?

You can request a fast quote for Festo DLGF-...-20- -PPSA from Yılsa Engineering. Reference part number YLS65MOID6JPND2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DLGF-...-20- -PPSA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DLGF-...-20- -PPSA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DLGF-...-20- -PPSA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

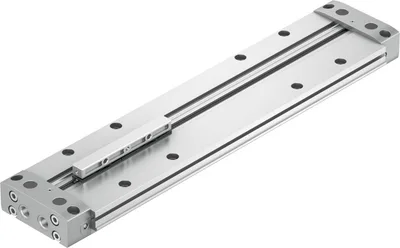

Festo DLGF-...-20- -PPSA

Linear drive. Extremely flat design. Choice of two types of cushioning: self-adjusting pneumatic end-position cushioning or external hydraulic shock absorbers. Supply port on the left or right or at both ends or alternatively from below. Loads and devices can be directly mounted on the slide. Basic design DLGF-G without external guide for simple drive functions in small installation spaces. Recirculating ball bearing guide DLGF-KF with a standard recirculating ball bearing guide for high torques and heavy loads. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DLGF-...-20- -PPSASKU # YLS65MOID6JPND2

Stroke50, 1000

Piston diameter20 mm

Mounting positionAny

Coupling designPositive-locking (slot)

Position detectionVia proximity switch

Operating pressure0.2, 0.8

Have questions?Chat on WhatsApp

About This Product

Festo DLGF-...-20- -PPSA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke50, 1000

Piston diameter20 mm

CushioningSelf-adjusting pneumatic end-position cushioning

Mounting positionAny

GuideBasic Guide, Recirculating ball bearing guide

Coupling designPositive-locking (slot)

Position detectionVia proximity switch

VariantsWith mounting holes, Without mounting holes

Operating pressure0.2, 0.8

Operating pressure2, 8

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature0, 60

Cushioning length9.6

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke188

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188

alternative connectionsSee product drawing

Type of mountingWith accessories

Pneumatic connectionM5

Note on materialsRoHS compliant, Copper-free

Material coverCast aluminium, coated

Material sealsNBR, TPE-U(PU)

Material housingAnodised aluminium

Accessories 122

Genuine accessories that can be used with the Festo DLGF-...-20- -PPSA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DADG-HL-N8-P2	Cable holder · Mounting accessories
DAMH-L8-20-P-1	Profile mounting · Mounting accessories
QSM-M5-4	Push-in fitting · Fittings
QSM-M5-4-I	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
GRLA-M5-RS-B	One-way flow control valve · Function fittings
GRLO-M5-B	Throttle valve · Function fittings
GRLO-M5-PK-3-B	Throttle valve · Function fittings
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-3-LF-C	Throttle valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-4-LF-C	Throttle valve · Function fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
ABP-5-S1	Slot cover · Mounting accessories
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-DS-M5-M5-M	Double nipple · Other connectors
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
