How can I get a price quote for Festo DHPC-6-A-S-1?

You can request a fast quote for Festo DHPC-6-A-S-1 from Yılsa Engineering. Reference part number YLSO0REOMBHZV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DHPC-6-A-S-1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DHPC-6-A-S-1 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DHPC-6-A-S-1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

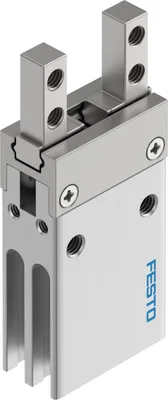

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DHPC-6-A-S-1

Parallel gripper. Resilient and precise ball guide. High gripping force and compact size. Max. repetition accuracy. Can be used as a double-acting or single-acting gripper. Single-acting variant or with gripping force retention normally open (NO) or normally closed (NC). Suitable for external and internal gripping. Wide variety of mounting and attachment options. Sustainable in production thanks to reduced use of materials

FestoMFR # DHPC-6-A-S-1SKU # YLSO0REOMBHZV

Size6

Stroke per gripper jaws2

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0

Max. gripper jaw backlash Sz0

Rotationally symmetrical0.2

Have questions?Chat on WhatsApp

About This Product

Festo DHPC-6-A-S-1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

Stroke per gripper jaws2

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0

Max. gripper jaw backlash Sz0

Rotationally symmetrical0.2

Repetition accuracy, gripper0.02

Number of gripper jaws2

Drive systemPneumatic

Mounting positionAny

Mode of operationDouble-acting

Gripper functionParallel

Gripper force back-upNone

DesignConnection direction on the side, Lever, Side mounting method for gripper fingers, Force pilot operated motion sequence

GuideBall guide

Position detectionVia proximity switch

Symbol00991894

VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Operating pressure21.75, 116

Max. operating frequency of gripper3

Min. opening time at 0.6 MPa (6 bar, 87 psi)9

Min. closing time at 0.6 MPa (6 bar, 87 psi)11

Max. mass per external gripper finger6

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Ambient temperature-10, 60

Total gripping force, opening, 0.6MPa (6bar, 87 psi)14.6

Total gripping force, closing, 0.6MPa (6bar, 87 psi)11

Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)7.3

Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)5.5

Mass moment of inertia0.011

Max. force on gripper jaw Fz static22

Max. torque at gripper Mx static0.24

Max. torque at gripper My static0.11

Max. torque at gripper Mz static0.11

Product weight25

Type of mountingEither:, Direct mounting via through-hole, Direct mounting via thread

Pneumatic connectionM3

Note on materialsRoHS compliant

Material housingAnodised aluminium

Material gripper jawsHigh-alloy stainless steel

Accessories 46

Genuine accessories that can be used with the Festo DHPC-6-A-S-1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
PUN-H-4X0,75-NT	Plastic tubing · Tubes
SMT-10G-PS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
PUN-H-4X0,75-BL	Plastic tubing · Tubes
SMT-10G-PS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
SMT-10G-NS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-10G-NS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-3-I	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-5-N-LE4	Connecting cable · Connecting cables
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
