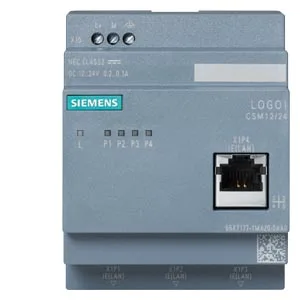

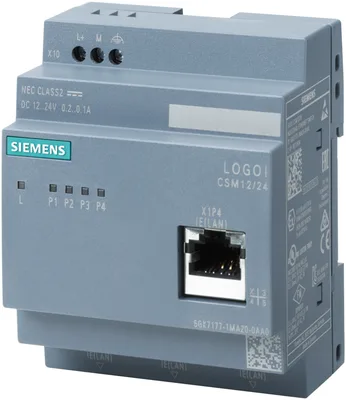

Siemens 6GK7177-1MA20-0AA0
LOGO! CSM12/24 Compact anahtar modül bağlantı of a LOGO! (...0BA7/...0BA8) ve en çok 3 further nodes to Ind. Ethernet ile 10/100 Mbit/s Unmanaged anahtar, 4 RJ45 ports, 1x ön port için diagnostics DC 12/24V güç kaynağı LED diagnostics, LOGO! setup.
product brand nameLOGO!
product type designationCSM 12/24
transfer rate10, 100 Mbit/s
for multimode0
for power supply1
for power supply3-pole terminal block
Ürün Hakkında
LOGO! CSM12/24 Compact anahtar modül bağlantı of a LOGO! (...0BA7/...0BA8) ve en çok 3 further nodes to Ind. Ethernet ile 10/100 Mbit/s Unmanaged anahtar, 4 RJ45 ports, 1x ön port için diagnostics DC 12/24V güç kaynağı LED diagnostics, LOGO! setup.
Siemens 6GK7177-1MA20-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameLOGO!
product type designationCSM 12/24
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment4
for multimode0
interfaces / other
for power supply1
for power supply3-pole terminal block
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value1,5 W
supply voltage / 1 / voltage range10,2... 30,2
consumed current / 1 / maximum0,15 A
type of electrical connection / 1 / for power supply3-pole terminal block
product component / 1 / fusing at power supply inputVar
ambient conditions
during operation0... 55 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum90 %
protection class IPIP20

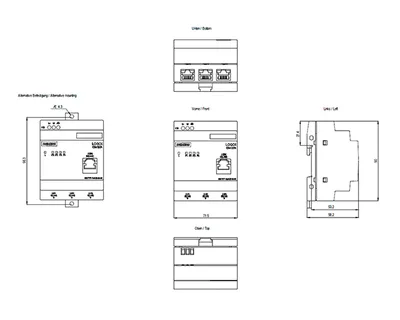

design, dimensions and weights
designLOGO! module
width71,5 mm
height90 mm
depth58,2 mm
net weight0,15 kg
35 mm DIN-rail mountingVar
wall mountingVar
S7-300 rail mountingYok
S7-1500 rail mountingYok
product functions / management, configuration, engineering
multiport mirroringYok
switch-managedYok
standards, specifications, approvals
CE markingVar
cULus approvalVar
KC onayıYok
Regulatory Compliance Mark (RCM)Var
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 508, CSA C22.2 Yok. 142
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
RoHS conformityVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total57,94 kg
during manufacturing7,42 kg
during operation50,38 kg
after end of life0,14 kg
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing7,42 kg
global warming potential [CO2 eq] / during operation50,38 kg
global warming potential [CO2 eq] / after end of life0,14 kg
global warming potential [CO2 eq] / total57,94 kg
