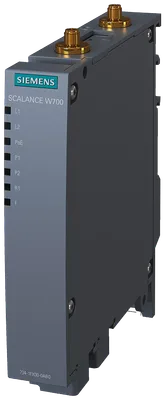

Siemens 6GK5734-1FX00-0AB0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6GK5734-1FX00-0AB0

Please observe national approvals: www.siemens.com/wireless-approvals RJ45, 1 radio, 2 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross data rate 300 Mbps, 2x RJ45 max. 100 Mbps, PoE dahili 2-port anahtar, redundant 24 V DC, joint block, IP30, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN-W1-RJ-E2, FCC ID: LYHMSN1V1, scope of besleme: manuals on CD-ROM, German/English, 1x joint block; only için çalışma in the USA

SiemensMFR # 6GK5734-1FX00-0AB0SKU # CEY-8EF3B0385B5A
product brand nameSCALANCE
with WLAN / maximum300 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
for power supply1
for redundant voltage supply1
for power supply4-pole screw terminal, PoE
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Please observe national approvals: www.siemens.com/wireless-approvals RJ45, 1 radio, 2 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross data rate 300 Mbps, 2x RJ45 max. 100 Mbps, PoE dahili 2-port anahtar, redundant 24 V DC, joint block, IP30, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN-W1-RJ-E2, FCC ID: LYHMSN1V1, scope of besleme: manuals on CD-ROM, German/English, 1x joint block; only için çalışma in the USA

Siemens 6GK5734-1FX00-0AB0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSCALANCE
transfer rate
with WLAN / maximum300 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
interfaces
for network components or terminal equipment2
for power supply1
for redundant voltage supply1
for network components or terminal equipmentRJ45 socket
for power supply4-pole screw terminal, PoE
memory
C-PLUGVar
KEY-PLUGVar
interfaces / wireless
number of radio cards / permanently installed1
transmission mode / for multiple input multiple output (MIMO)2x2
number of spatial streams2
number of electrical connections / for external antenna(s)2
type of electrical connection / for external antenna(s)R-SMA (socket)
product feature / external antenna can be mounted directly on deviceVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
at DC / at 24 V / typical0,25 A
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0,125 A
at DC / at 24 V / typical6 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical6 W
from terminal block19,2 V
from terminal block28,8 V
ambient conditions
during operation-20... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
ambient condition / for operationWhen used under hazardous conditions (Zone 2), the SCALANCE W774-1 RJ45 veya W734-1 RJ45 product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of least IP 54 in compliance with EN 60529.
protection class IPIP30
design, dimensions and weights
width26 mm
height156 mm
depth127 mm
width / of the enclosure / without antenna26 mm
height / of the enclosure / without antenna147 mm
depth / of the enclosure / without antenna127 mm
net weight0,52 kg
fastening methodwall mounting only if flat mounted
S7-300 rail mountingVar
S7-1500 rail mountingVar
35 mm DIN-rail mountingVar
wall mountingVar
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4,9... 5,8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeYok
product function / client ModeVar
iPCF clientVar; Only in combination with the 'KEY-PLUG W780 iFeatures' veya 'KEY-PLUG W740 iFeatures'
iPCF-MC clientVar; Only in combination with 'KEY-PLUG W780 iFeatures' veya 'KEY-PLUG W740 iFeatures'
number of iPCF-capable radio modules1
product function / iPRPVar; In combination with the 'KEY-PLUG W780 iFeatures' veya 'KEY-PLUG W740 iFeatures' only
product functions / management, configuration, engineering
number of manageable IP addresses / in client8
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
WDSYok
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPYok
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisVar
link checkYok
connection monitoring IP-AliveYok
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANYok
product functions / DHCP
DHCP clientVar
DHCP serverVar
DHCP Option 82Var
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
product functions / security
ACL - MAC-basedVar
management security, ACL-IP basedVar
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
TKIP/AESVar
SSHVar
RADIUSVar
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 Yok. 60950-1
EC Declaration of ConformityVar
CE markingVar
C-TickVar
E1 approvalYok
railway application in accordance with EN 50155Yok
NEMA TS2Yok
IEC 61375Yok
IEC 61850-3Yok
NEMA4XYok
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
Power-over-Ethernet according to IEEE802.3at for type 2Var
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Var
DNV GLVar
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
Polski Rejestr Statkow (PRS)Var
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 Yok.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480
certificate of suitability / CCC / for hazardous zone according to GB standardVar; GB3836.1, GB3836.8
as markingEx nA IIC T4 Gc
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total195,92 kg
during manufacturing29,7 kg
during operation166,06 kg
after end of life0,16 kg
accessories
accessories24 V DC screw terminal included in scope of delivery

Aksesuarlar 111

Siemens 6GK5734-1FX00-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
6GK1900-0AB10Aksesuar
6GK1901-1BB10-2AA0Aksesuar
6GK1901-1BB50-0AA0Aksesuar
6GK5792-4DN00-0AA6Aksesuar · Antenna · WLAN
6GK5792-6MN00-0AA6Aksesuar · Antenna · WLAN
6GK5793-4MN00-0AA6Aksesuar · Antenna · WLAN
6GK5793-6DG00-0AA0Aksesuar · Antenna · WLAN
6GK5793-8DJ00-0AA0Aksesuar · Antenna · WLAN
6GK5793-8DK00-0AA0Aksesuar · Antenna · WLAN
6GK5793-8DL00-0AA0Aksesuar · Antenna · WLAN
6GK5793-8DP00-0AA0Aksesuar · Antenna · WLAN
6GK5795-4MA00-0AA3Aksesuar · Antenna · WLAN
6GK5795-4MB00-0AA0Aksesuar · Antenna · WLAN
6GK5795-6DC00-0AA0Aksesuar · Antenna · WLAN
6GK5795-6MN10-0AA6Aksesuar · Antenna · WLAN
6GK5795-6MP00-0AA0Aksesuar · Antenna · WLAN
6XV1875-5CE30Aksesuar · Cables · cable for WLAN antennas
6XV1875-5CH10Aksesuar · Cables · cable for WLAN antennas
6XV1875-5CH20Aksesuar · Cables · cable for WLAN antennas
6XV1875-5CH50Aksesuar · Cables · cable for WLAN antennas
6XV1875-5CN10Aksesuar · Cables · cable for WLAN antennas
6GK5907-4PA00Aksesuar
6GK5980-1DB00-0AA5Aksesuar
6GK5980-1DB10-0AA5Aksesuar
6XV1870-3QE30Aksesuar · Cables · network cable electrical
6XV1870-3QE50Aksesuar · Cables · network cable electrical
6XV1870-3QH10Aksesuar · Cables · network cable electrical
6XV1870-3QH20Aksesuar · Cables · network cable electrical
6XV1870-3QH30Aksesuar · Cables · network cable electrical
6XV1870-3QH40Aksesuar · Cables · network cable electrical
6XV1870-3QH60Aksesuar · Cables · network cable electrical
6XV1870-3QN10Aksesuar · Cables · network cable electrical
6XV1870-3QN15Aksesuar · Cables · network cable electrical
6XV1870-3QN20Aksesuar · Cables · network cable electrical
6XV1870-3QN25Aksesuar · Cables · network cable electrical
6XV1870-3QN30Aksesuar · Cables · network cable electrical
6XV1870-3QN35Aksesuar · Cables · network cable electrical
6XV1870-3QN40Aksesuar · Cables · network cable electrical
6XV1870-3QN45Aksesuar · Cables · network cable electrical
6XV1870-3QN50Aksesuar · Cables · network cable electrical
6XV1871-5BH10Aksesuar · Cables · network cable electrical
6XV1871-5BH20Aksesuar · Cables · network cable electrical
6XV1871-5BH30Aksesuar · Cables · network cable electrical
6XV1871-5BH50Aksesuar · Cables · network cable electrical
6XV1871-5BN10Aksesuar · Cables · network cable electrical
6XV1871-5BN12Aksesuar · Cables · network cable electrical
6XV1871-5BN15Aksesuar · Cables · network cable electrical
6XV1871-5BN20Aksesuar · Cables · network cable electrical
6XV1871-5BN30Aksesuar · Cables · network cable electrical
6XV1878-5BH20Aksesuar · Cables · network cable electrical
6XV1878-5BH30Aksesuar · Cables · network cable electrical
6XV1878-5BH50Aksesuar · Cables · network cable electrical
6XV1878-5BN10Aksesuar · Cables · network cable electrical
6XV1878-5BN15Aksesuar · Cables · network cable electrical
6XV1878-5BN20Aksesuar · Cables · network cable electrical
6XV1878-5BN25Aksesuar · Cables · network cable electrical
6XV1878-5BN30Aksesuar · Cables · network cable electrical
6GK1901-1BB10-2AB0Aksesuar
6GK1901-1BB10-2AE0Aksesuar
6GK1901-1GA00Aksesuar
6XV1812-8AAksesuar · Cables · power cables
6XV1840-2AH10Aksesuar · Cables · network cable electrical
6XV1870-4BE50Aksesuar · Cables · network cable electrical
6XV1870-4BH10Aksesuar · Cables · network cable electrical
6XV1870-4BH20Aksesuar · Cables · network cable electrical
6XV1870-4BH30Aksesuar · Cables · network cable electrical
6XV1870-4BH40Aksesuar · Cables · network cable electrical
6XV1870-4BH60Aksesuar · Cables · network cable electrical
6XV1870-4BN10Aksesuar · Cables · network cable electrical
6XV1870-4BN15Aksesuar · Cables · network cable electrical
6XV1870-4BN20Aksesuar · Cables · network cable electrical
6XV1870-4BN25Aksesuar · Cables · network cable electrical
6XV1870-4BN30Aksesuar · Cables · network cable electrical
6XV1870-4GE50Aksesuar · Cables · network cable electrical
6XV1870-4GH10Aksesuar · Cables · network cable electrical
6XV1870-4GH20Aksesuar · Cables · network cable electrical
6XV1870-4GH30Aksesuar · Cables · network cable electrical
6XV1870-4GH40Aksesuar · Cables · network cable electrical
6XV1870-4GH60Aksesuar · Cables · network cable electrical
6XV1870-4GN10Aksesuar · Cables · network cable electrical
6XV1870-4GN15Aksesuar · Cables · network cable electrical
6XV1870-4GN20Aksesuar · Cables · network cable electrical
6XV1870-4GN25Aksesuar · Cables · network cable electrical
6XV1870-4GN30Aksesuar · Cables · network cable electrical
6XV1870-4RE50Aksesuar · Cables · network cable electrical
6XV1870-4RH10Aksesuar · Cables · network cable electrical
6XV1870-4RH20Aksesuar · Cables · network cable electrical
6XV1870-4RH30Aksesuar · Cables · network cable electrical
6XV1870-4RH40Aksesuar · Cables · network cable electrical
6XV1870-4RH60Aksesuar · Cables · network cable electrical
6XV1870-4RN10Aksesuar · Cables · network cable electrical
6XV1870-4RN15Aksesuar · Cables · network cable electrical
6XV1870-4RN20Aksesuar · Cables · network cable electrical
6XV1870-4RN25Aksesuar · Cables · network cable electrical
6XV1870-4RN30Aksesuar · Cables · network cable electrical
6XV1870-4UE50Aksesuar · Cables · network cable electrical
6XV1870-4UH10Aksesuar · Cables · network cable electrical
6XV1870-4UH20Aksesuar · Cables · network cable electrical
6XV1870-4UH30Aksesuar · Cables · network cable electrical
6XV1870-4UH40Aksesuar · Cables · network cable electrical
6XV1870-4UH60Aksesuar · Cables · network cable electrical
6XV1870-4UN10Aksesuar · Cables · network cable electrical
6XV1870-4UN15Aksesuar · Cables · network cable electrical
6XV1870-4UN20Aksesuar · Cables · network cable electrical
6XV1870-4UN25Aksesuar · Cables · network cable electrical
6XV1870-4UN30Aksesuar · Cables · network cable electrical
6XV1871-5TH20Aksesuar · Cables · network cable electrical
6XV1871-5TH30Aksesuar · Cables · network cable electrical
6XV1871-5TH50Aksesuar · Cables · network cable electrical
6XV1871-5TN10Aksesuar · Cables · network cable electrical
6XV1871-5TN15Aksesuar · Cables · network cable electrical

İlgili Ürünler

6GK1411-1AC00
Siemens 6GK1411-1AC00
Detayları Gör

Siemens

6GK1411-1AC00

MFR #6GK1411-1AC00

SKU #YLSUPUJLQ5SX

6GK1411-5AB10
Siemens 6GK1411-5AB10
Detayları Gör

Siemens

6GK1411-5AB10

MFR #6GK1411-5AB10

SKU #YLSWCVVF4PMPV5M

6GK1411-5AC00
Siemens 6GK1411-5AC00
Detayları Gör

Siemens

6GK1411-5AC00

MFR #6GK1411-5AC00

SKU #YLSX1BWVS5DB97H

6GK1411-5BB00
Siemens 6GK1411-5BB00
Detayları Gör

Siemens

6GK1411-5BB00

MFR #6GK1411-5BB00

SKU #YLS8ZXA1XMOM1Z2

6GK1562-3AA01
Siemens 6GK1562-3AA01
Detayları Gör

Siemens

6GK1562-3AA01

MFR #6GK1562-3AA01

SKU #YLSUPE0SE2ALSG

6GK1571-1AA00-0AD0
Siemens 6GK1571-1AA00-0AD0
Detayları Gör

Siemens

6GK1571-1AA00-0AD0

MFR #6GK1571-1AA00-0AD0

SKU #YLSNEGUF7BUFUDI

6GK1700-0AA16-0AA0
Siemens 6GK1700-0AA16-0AA0
Detayları Gör

Siemens

6GK1700-0AA16-0AA0

MFR #6GK1700-0AA16-0AA0

SKU #YLSSJRML6XO3MG

6GK1700-0AA17-0AA0
Siemens 6GK1700-0AA17-0AA0
Detayları Gör

Siemens

6GK1700-0AA17-0AA0

MFR #6GK1700-0AA17-0AA0

SKU #YLSYL6QBEDHUOAQ

6GK1700-0AA18-0AA0
Siemens 6GK1700-0AA18-0AA0
Detayları Gör

Siemens

6GK1700-0AA18-0AA0

MFR #6GK1700-0AA18-0AA0

SKU #YLSMHAXXPQWTSZT

6GK1700-0AA23-0AA0
Siemens 6GK1700-0AA23-0AA0
Detayları Gör

Siemens

6GK1700-0AA23-0AA0

MFR #6GK1700-0AA23-0AA0

SKU #YLSEYSK9HEFTQ3

Öne Çıkan Ürünler

MGPM25-100Z-XC4
SMC MGPM25-100Z-XC4
Detayları Gör

SMC

MGPM25-100Z-XC4

MFR #MGPM25-100Z-XC4

SKU #YLSH71U0VZZBO5I

NCDJ2L10-300-B
SMC NCDJ2L10-300-B
Detayları Gör

SMC

NCDJ2L10-300-B

MFR #NCDJ2L10-300-B

SKU #YLSRRDWPL50RWQ2

AR30-N02E-1Z-B
SMC AR30-N02E-1Z-B
Detayları Gör

SMC

AR30-N02E-1Z-B

MFR #AR30-N02E-1Z-B

SKU #YLSYFNHADE6GRKV

MXQ25-40B-M9NZ
SMC MXQ25-40B-M9NZ
Detayları Gör

SMC

MXQ25-40B-M9NZ

MFR #MXQ25-40B-M9NZ

SKU #YLST5TX9LNATRNS

VM8001-5
Baldor VM8001-5
Detayları Gör

Baldor

VM8001-5

MFR #VM8001-5

SKU #YLS3TOWVXWW0DHP

EH22512
Danfoss Aeroquip LLC EH22512
Detayları Gör

Danfoss Aeroquip LLC

EH22512

MFR #EH22512

SKU #YLSRZ91UGVO64DG

NCMC150-0600-X103US
SMC NCMC150-0600-X103US
Detayları Gör

SMC

NCMC150-0600-X103US

MFR #NCMC150-0600-X103US

SKU #YLS468HQT0B65QG

BM3615T W/ 2-1/4" LONG SHAFT
Baldor BM3615T W/ 2-1/4" LONG SHAFT
Detayları Gör

Baldor

BM3615T W/ 2-1/4" LONG SHAFT

MFR #BM3615T W/ 2-1/4" LONG SHAFT

SKU #YLSUV0OKQIKNTRJ

VQC2101R-51
SMC VQC2101R-51
Detayları Gör

SMC

VQC2101R-51

MFR #VQC2101R-51

SKU #YLSSEY6NT0YLZ8G

MGPL25TN-200BZ-XC9
SMC MGPL25TN-200BZ-XC9
Detayları Gör

SMC

MGPL25TN-200BZ-XC9

MFR #MGPL25TN-200BZ-XC9

SKU #YLSPBI637NOCN0Y

İlgili Aramalar

Siemens 6GK5734-1FX00-0AB0 fiyatSiemens 6GK5734-1FX00-0AB0 teklif alSiemens 6GK5734-1FX00-0AB0 satın al6GK5734-1FX00-0AB0 fiyat6GK5734-1FX00-0AB0 stok durumuSiemens yedek parçaSiemens 6GK5734-1FX00-0AB0 muadilSiemens 6GK5734-1FX00-0AB0 teknik özellikler
