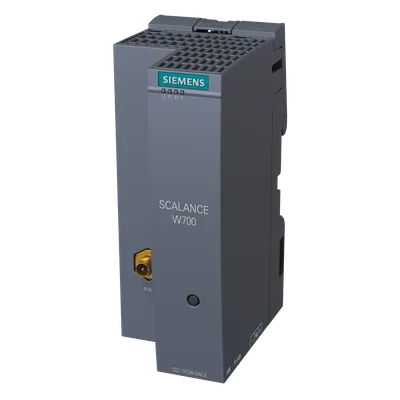

Siemens 6GK5722-1FC00-0AC0
Please observe national approvals: www.siemens.com/wireless-approvals RJ45, 1 radio, 1 R-SMA antenna port, iFeatures support IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross data rate 150 Mbps, 1x RJ45 max. 100 Mbps, 24 V DC, joint block, IP20, 0... +55 °C, WPA2/802.11i/e, observe national approvals! CERT ID: ELN-W1-RJ-E1, scope of besleme: manuals on CD-ROM, German/English, 1x joint block; only için çalışma in Israel
product brand nameSCALANCE
with WLAN / maximum150 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
for power supply1
for redundant voltage supply0
for power supply3-pole screw terminal
Ürün Hakkında
Please observe national approvals: www.siemens.com/wireless-approvals RJ45, 1 radio, 1 R-SMA antenna port, iFeatures support IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross data rate 150 Mbps, 1x RJ45 max. 100 Mbps, 24 V DC, joint block, IP20, 0... +55 °C, WPA2/802.11i/e, observe national approvals! CERT ID: ELN-W1-RJ-E1, scope of besleme: manuals on CD-ROM, German/English, 1x joint block; only için çalışma in Israel
Siemens 6GK5722-1FC00-0AC0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
with WLAN / maximum150 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
interfaces
for network components or terminal equipment1
for power supply1
for redundant voltage supply0
for network components or terminal equipmentRJ45 socket
for power supply3-pole screw terminal
memory
C-PLUGYok
KEY-PLUGYok
interfaces / wireless
number of radio cards / permanently installed1
number of electrical connections / for external antenna(s)1
type of electrical connection / for external antenna(s)R-SMA (socket)
product feature / external antenna can be mounted directly on deviceVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
at DC / at 24 V / typical0,15 A
at DC / at 24 V / typical3,6 W
from terminal block19,2 V
from terminal block28,8 V
ambient conditions
during operation0... 55 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
ambient condition / for operationWhen used under hazardous conditions (Zone 2), the SCALANCE W761-1 RJ45 veya W72x-1 RJ45 product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of least IP 54 in compliance with EN 60529.
protection class IPIP20

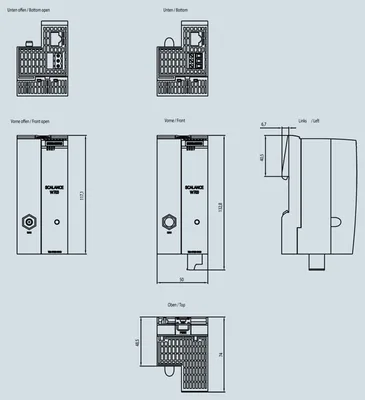

design, dimensions and weights
width50 mm
height114 mm
depth74 mm
width / of the enclosure / without antenna50 mm
height / of the enclosure / without antenna114 mm
depth / of the enclosure / without antenna74 mm
net weight0,13 kg
S7-300 rail mountingYok
S7-1500 rail mountingYok
35 mm DIN-rail mountingVar
wall mountingYok
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band5,15... 5,35 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeYok
product function / client ModeVar
iPCF clientVar
iPCF-MC clientVar
number of iPCF-capable radio modules1
product function / iPRPVar
product functions / management, configuration, engineering
number of manageable IP addresses / in client4
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
WDSYok
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPYok
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisVar
link checkYok
connection monitoring IP-AliveYok
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANYok
product functions / DHCP
DHCP clientVar
DHCP serverVar
DHCP Option 82Var
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
product functions / security
ACL - MAC-basedVar
management security, ACL-IP basedVar
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
TKIP/AESVar
SSHVar
RADIUSVar
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 Yok. 60950-1
EC Declaration of ConformityYok
CE markingYok
C-TickVar
E1 approvalYok
railway application in accordance with EN 50155Yok
NEMA TS2Yok
IEC 61375Yok
IEC 61850-3Yok
NEMA4XYok
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afYok
Power-over-Ethernet according to IEEE802.3at for type 2Yok
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
DNV GLYok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Yok
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 Yok.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total200,91 kg
during manufacturing12,97 kg
during operation187,77 kg
after end of life0,17 kg
accessories
accessories24 V DC screw terminal included in scope of delivery
