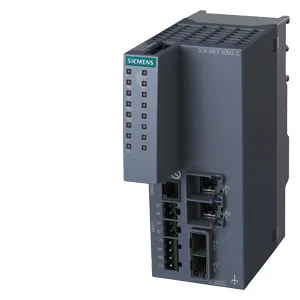

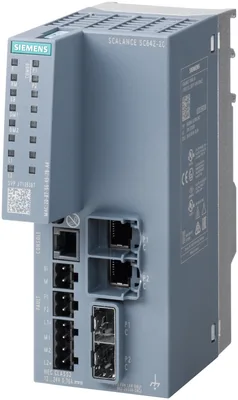

Siemens 6GK5642-2GS00-2AC2
SCALANCE SC642-2C Industrial Security Appliance; için koruma of devices ve networks in discrete manufacturing ve the process industry için koruma of the industrial communication ile firewall ve VPN; Further functions: adres conversion (NAT/NAPT); bağlantı to SINEMA RC; 2x combo port electrical veya optical; 10/100/1000 Mbit/s RJ45 veya 100 Mbit/s SFP veya 1000 Mbit/s SFP.
product brand nameSCALANCE
transfer rate10, 100, 1000 Mbit/s
for signaling contact1
for power supply1
for redundant voltage supply1
for signaling contact2-pole terminal block
Ürün Hakkında
SCALANCE SC642-2C Industrial Security Appliance; için koruma of devices ve networks in discrete manufacturing ve the process industry için koruma of the industrial communication ile firewall ve VPN; Further functions: adres conversion (NAT/NAPT); bağlantı to SINEMA RC; 2x combo port electrical veya optical; 10/100/1000 Mbit/s RJ45 veya 100 Mbit/s SFP veya 1000 Mbit/s SFP.
Siemens 6GK5642-2GS00-2AC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum2
number of electrical connections / for SFP+ / integrated1
number of combo ports / with RJ45 interface for optical plug-in transceiver1
for signaling contact1
for power supply1
for redundant voltage supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
design of the removable storage / C-PLUGVar
signal inputs/outputs
for digital input signals1
for digital input signals2-pole terminal block
for digital output signals2-pole terminal block
operating voltage / of the signaling contacts / at DC / rated value24 V
operational current / of the signaling contacts / at DC / maximum0,1 A
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value9,12 W
supply voltage / 1 / rated value9,6... 31,2 V
consumed current / 1 / maximum0,38 A
type of voltage / 2 / of the supply voltageDC
supply voltage / 2 / rated value24 V
power loss [W] / 2 / rated value9,12 W
supply voltage / 2 / rated value / minimum9,6 V
supply voltage / 2 / rated value / maximum31,2 V
consumed current / 2 / maximum0,38 A
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width60 mm
height145 mm
depth125 mm
net weight0,58 kg
fastening methodFixing bolt with additional screw protection
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product features, product functions, product components / general
product function / DynDNS clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TelnetYok
HTTPYok
HTTPSVar
TFTPVar
FTPVar
SFTPVar
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
type of configurationWBM, CLI, SNMP
PROFINET conformity classA
product functions / diagnostics
SysLogVar
packet filter logVar
audit logVar
system logVar
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicYok
number of VLANs / maximum257
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
DHCP Option 66Var
DHCP Option 67Var
product functions / routing
product function / static IP routingVar
protocol / is supported / VRRPVar
protocol / is supported / VRRP for IPv6Var
product function / static IP routing IPv6Var
protocol / is supported / OSPFv2Var
protocol / is supported / OSPFv3 for IPv6Var
product functions / security
firewall versionstateful inspection
product function / with VPN connectionIPsec, OpenVPN
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168, DES-56
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1, SHA-256, SHA-384, SHA-512
number of possible connections / with VPN connection200
password protectionVar
bandwidth limitationYok
NAT/NAPTVar
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterVar
broadcast blockingVar
protocol / is supported / SSHVar
product functions / redundancy
standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
passive listeningVar
product functions / time
protocol / is supported / NTPVar
NTP-clientVar
NTP-serverVar
protocol / is supported / SNTPVar
SNTP clientVar
SNTP serverVar
product feature / hardware real time clock w. battery backupVar
standards, specifications, approvals
standard / for FMFM19US0167X
UKCA markingVar
for safety / from CSA and ULUL 60950 E115352 / CSA C22.2 no. 60950-1-03, CSA C22.2 no. 213-M1987 (available soon)
for emitted interferenceEN 61000-6-4: 2007
for interference immunityEN 61000-6-2: 2005
certificate of suitabilityAS/NZS 2064 (Class A), EN 61000-6-2, EN 61000-6-4
CE markingVar
C-TickVar
CCCVar
MTBF37,83 a
standardEN/IEC 61709
reference temperature40 °C
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Var
DNV GLVar
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
Polski Rejestr Statkow (PRS)Var
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X
certificate of suitability / CCC / for hazardous zone according to GB standardVar; GB3836.1, GB3836.8
certificate of suitability / CCC / for hazardous zone according to GB standard / as markingEx nA IIC T4 Gc
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total248,56 kg
during manufacturing31,33 kg
during operation216,76 kg
after end of life0,47 kg
accessories
C-PLUGVar
Aksesuarlar 102
Siemens 6GK5642-2GS00-2AC2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK5792-4DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5792-6MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5793-4MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5793-6DG00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DJ00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DK00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DL00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DP00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MA00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MB00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6DC00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MN10-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MP00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6XV1875-5CE30 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5CH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5CH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5CH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5CN10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5980-1CB00-0BA5 | Aksesuar | |
| 6GK5980-1CB10-0BA5 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6GK1901-1BB10-2AE0 | Aksesuar | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical |
İlgili Ürünler
Detayları Gör
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
Detayları Gör
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
Detayları Gör
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
Detayları Gör
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
Detayları Gör
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
Detayları Gör
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
Detayları Gör
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
Detayları Gör
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
Detayları Gör
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Öne Çıkan Ürünler
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
İlgili Aramalar
Siemens 6GK5642-2GS00-2AC2 fiyatSiemens 6GK5642-2GS00-2AC2 teklif alSiemens 6GK5642-2GS00-2AC2 satın al6GK5642-2GS00-2AC2 fiyat6GK5642-2GS00-2AC2 stok durumuSiemens yedek parçaSiemens 6GK5642-2GS00-2AC2 muadilSiemens 6GK5642-2GS00-2AC2 teknik özellikler
