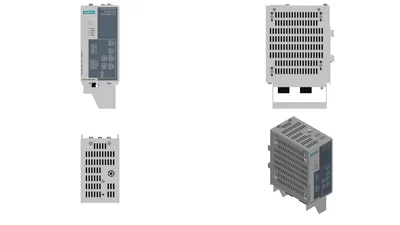

Siemens 6GK5204-0BS00-2NA3
A halefi ürün will be mevcut in calendar year 2026 network access 2x 100 Mbit/s RJ45 ports; 2x 100 Mbit/s combo ports; LED diagnostics; error sinyalizasyon kontak ile set pushbutton; simple güç kaynağı; network management; dahil elektronik manuel on CD-ROM, C-PLUG optional için HSR network;
product brand nameSCALANCE
product type designationX204RNA EEC
transfer rate10, 100 Mbit/s
for signaling contact1
for power supply1
for signaling contact3-pole terminal block
Ürün Hakkında
A halefi ürün will be mevcut in calendar year 2026 network access 2x 100 Mbit/s RJ45 ports; 2x 100 Mbit/s combo ports; LED diagnostics; error sinyalizasyon kontak ile set pushbutton; simple güç kaynağı; network management; dahil elektronik manuel on CD-ROM, C-PLUG optional için HSR network;
Siemens 6GK5204-0BS00-2NA3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationX204RNA EEC
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment2
number of combo ports / with RJ45 interface for optical plug-in transceiver2
interfaces / other
for signaling contact1
for power supply1
for signaling contact3-pole terminal block
for power supply3-pole terminal block
C-PLUGVar
at AC / rated value230 V
at DC / rated value24 V
at AC / maximum0,1 A
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value6 W
supply voltage / 1 / voltage range85... 276
consumed current / 1 / maximum0,25 A
type of electrical connection / 1 / for power supply3-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage1,25 A
type of voltage / 2 / of the supply voltageAC
supply voltage / 2 / voltage range85... 276
ambient conditions
during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
noteA maximum operating temperature of +85 °C is permissible for a duration of 16 hours
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

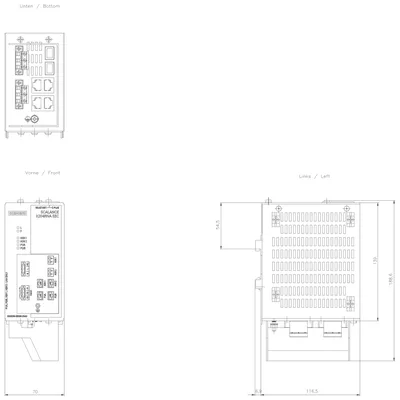

design, dimensions and weights
designcompact
width70 mm
height147 mm
depth123 mm
net weight0,78 kg
product feature / conformal coatingVar
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Yok
port mirroringYok
multiport mirroringYok
with IRT / PROFINET IO switchYok
PROFINET IO diagnosisYok
switch-managedYok
TelnetYok
HTTPVar
HTTPSVar
TFTPYok
FTPYok
BOOTPYok
GMRPYok
DCPVar
LLDPYok
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Yok
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yok
media redundancy protocol (MRP) with redundancy managerYok
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerYok
high speed redundancy protocol (HRP) with standby redundancyYok
High-availability Seamless Redundancy (HSR)Var
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Var
High-availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP) couplingYok
passive listeningYok
product functions / security
SSHVar
product functions / time
SICLOCK supportYok
NTPYok
SNTPVar
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMCIEC 61850, IEEE 1613
for EMC interference emissionEN 61000-6-4:2001 (Class A)
for immunity to EMCEN 61000-6-4:2001
for safety / from CSA and ULUL 508 E85972, CSA C22.2 no. 142-M1987
standards, specifications, approvals / other
railway application in accordance with EN 50155Var
railway application in accordance with EN 50121-4Var
railway application in accordance with EN 50124-1Yok
fire protection in accordance with EN 45545-2Var
IEC 61850-3Var
IEEE 1613Var
RoHS conformityVar
standards, specifications, approvals / marine classification
Royal Institution of Naval Architects (RINA)Var
product functions / general
MTBF67,64 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
