Siemens 6GK5116-0BA00-2AB2
SCALANCE XB116 unmanaged IE anahtar, 16x 10/100 Mbit/s RJ45 ports; için setting up küçük star ve hat topologies; LED diagnostics, IP20, yedekli besleme besleme, 24 V AC/DC manuel mevcut as a download.
product brand nameSCALANCE
product type designationXB116
transfer rate10, 100 Mbit/s
for power supply1
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value4,8 W
Ürün Hakkında
SCALANCE XB116 unmanaged IE anahtar, 16x 10/100 Mbit/s RJ45 ports; için setting up küçük star ve hat topologies; LED diagnostics, IP20, yedekli besleme besleme, 24 V AC/DC manuel mevcut as a download.
Siemens 6GK5116-0BA00-2AB2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXB116
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment16; RJ45
interfaces / other
for power supply1
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value4,8 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,2 A
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage0,6 A / 60 V
type of voltage / 2 / of the supply voltageAC
supply voltage / 2 / voltage range19,2... 28,8
ambient conditions
during operation0... 60 °C
during storage-40... +80 °C
during transport-40... +80 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

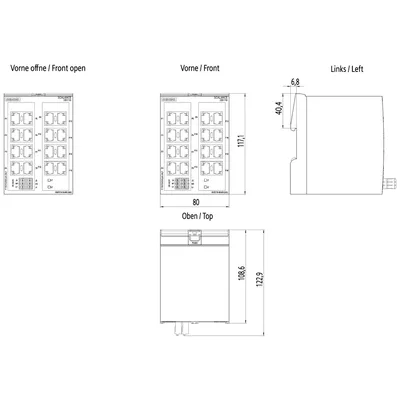

design, dimensions and weights
designcompact
width80 mm
height117 mm
depth109 mm
net weight0,375 kg
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
product functions / management, configuration, engineering
multiport mirroringYok
CoSVar
switch-managedYok
PROFINET conformity classA
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
standards, specifications, approvals
CE markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class B)
for immunity to EMC61000-6-2
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total252,5 kg
during manufacturing26,6 kg
during operation225,28 kg
after end of life0,6 kg
product functions / general
MTBF80 a
warranty period5 a
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing26,6 kg
global warming potential [CO2 eq] / during operation225,28 kg
global warming potential [CO2 eq] / after end of life0,6 kg
global warming potential [CO2 eq] / total252,5 kg
