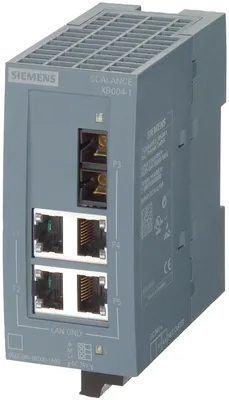

Siemens 6GK5004-1BF00-1AB2
SCALANCE XB004-1LD unmanaged Industrial Ethernet anahtar için 10/100 Mbit/s; için setting up küçük star ve hat topologies; LED diagnostics, IP20, 24 V AC/DC güç kaynağı, ile 4x 10/100 Mbit/s twisted pair ports ile RJ45 sockets; 1 x 100 Mbit/s single-mode glass fiber-optic kablo port ile SC socket; manuel mevcut as a download.
product brand nameSCALANCE
product type designationXB004-1LD
transfer rate10, 100 Mbit/s
for multimode0
for single mode (LD)1
for power supply1
Ürün Hakkında
SCALANCE XB004-1LD unmanaged Industrial Ethernet anahtar için 10/100 Mbit/s; için setting up küçük star ve hat topologies; LED diagnostics, IP20, 24 V AC/DC güç kaynağı, ile 4x 10/100 Mbit/s twisted pair ports ile RJ45 sockets; 1 x 100 Mbit/s single-mode glass fiber-optic kablo port ile SC socket; manuel mevcut as a download.
Siemens 6GK5004-1BF00-1AB2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXB004-1LD
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment4; RJ45
for multimode0
for single mode (LD)1
transmission method / of the optical interface100BaseLX LD
interfaces / other
for power supply1
for power supply3-pole terminal block
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value2,4 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,1 A
type of electrical connection / 1 / for power supply3-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage0,6 A / 60 V
type of voltage / 2 / of the supply voltageAC
supply voltage / 2 / voltage range19,2... 28,8
ambient conditions
during operation-10... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

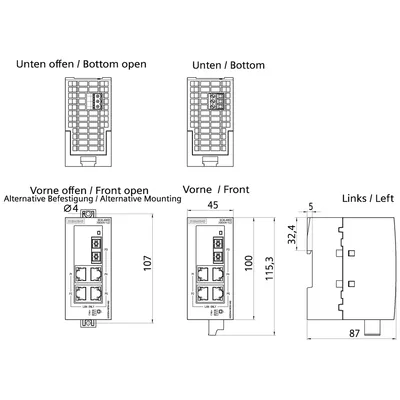

design, dimensions and weights
designBox
width45 mm
height100 mm
depth87 mm
net weight0,165 kg
35 mm DIN-rail mountingVar
wall mountingVar
S7-1500 rail mountingYok
product functions / management, configuration, engineering
multiport mirroringYok
CoSVar
switch-managedYok
PROFINET conformity classA
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
standards, specifications, approvals
CE markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total141,3 kg
during manufacturing15,99 kg
during operation125,18 kg
after end of life0,15 kg
product functions / general
MTBF238 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing15,99 kg
global warming potential [CO2 eq] / during operation125,18 kg
global warming potential [CO2 eq] / after end of life0,15 kg
global warming potential [CO2 eq] / total141,3 kg
Aksesuarlar 109
Siemens 6GK5004-1BF00-1AB2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5980-1CB10-0BA5 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1873-6AH05 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CC0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CA0 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AH10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AH20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AH30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AH50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AN10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AN15 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AN20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AN30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AN40 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AN50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AN80 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AT10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AT15 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AT20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6AT30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6CH30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6CH50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6CN10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6CN20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6CN50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6CT10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6GT10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6GT20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-6GT30 | Aksesuar · Cables · network cable optical | |
| 6XV1870-4BE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN30 | Aksesuar · Cables · network cable electrical | |
| 6GK1900-1LP00-0AB0 | Aksesuar | |
| 6XV1870-4HE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4HH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4HH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4HH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4HH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4HN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4HN15 | Aksesuar · Cables · network cable electrical |
İlgili Ürünler
Detayları Gör
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
Detayları Gör
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
Detayları Gör
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
Detayları Gör
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
Detayları Gör
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
Detayları Gör
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
Detayları Gör
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
Detayları Gör
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
Detayları Gör
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Öne Çıkan Ürünler
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
İlgili Aramalar
Siemens 6GK5004-1BF00-1AB2 fiyatSiemens 6GK5004-1BF00-1AB2 teklif alSiemens 6GK5004-1BF00-1AB2 satın al6GK5004-1BF00-1AB2 fiyat6GK5004-1BF00-1AB2 stok durumuSiemens yedek parçaSiemens 6GK5004-1BF00-1AB2 muadilSiemens 6GK5004-1BF00-1AB2 teknik özellikler
