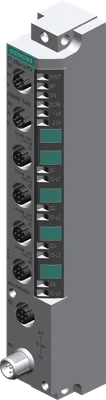

Siemens 6ES7148-6JD00-0AB0
***yedek parça*** SIMATIC DP, ET 200eco PN, IO-Link master, 4IO-L, 4xM12, koruma sınıfı IP67
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Isochronous modeYok
IRTYok
IO-LinkVar
DIVar
Ürün Hakkında
***yedek parça*** SIMATIC DP, ET 200eco PN, IO-Link master, 4IO-L, 4xM12, koruma sınıfı IP67
Siemens 6ES7148-6JD00-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Product function
Isochronous modeYok
IRTYok
Operating mode
IO-LinkVar
DIVar
DQVar; maks. 100 mA
Besleme gerilimi
Nominal değer (DC)24 V
Ters polarite korumasıVar
power supply according to NEC Class 2 requiredVar
Load voltage 2L+
Nominal değer (DC)24 V
Ters polarite korumasıVar; against destruction; load increasing
Giriş akımı
Current consumption, typ.100 mA
from supply voltage 1L+, max.4 A
from load voltage 2L+, max.4 A
Encoder supply
Number of outputs4
24 V enkoder beslemesi
Short-circuit protectionVar; per channel, electronic
Output current, max.500 mA; Per channel
Güç kaybı
Güç kaybı, tipik4,8 W
IO-Link
Port sayısı4
of which simultaneously controllable4
IO-Link protocol 1.0Var
IO-Link protocol 1.1Var
Transmission rate4,8 kBaud (COM1); 38,4 kBaud (COM2), 230 kBaud (COM3)
Size of process data, input per port32 bayt
Size of process data, input per module128 bytes + 4 bytes PQI
Size of process data, output per port32 bayt
Size of process data, output per module128 bayt
Memory size for device parameter2 kB; for her biri port
Master backupPossible with function block IO_LINK_MASTER
Configuration without S7-PCTPossible; autostart/manual function
Cable length unshielded, max.20 m
Operating modes
IO-LinkVar
DIVar
DQVar; maks. 100 mA
Connection of IO-Link devices
Port type AVar; via 3-core cable
Port type BVar; Additional device supply: maks. 2 A per port, maks. 4 A per module
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1
Arayüz tipleri
M12 portVar
Dahili switchVar
Servisler
— IRT with the option "high flexibility"Var
M12 port
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
İletim hızı, maks.100 Mbit/s
Protokoller
PROFINET IO protokolünü desteklerVar
PROFINET CBAYok
PROFIsafeYok
EtherNet/IPYok
Ortam yedekliliği
— MRPVar
Açık IE haberleşmesi
TCP/IPYok
SNMPVar
DCPVar
LLDPVar
pingVar
ARPVar
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar; green "ON" LED
Short-circuitVar; Device supply to M
Group errorVar; Red/yellow "SF/MT" LED
Potential separation
between the load voltagesVar
between load voltage and all other switching componentsYok
between Ethernet and electronicsVar
tested with
24 V DC circuits707 V DC (type test)
Test voltage for interface, rms value [Vrms]1.500 V; According to IEEE 802,3
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67
Standartlar, onaylar, sertifikalar
Suitable for safety-related tripping of standard modulesYok
Use in hazardous areas
Explosion protection category for gasATEX II 3G Ex nA II T4
Explosion protection category for dustATEX II 3D Ex tc IIIC T90°C Dc
Connection method
Design of electrical connection3/5-pin M12 round connectors
Ölçüler
Genişlik30 mm
Yükseklik200 mm
Derinlik49 mm
Ağırlık
Ağırlık, yaklaşık550 g
Aksesuarlar 99
Siemens 6ES7148-6JD00-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7194-6GA00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7194-6MA00-0AA0 | Aksesuar · Accessories | |
| 6ES7194-6CA00-0AA0 | Aksesuar · Connection module | |
| 6ES7194-6HB00-0AA0 | Aksesuar · Accessories | |
| 6ES7148-6CB00-0AA0 | Aksesuar · Voltage distributor | |
| 6ES7194-6KA00-0XA0 | Aksesuar · Cable | |
| 3RK1901-1KA00 | Aksesuar | |
| 3RK1901-1KA01 | Aksesuar | |
| 6GK1901-0DB20-6AA0 | Aksesuar | |
| 6GK1901-0DB20-6AA8 | Aksesuar | |
| 6GK1901-0DB10-6AA0 | Aksesuar | |
| 6GK1901-0DB10-6AA8 | Aksesuar | |
| 3RK1902-2DA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1840-3AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2D | Aksesuar · Cables · network cable electrical | |
| 6XV1840-4AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2L | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2S | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH50 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-2HB30 | Aksesuar | |
| 3RK1902-2HB50 | Aksesuar | |
| 3RK1902-2HC10 | Aksesuar | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-4BA00-5AA0 | Aksesuar | |
| 3RK1902-4DA00-5AA0 | Aksesuar | |
| 6XV1801-2C | Aksesuar · Cables · power cables | |
| 3RK1902-4PB15-3AA0 | Aksesuar | |
| 6GT2891-4MH50 | Aksesuar · Cables · serial cable | |
| 6GT2891-4MN10 | Aksesuar · Cables · serial cable | |
| 3RK1902-4HB15-5AA0 | Aksesuar | |
| 3RK1902-4HB50-5AA0 | Aksesuar | |
| 3RK1902-4HC01-5AA0 | Aksesuar | |
| 6XV1801-2CE50 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH10 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH15 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH20 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH30 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH50 | Aksesuar · Cables · power cables | |
| 6XV1801-2CN10 | Aksesuar · Cables · power cables | |
| 6XV1801-2CN15 | Aksesuar · Cables · power cables | |
| 6GK1907-0DB10-6AA3 | Aksesuar | |
| 6XV1801-5DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH50 | Aksesuar · Cables · power cables | |
| 6GK1907-0DC10-6AA3 | Aksesuar | |
| 3RK1902-4CA00-4AA0 | Aksesuar | |
| 3RT2900-1SB10 | Yedek parça · Miscellaneous accessories · labeling plates |
