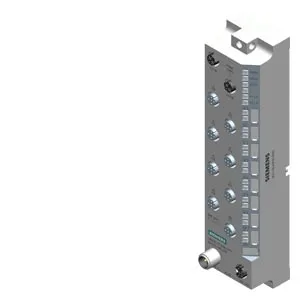

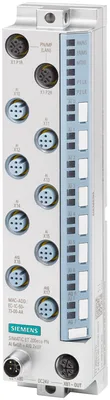

Siemens 6ES7146-6HF00-0BB0
SIMATIC ET 200eco PN, AI 6x U/I + AIQ 2x U/I, M12-L, 8x M12, 16-bit resolution, channel diagnostics için wire break ve short-circuit, shared cihaz ile 2 controllers, prioritized startup, MSI, MSO, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, koruma sınıfı IP67 / IP69K
HW functional statusFS02
Firmware sürümüV5.1.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
I&M dataVar; I&M0 to I&M3
Ürün Hakkında
SIMATIC ET 200eco PN, AI 6x U/I + AIQ 2x U/I, M12-L, 8x M12, 16-bit resolution, channel diagnostics için wire break ve short-circuit, shared cihaz ile 2 controllers, prioritized startup, MSI, MSO, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, koruma sınıfı IP67 / IP69K
Siemens 6ES7146-6HF00-0BB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
HW functional statusFS02
Firmware sürümüV5.1.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Manufacturer ID according to ODVA (VendorID)04E3H
Device ID according to ODVA (Product code)0FABH
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
IRTVar
Prioritized startupVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V18 veya üstü with HSP 0391
PROFINET from GSD version/GSD revisionGSDML V2.4.x
Multi Fieldbus Configuration Tool (MFCT)V1.5 veya üstü
Operating mode
MSIVar
MSOVar
CiR - Configuration in RUN
Calibration possible in RUNVar
Besleme gerilimi
power supply according to NEC Class 2 requiredYok
Load voltage 1L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar; against destruction
Giriş akımı
Akım tüketimi (nominal değer)110 mA; without load
from load voltage 1L+ (unswitched voltage)12 A; Maximum value
from load voltage 2L+, max.12 A; Maximum value
Encoder supply
Number of outputs8
24 V enkoder beslemesi
Short-circuit protectionVar; per channel, electronic
Output current, max.0,5 A; toplam current for encoder ve actuator supply: 2 A
Actuator supply
Number of outputs2
Short-circuit protectionVar; per channel, electronic
Çıkış akımı
nominal0,5 A; toplam current for encoder ve actuator supply: 2 A
Güç kaybı
Güç kaybı, tipik6,9 W
Address space per module
Inputs16 bayt; + 2 bytes for QI information
Outputs4 bayt
Submodules
Number of configurable submodules, max.2
Analog girişler
Analog giriş sayısı8; 6 AI fixed, 2 AIQ can be parameterized
For current measurement8
For voltage measurement8
permissible input voltage for voltage input (destruction limit), max.30 V
permissible input current for current input (destruction limit), max.protective shutoff as of 32 mA (typical)
Cycle time (all channels), min.sum of the basic conversion times
Giriş aralıkları (nominal değerler), gerilim
0 … +10 VVar
— Giriş direnci (0 … 10 V)100 kΩ
1 V to 5 VVar
— Input resistance (1 V to 5 V)100 kΩ
-10 V to +10 VVar
— Input resistance (-10 V to +10 V)100 kΩ
Input ranges (rated values), currents
0 … 20 mAVar; 17 V for 2-wire transformers
— Input resistance (0 to 20 mA)75 Ω
-20 mA to +20 mAVar; 17 V for 2-wire transformers
— Input resistance (-20 mA to +20 mA)75 Ω
4 mA to 20 mAVar; 17 V for 2-wire transformers
— Input resistance (4 mA to 20 mA)75 Ω
Kablo uzunluğu
Ekranlı, maks.30 m
Analog çıkışlar
Analog çıkış sayısı2; AIQ can be parameterized
Voltage output, short-circuit protectionVar
Voltage output, short-circuit current, max.40 mA
Current output, no-load voltage, max.19 V
Cycle time (all channels) max.1 ms
Output ranges, voltage
0 to 10 VVar
1 V to 5 VVar
-10 V to +10 VVar
Çıkış aralıkları, akım
0 … 20 mAVar
-20 mA to +20 mAVar
4 mA to 20 mAVar
Connection of actuators
for voltage output two-wire connectionVar
for voltage output four-wire connectionVar
for current output two-wire connectionVar
for current output four-wire connectionVar
Load impedance (in rated range of output)
with voltage outputs, min.1 kΩ
with voltage outputs, capacitive load, max.1 µF
with current outputs, max.600 Ω
with current outputs, inductive load, max.1 mH
Destruction limits against externally applied voltages and currents
Voltages at the outputs towards MANA30 V; to reference potential 1M
Kablo uzunluğu
Ekranlı, maks.30 m
Analog value generation for the inputs
Analog value displaySIMATIC S7 format
Measurement principleintegrating
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar; channel by channel
Integration time (ms)0,84 / 16,7 (50) / 20 (60) / 60 (180)
Basic conversion time, including integration time (ms)4,50 / 21,5 (54) / 24 (64) / 64 (184)
Interference voltage suppression for interference frequency f1 in Hzyok / 60 / 50 / 16,7
Smoothing of measured values
ParameterizableVar
Step: NoneVar; 1x cycle time
Step: lowVar; 4x cycle time
Step: MediumVar; 16x cycle time
Step: HighVar; 32x cycle time
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Settling time
for resistive load1 ms
for capacitive load1 ms
for inductive load1 ms
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerVar
for current measurement as 4-wire transducerVar
Errors/accuracies
Linearity error (relative to input range), (+/-)0,01 %
Temperature error (relative to input range), (+/-)0,006 %/K
Crosstalk between the inputs, max.-70 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,008 %
Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)0,02 %
Linearity error (relative to output range), (+/-)0,02 %
Temperature error (relative to output range), (+/-)0,002 %/K
Crosstalk between the outputs, max.-70 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0,008 %
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,15 %
Current, relative to input range, (+/-)0,2 %
Voltage, relative to output range, (+/-)0,1 %
Current, relative to output range, (+/-)0,15 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,1 %
Current, relative to input range, (+/-)0,1 %
Voltage, relative to output range, (+/-)0,08 %
Current, relative to output range, (+/-)0,1 %
Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.100 dB; basic conversion time 4,5 / 21,5 / 24 / 64 ms: 46 dB
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1
1. Arayüz
Arayüz tipiPROFINET with 100 Mbit/s full duplex (100BASE-TX)
Arayüz tipleri
M12 portVar; 2x M12, 4-pin, D-coded
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO cihazıVar
Açık IE haberleşmesiVar
Servisler
— IRTVar; 250 µs to 4 ms in 125 µs frame
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2
M12 port
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
İletim hızı, maks.100 Mbit/s
Protokoller
PROFINET IOVar
PROFIsafeYok
EtherNet/IPVar
Modbus TCPVar
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Var
— on S7-1500R/HVar
— on S7-400HVar
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— MRPVar
— MRPDYok
Servisler
— CIP Implicit MessagingVar
— CIP Explicit MessagingVar
— CIP SafetyYok
— Paylaşımlı cihazVar; 2x EtherNet/IP Scanner
— Number of scanners with shared device, max.2
Updating times
— Requested Packet Interval (RPI)2 ms
Yedeklilik modu
— DLR (Device Level Ring)Yok
Address area
— Address space per module, max.48 bayt; of which 44 bytes for inputs ve 4 bytes for outputs
— LargeForwardOpen (Class3)Yok
Servisler
— read coils (code=1)Var
— read discrete inputs (code=2)Var
— Read Holding Registers (Code=3)Var
— write single coil (code=5)Var
— write multiple coils (code=15)Var
— Write Multiple Registers (Code=16)Var
— Parameter change by masterYok
— Modbus TCP Security ProtocolYok
Address space per station
— Address space per station, max.48 bayt; of which 44 bytes for inputs ve 4 bytes for outputs
— Access-consistent address space2 bayt
Updating time
— I/O request interval2 ms
Connections
— number of connections per device12
Açık IE haberleşmesi
TCP/IPVar; (only EtherNet/IP veya Modbus TCP)
SNMPVar
LLDPVar
ARPVar
Interrupts/diagnostics/status information
Substitute values connectableVar; channel by channel, parameterizable
Alarms
Diagnostic alarmVar; Parameterizable
Maintenance interruptVar; Parameterizable
Limit value alarmVar; two upper ve two lower limit values in her biri case
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar
— ParametrelenebilirVar
Wire breakVar; 4 mA to 20 mA ve 1 V to 5 V
short-circuitVar; encoder ve actuator supply module to ground, for output type voltage; channel by channel
Overflow/UnderflowVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
NS LEDVar; green/red LED
MS LEDVar; green/red LED
IO LEDVar; red/green/yellow LEDs
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
Connection display LINK TX/RXVar; green LED, only link
Potential separation
between the load voltagesVar
between Ethernet and electronicsVar
Potential separation channels
Kanallar arasıYok
between the channels and the power supply of the electronicsYok
Permissible potential difference
Between the inputs and MANA (UCM)AC 10 Vpp to reference potential 1M
tested with
24 V DC circuits707 V DC (type test)
Test voltage for interface, rms value [Vrms]1.500 V; According to IEEE 802,3
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67/69K
Standartlar, onaylar, sertifikalar
Suitable for safety-related tripping of standard modulesVar; from FS01
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Use in hazardous areas
Explosion protection category for gasATEX, UKEX, IECEx, CCCEx for Zone 2
Explosion protection category for dustATEX, UKEX, IECEx, CCCEx for Zone 22
Security
signed firmware updateVar
safely removing dataVar
Çalışma ortam sıcaklığı
min.-40 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Ambient air temperature-barometric pressure-altitudeUp to maks. 5.000 m, installation height > 2.000 m additional restrictions
Connection method
Design of electrical connection4/5-pin M12 circular connectors
Design of electrical connection for the inputs and outputsM12, 5-pin, A-coded
Ölçüler
Genişlik45 mm
Yükseklik200 mm
Derinlik48 mm
Ağırlık
Ağırlık, yaklaşık795 g
Aksesuarlar 80
Siemens 6ES7146-6HF00-0BB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7194-6GA00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7194-6MA00-0AA0 | Aksesuar · Accessories | |
| 3RK1901-1KA00 | Aksesuar | |
| 3RK1901-1KA01 | Aksesuar | |
| 6GK1901-0DB20-6AA0 | Aksesuar | |
| 6GK1901-0DB20-6AA8 | Aksesuar | |
| 6GK1901-0DB10-6AA0 | Aksesuar | |
| 6GK1901-0DB10-6AA8 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1840-3AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2D | Aksesuar · Cables · network cable electrical | |
| 6XV1840-4AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2L | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2S | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH50 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-2HB30 | Aksesuar | |
| 3RK1902-2HB50 | Aksesuar | |
| 3RK1902-2HC10 | Aksesuar | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6GK1906-0EA00 | Aksesuar | |
| 6XV1801-6EE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6EN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6EN15 | Aksesuar · Cables · power cables | |
| 6ES7194-2BA00-0AA0 | Yedek parça · label |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
İlgili Aramalar
Siemens 6ES7146-6HF00-0BB0 fiyatSiemens 6ES7146-6HF00-0BB0 teklif alSiemens 6ES7146-6HF00-0BB0 satın al6ES7146-6HF00-0BB0 fiyat6ES7146-6HF00-0BB0 stok durumuSiemens yedek parçaSiemens 6ES7146-6HF00-0BB0 muadilSiemens 6ES7146-6HF00-0BB0 teknik özellikler
