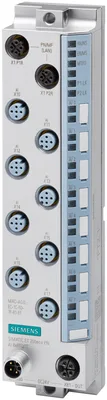

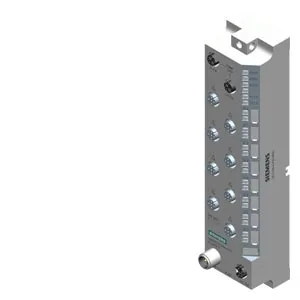

Siemens 6ES7144-6JF00-0BB0
SIMATIC ET 200eco PN, AI 8xRTD/TC, M12-L, 8x M12, 16-bit resolution, channel diagnostics için wire break at giriş, shared cihaz ile 2 controllers, prioritized startup, MSI, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, koruma sınıfı IP67 / IP69K
HW functional statusFS03
Firmware sürümüV5.1.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
I&M dataVar; I&M0 to I&M3
Ürün Hakkında
SIMATIC ET 200eco PN, AI 8xRTD/TC, M12-L, 8x M12, 16-bit resolution, channel diagnostics için wire break at giriş, shared cihaz ile 2 controllers, prioritized startup, MSI, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, koruma sınıfı IP67 / IP69K
Siemens 6ES7144-6JF00-0BB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
HW functional statusFS03
Firmware sürümüV5.1.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Manufacturer ID according to ODVA (VendorID)04E3H
Device ID according to ODVA (Product code)0FAAH
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
IRTVar
Prioritized startupVar
Measuring range scalableVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V17 veya üstü with HSP 0369
PROFINET from GSD version/GSD revisionGSDML V2.4.x
Multi Fieldbus Configuration Tool (MFCT)from V1.3 SP1
Operating mode
MSIVar
CiR - Configuration in RUN
Calibration possible in RUNVar
Besleme gerilimi
power supply according to NEC Class 2 requiredYok
Load voltage 1L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar; against destruction
Giriş akımı
Akım tüketimi (nominal değer)85 mA; without load
from load voltage 1L+ (unswitched voltage)12 A; Maximum value
from load voltage 2L+, max.12 A; Maximum value
Güç kaybı
Güç kaybı, tipik6,3 W
Address space per module
Inputs16 bayt; + 1 bayt for QI information
Submodules
Number of configurable submodules, max.2
Analog girişler
Analog giriş sayısı8
For voltage measurement8
For resistance/resistance thermometer measurement8
For thermocouple measurement8
permissible input voltage for voltage input (destruction limit), max.24 V
Constant measurement current for resistance-type transmitter, typ.0,7 mA
Cycle time (all channels), min.Sum of the basic conversion times ve additional processing times (depending on the parameterization of the active channels); for line compensation in case of a three-wire connection, an additional cycle is necessary
Technical unit for temperature measurement adjustableVar; Degrees Celsius / degrees Fahrenheit / Kelvin
Giriş aralıkları (nominal değerler), gerilim
-80 mV to +80 mVVar; 16 bit incl. sign
— Input resistance (-80 mV to +80 mV)10 MΩ
Input ranges (rated values), thermocouples
Type BVar; 16 bit incl. sign
— Input resistance (Type B)10 MΩ
Type CVar; 16 bit incl. sign
— Input resistance (Type C)10 MΩ
Type EVar; 16 bit incl. sign
— Input resistance (Type E)10 MΩ
Type JVar; 16 bit incl. sign
— Input resistance (type J)10 MΩ
Type KVar; 16 bit incl. sign
— Input resistance (Type K)10 MΩ
Type LVar; 16 bit incl. sign
— Input resistance (Type L)10 MΩ
Type NVar; 16 bit incl. sign
— Input resistance (Type N)10 MΩ
Type RVar; 16 bit incl. sign
— Input resistance (Type R)10 MΩ
Type SVar; 16 bit incl. sign
— Input resistance (Type S)10 MΩ
Type TVar; 16 bit incl. sign
— Input resistance (Type T)10 MΩ
Type UVar; 16 bit incl. sign
— Input resistance (Type U)10 MΩ
Input ranges (rated values), resistance thermometer
Ni 100Var; Standard/climate
— Input resistance (Ni 100)10 MΩ
Ni 1000Var; Standard/climate
— Input resistance (Ni 1000)10 MΩ
Ni 120Var; Standard/climate
— Input resistance (Ni 120)10 MΩ
Ni 200Var; Standard/climate
— Input resistance (Ni 200)10 MΩ
Ni 500Var; Standard/climate
— Input resistance (Ni 500)10 MΩ
Pt 100Var; Standard/climate
— Input resistance (Pt 100)10 MΩ
Pt 1000Var; Standard/climate
— Input resistance (Pt 1000)10 MΩ
Pt 200Var; Standard/climate
— Input resistance (Pt 200)10 MΩ
Pt 500Var; Standard/climate
— Input resistance (Pt 500)10 MΩ
Input ranges (rated values), resistors
0 to 150 ohmsVar
— Input resistance (0 to 150 ohms)10 MΩ
0 to 300 ohmsVar
— Input resistance (0 to 300 ohms)10 MΩ
0 to 600 ohmsVar
— Input resistance (0 to 600 ohms)10 MΩ
0 to 3000 ohmsVar
— Input resistance (0 to 3000 ohms)10 MΩ
0 to 6000 ohmsVar
— Input resistance (0 to 6000 ohms)10 MΩ
Temperature compensation
— ParametrelenebilirVar
— internal temperature compensationVar
— external temperature compensation with compensations socketVar
— dynamic reference temperature valueVar
— fixed reference temperatureVar
Kablo uzunluğu
Ekranlı, maks.30 m
Analog value generation for the inputs
Analog value displaySIMATIC S7 format
Measurement principleintegrating
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar; channel by channel
Integration time (ms)0,84 / 16,7 (50) / 20 (60) / 60 (180)
Basic conversion time, including integration time (ms)4,50 / 21,5 (54) / 24 (64) / 64 (184)
— additional conversion time for wire-break monitoring2 ms; for 3/4-wire transducer 4 ms
Interference voltage suppression for interference frequency f1 in Hzyok / 60 / 50 / 16,7
Smoothing of measured values
parameterizableVar
Step: NoneVar; 1x cycle time
Step: lowVar; 4x cycle time
Step: MediumVar; 16x cycle time
Step: HighVar; 32x cycle time
Connection of signal encoders
for resistance measurement with two-wire connectionVar
for resistance measurement with three-wire connectionVar
for resistance measurement with four-wire connectionVar
Errors/accuracies
Linearity error (relative to input range), (+/-)0,01 %; ±0,1 % for resistance thermometers ve resistance
Temperature error (relative to input range), (+/-)0,0009 %/K; ±0,005 % / K thermocouple
Crosstalk between the inputs, max.-70 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,008 %
Temperature error of internal compensation±1,5 °C
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,2 %
Resistance, relative to input range, (+/-)0,1 %; See deviations in the manual
Resistance thermometer, relative to input range, (+/-)0,1 %; See deviations in the manual
Thermocouple, relative to input range, (+/-)0,3 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,1 %
Resistance, relative to input range, (+/-)0,05 %; See deviations in the manual
Resistance thermometer, relative to input range, (+/-)0,05 %; See deviations in the manual
Thermocouple, relative to input range, (+/-)0,15 %
Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.100 dB; basic conversion time 4,5 / 21,5 / 24 / 64 ms: 46 dB
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1
1. Arayüz
Arayüz tipiPROFINET with 100 Mbit/s full duplex (100BASE-TX)
Arayüz tipleri
M12 portVar; 2x M12, 4-pin, D-coded
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO DeviceVar
Açık IE haberleşmesiVar
Servisler
— IRTVar; 250 µs to 4 ms in 125 µs frame
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2
M12 port
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
İletim hızı, maks.100 Mbit/s
Protokoller
PROFINET IO protokolünü desteklerVar
PROFIsafeYok
EtherNet/IPVar
Modbus TCPVar
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Var
— on S7-1500R/HVar
— on S7-400HVar
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— MRPVar
— MRPDYok
Servisler
— CIP Implicit MessagingVar
— CIP Explicit MessagingVar
— CIP SafetyYok
— Paylaşımlı cihazVar; 2x EtherNet/IP Scanner
— Number of scanners with shared device, max.2
Updating times
— Requested Packet Interval (RPI)2 ms
Yedeklilik modu
— DLR (Device Level Ring)Yok
Address area
— Address space per module, max.38 bayt
— LargeForwardOpen (Class3)Yok
Servisler
— read coils (code=1)Var
— read discrete inputs (code=2)Var
— Read Holding Registers (Code=3)Var
— write single coil (code=5)Var
— write multiple coils (code=15)Var
— Write Multiple Registers (Code=16)Var
— Parameter change by masterYok
— Modbus TCP Security ProtocolYok
Address space per station
— Address space per station, max.38 bayt
— Access-consistent address space2 bayt
Updating time
— I/O request interval2 ms
Connections
— number of connections per device12
Açık IE haberleşmesi
TCP/IPVar; (only EtherNet/IP veya Modbus TCP)
SNMPVar
LLDPVar
ARPVar
Alarms
Diagnostic alarmVar; Parameterizable
Maintenance interruptVar; Parameterizable
Limit value alarmVar; two upper ve two lower limit values in her biri case
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar
— ParametrelenebilirVar
Wire breakVar; Not for ±80 mV
Overflow/UnderflowVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
NS LEDVar; green/red LED
MS LEDVar; green/red LED
IO LEDVar; red/green/yellow LEDs
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
Connection display LINK TX/RXVar; green LED, only link
Potential separation
between the load voltagesVar
between Ethernet and electronicsVar
Potential separation channels
Kanallar arasıYok
between the channels and the power supply of the electronicsVar
tested with
24 V DC circuits707 V DC (type test)
Test voltage for interface, rms value [Vrms]1.500 V; According to IEEE 802,3
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67/69K
Standartlar, onaylar, sertifikalar
Suitable for safety-related tripping of standard modulesVar; from FS01
Suitable for applications according to AMS 2750Var; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9Var; based on AMS 2750 F
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Use in hazardous areas
Explosion protection category for gasATEX, UKEX, IECEx, CCCEx for Zone 2
Explosion protection category for dustATEX, UKEX, IECEx, CCCEx for Zone 22
Security
signed firmware updateVar
safely removing dataVar
Çalışma ortam sıcaklığı
min.-40 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Ambient air temperature-barometric pressure-altitudeUp to maks. 5.000 m, installation height > 2.000 m additional restrictions
Connection method
Design of electrical connection4/5-pin M12 circular connectors
Design of electrical connection for the inputs and outputsM12, 5-pin, A-coded
Ölçüler
Genişlik45 mm
Yükseklik200 mm
Derinlik48 mm
Ağırlık
Ağırlık, yaklaşık780 g
Aksesuarlar 80
Siemens 6ES7144-6JF00-0BB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7194-6GA00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7194-6MA00-0AA0 | Aksesuar · Accessories | |
| 3RK1901-1KA00 | Aksesuar | |
| 3RK1901-1KA01 | Aksesuar | |
| 6GK1901-0DB20-6AA0 | Aksesuar | |
| 6GK1901-0DB20-6AA8 | Aksesuar | |
| 6GK1901-0DB10-6AA0 | Aksesuar | |
| 6GK1901-0DB10-6AA8 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1840-3AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2D | Aksesuar · Cables · network cable electrical | |
| 6XV1840-4AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2L | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2S | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH50 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-2HB30 | Aksesuar | |
| 3RK1902-2HB50 | Aksesuar | |
| 3RK1902-2HC10 | Aksesuar | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6GK1906-0EA00 | Aksesuar | |
| 6XV1801-6EE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6EN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6EN15 | Aksesuar · Cables · power cables | |
| 6ES7194-2BA00-0AA0 | Yedek parça · label |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
İlgili Aramalar
Siemens 6ES7144-6JF00-0BB0 fiyatSiemens 6ES7144-6JF00-0BB0 teklif alSiemens 6ES7144-6JF00-0BB0 satın al6ES7144-6JF00-0BB0 fiyat6ES7144-6JF00-0BB0 stok durumuSiemens yedek parçaSiemens 6ES7144-6JF00-0BB0 muadilSiemens 6ES7144-6JF00-0BB0 teknik özellikler
