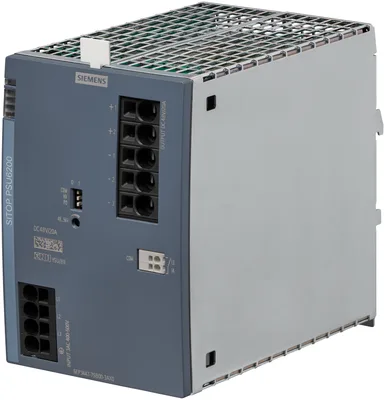

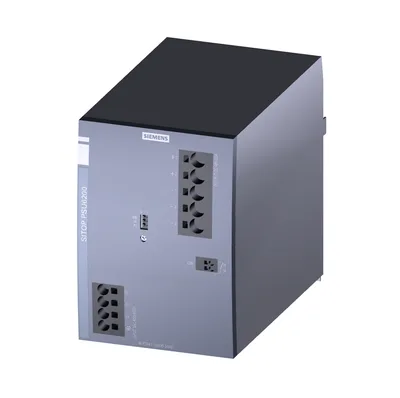

Siemens 6EP3447-7SB00-3AX0
SITOP PSU6200 48 V/20 A Stabilized güç kaynağı giriş: 400 - 500 V AC çıkış: 48 V DC/20 A ile diagnostic arayüz
product brand nameSITOP
product type designationPSU6200
product designationPower supply SITOP PSU6200
type of current supply48 V/20 A
type of the power supply network3-phase AC veya DC
phase number3
Ürün Hakkında
SITOP PSU6200 48 V/20 A Stabilized güç kaynağı giriş: 400 - 500 V AC çıkış: 48 V DC/20 A ile diagnostic arayüz
Siemens 6EP3447-7SB00-3AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU6200
product designationPower supply SITOP PSU6200
type of current supply48 V/20 A
input
type of the power supply network3-phase AC veya DC
phase number3
voltage curve at inputAC/DC
minimum rated value400 V
maximum rated value500 V
initial value323 V
full-scale value576 V
supply voltage at DC500... 550 V
input voltage at DC450... 600 V
line frequency50/60 Hz
line frequency47... 63 Hz
buffering time for rated value of the output current in the event of power failure minimum18 ms
operating condition of the mains bufferingVin = 400 V
at rated input voltage 400 V1,5 A
at rated input voltage 500 V1,2 A
current limitation of inrush current at 25 °C maximum10 A
fuse protection type in the feederthree-poled coupled circuit breaker from 4 A characteristic C to 16 A characteristic C veya circuit breaker 3RV2011-1EA10 (setting 4 A) veya 3RV2711-1ED10 (UL 489)
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
number of outputs1
output voltage at DC rated value48 V
at output 1 at DC rated value48 V
at output 1 at DC48 V
output voltage adjustableVar; via potentiometer
adjustable output voltage48... 56 V; maks. 960 W (1152 W up to 45°C)
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,2 %
on slow fluctuation of ohm loading0,1 %
maximum100 mV
typical80 mV
maximum80 mV
typical30 mV
display version for normal operationGreen LED for 48 V OK
type of signal at outputElectronic contact (NO contact, contact rating 30 V DC/0,1 A) for DC O.K. veya diagnostic interface
behavior of the output voltage when switching onOvershoot of Vout < 1 %
response delay maximum0,5 s
typical200 ms
rated value20 A
rated range0... 20 A; 24 A up to +45°C; +60... +70 °C: Derating 3%/K
supplied active power typical960 W
on short-circuiting during the start-up typical30 A
at short-circuit during operation typical30 A
parallel switching of outputscan be set with DIP switch
bridging of equipmentVar; switchable characteristic
number of parallel-switched equipment resources for increasing the power2
efficiency
efficiency in percent96,6 %
at rated output voltage for rated value of the output current typical32 W
during no-load operation maximum4,5 W
closed-loop control
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical4 %
load step 10 to 90% typical4 ms
load step 90 to 10% typical10 ms
maximum10 ms
protection and monitoring
design of the overvoltage protection< 60 V
property of the output short-circuit proofVar
design of short-circuit protectionShutdown ve periodic restart attempts
typical24 A
in normal operationoverload capability 150 % Iout rated up to 5 s/min
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for mains harmonics limitationEN 61000-3-2
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
UKCA markingVar
EAC approvalVar
Regulatory Compliance Mark (RCM)Var
NEC Class 2Yok
SEMI F47Var
BISVar; R-41183539
CB-certificateVar
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total865 kg
during manufacturing53,9 kg
during operation809,6 kg
after end of life0,89 kg
ambient conditions
during operation-30... +70 °C; with natural convection a monotonically increasing start-up from -25 °C, safe start-up from -40 °C
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

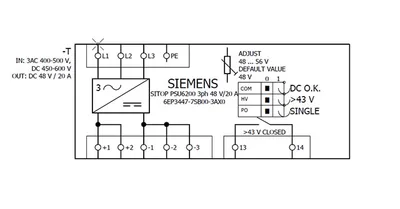

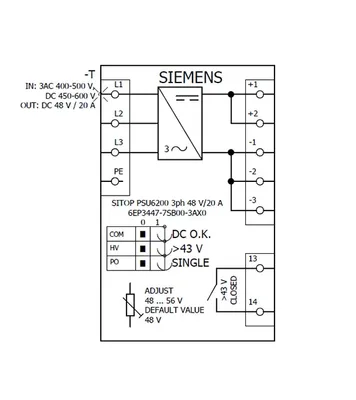

connection method
type of electrical connectionpush-in terminals
at inputL1, L2, L3, PE: push-in for 0,5... 10 mm²
at output+1, +2, -1, -2, -3: push-in for 0,75... 16 mm²
for auxiliary contacts13, 14 (alarm signal): 1 push-in terminal her biri for 0,2... 1,5 mm²

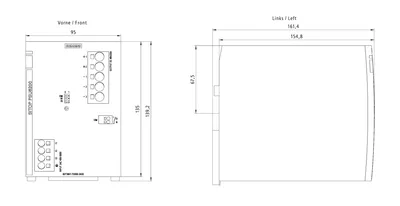

mechanical data
width × height × depth of the enclosure95 × 135 × 155 mm
installation width × mounting height95 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight2,1 kg
accessories
electrical accessoriesBuffer module, redundancy module
mechanical accessoriesIdentification labels SIMATIC ET 200SP 6ES7193-6LF30-0AW0
further information internet links
identification linkVar; acc. to IEC 61406-1:2022
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing53,9 kg
global warming potential [CO2 eq] / during operation809,6 kg
global warming potential [CO2 eq] / after end of life0,89 kg
global warming potential [CO2 eq] / total865 kg
Aksesuarlar 4
Siemens 6EP3447-7SB00-3AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
