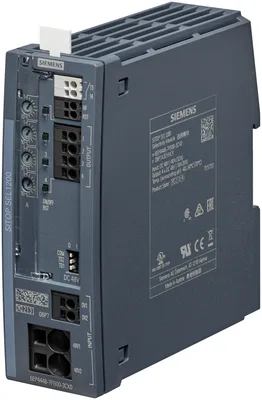

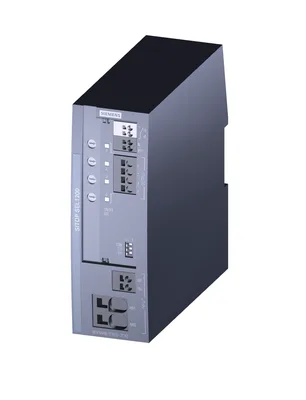

Siemens 6EP4448-7FB00-3CX0
SITOP SEL1200 48 V 10 A selectivity modül 4-channel ile anahtarlama characteristic giriş: 48 V DC/40 A çıkış: 48 V DC/4x 10 A threshold value ayarlanabilir 1-10 A ile monitoring arayüz
product brand nameSITOP
product type designationSEL1200
product designationSITOP Selectivity module
type of the power supply networkControlled DC voltage
supply voltage at DC rated value48 V
input voltage at DC40... 56 V
Ürün Hakkında
SITOP SEL1200 48 V 10 A selectivity modül 4-channel ile anahtarlama characteristic giriş: 48 V DC/40 A çıkış: 48 V DC/4x 10 A threshold value ayarlanabilir 1-10 A ile monitoring arayüz
Siemens 6EP4448-7FB00-3CX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationSEL1200
product designationSITOP Selectivity module
type of current supplyselectivity module, 4 x 1... 10 A com. sign. contact veya diagnostics monitor
input
type of the power supply networkControlled DC voltage
supply voltage at DC rated value48 V
input voltage at DC40... 56 V
overvoltage overload capability60 V
input current at rated input voltage 24 V rated value40 A
output
voltage curve at outputcontrolled DC voltage
formula for output voltageVin - yaklaşık 0,2 V
relative overall tolerance of the voltage noteIn accordance with the supplying input voltage
number of outputs4
output current up to 60 °C per output rated value10 A; +60... +70 °C: Derating 3%/K
adjustable current response value current of the current-dependent overload release1... 10 A
type of response value settingvia potentiometer
response delay maximum5 s
product feature parallel switching of outputsVar
type of outputs connectionswitch-on of all outputs after power-up of the supply voltage > 31 V, delay time of 25 ms, 200 ms, 500 ms, veya "load-optimized" via DIP switch configurable for sequential switch-on
efficiency
efficiency in percent99 %
power loss [W] at rated output voltage for rated value of the output current typical10 W
switch-off characteristic
of the excess currentIout = 1,0...1.5 x set value, switch-off after yaklaşık 5 s
of the current limitationIout = 1,5 x set value, switch-off after tipik 100 ms
of the immediate switch-offIout > set value ve Vin < 38 V, switch-off after yaklaşık 0,5 ms
design of the reset device/resetting mechanismvia sensor per output
remote reset functionnon-isolated 24/48 V input (signal level "high" > 15 V)
protection and monitoring
fuse protection type at input15 A per output (not accessible)
display version for normal operationThree-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"
design of the switching contact for signaling functionFloating common signal contact veya status signal output (pulse/pause signal that can be evaluated via SIMATIC function block)
safety
galvanic isolation between input and output at switch-offYok
standard for safetyaccording to EN 62368-1
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 61000-6-3
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1) File E197259
UKCA markingVar
EAC approvalVar
CB-certificateVar
MTBF at 40 °C595.000 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total287,5 kg
during manufacturing13,1 kg
during operation274 kg
after end of life0,3 kg
Siemens eco profile (SEP)Siemens EcoTech
ambient conditions
during operation-40... +70 °C; with natural convection; +60... +70 °C: Derating 3%/K
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionPush-in
at input24V1, 24V2: push-in for 0,5... 16 mm²; 0V1, 0V2: push-in for 0,5... 4 mm²
at outputOutput 1... 4: push-in for 0,5... 4 mm²
for auxiliary contactsRST: push-in for 0,2... 1,5 mm²
for signaling contact13, 14: push-in for 0,2... 1,5 mm²
mechanical data

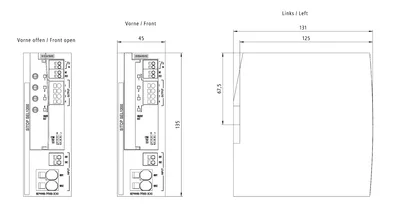

width × height × depth of the enclosure45 × 135 × 125 mm
installation width × mounting height45 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,3 kg
further information internet links
identification linkVar; acc. to IEC 61406-1:2022
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
