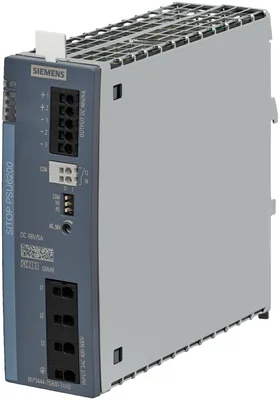

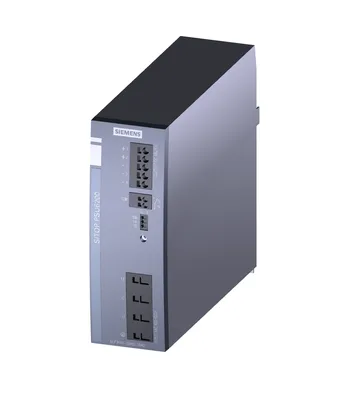

Siemens 6EP3444-7SB00-3AX0

SITOP PSU6200 48 V/5 A Stabilized güç kaynağı giriş: 400 - 500 V AC çıkış: 48 V DC/5 A ile diagnostic arayüz

SiemensMFR # 6EP3444-7SB00-3AX0SKU # YLS3IZACMWK1L7D

product brand nameSITOP

product type designationPSU6200

product designationPower supply SITOP PSU6200

type of current supply48 V/5 A

type of the power supply network3-phase AC veya DC

phase number3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP PSU6200 48 V/5 A Stabilized güç kaynağı giriş: 400 - 500 V AC çıkış: 48 V DC/5 A ile diagnostic arayüz

Siemens 6EP3444-7SB00-3AX0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationPSU6200

product designationPower supply SITOP PSU6200

type of current supply48 V/5 A

input

type of the power supply network3-phase AC veya DC

phase number3

voltage curve at inputAC/DC

minimum rated value400 V

maximum rated value500 V

initial value323 V

full-scale value576 V

supply voltage at DC500... 550 V

input voltage at DC450... 600 V

line frequency50/60 Hz

line frequency47... 63 Hz

buffering time for rated value of the output current in the event of power failure minimum30 ms

operating condition of the mains bufferingVin = 400 V

at rated input voltage 400 V0,39 A

at rated input voltage 500 V0,31 A

current limitation of inrush current at 25 °C maximum12 A

fuse protection type in the feederthree-poled coupled circuit breaker from 4 A characteristic C to 16 A characteristic C veya circuit breaker 3RV2011-1EA10 (setting 4 A) veya 3RV2711-1ED10 (UL 489)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

number of outputs1

output voltage at DC rated value48 V

at output 1 at DC rated value48 V

at output 1 at DC48 V

output voltage adjustableVar; via potentiometer

adjustable output voltage48... 56 V; maks. 240 W (288 W up to 45°C)

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,2 %

on slow fluctuation of ohm loading0,2 %

maximum40 mV

typical10 mV

maximum40 mV

typical10 mV

display version for normal operationGreen LED for 48 V OK

type of signal at outputElectronic contact (NO contact, contact rating 30 V DC/0,1 A) for DC O.K. veya diagnostic interface

behavior of the output voltage when switching onOvershoot of Vout < 2 %

response delay maximum0,5 s

typical200 ms

rated value5 A

rated range0... 5 A; 6 A up to +45°C; +60... +70 °C: Derating 3%/K

supplied active power typical240 W

on short-circuiting during the start-up typical7,5 A

at short-circuit during operation typical7,5 A

parallel switching of outputscan be set with DIP switch

bridging of equipmentVar; switchable characteristic

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent95,6 %

at rated output voltage for rated value of the output current typical11 W

during no-load operation maximum2,9 W

closed-loop control

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical1 %

load step 10 to 90% typical5 ms

load step 90 to 10% typical5 ms

maximum5 ms

protection and monitoring

design of the overvoltage protection< 60 V

property of the output short-circuit proofVar

design of short-circuit protectionShutdown ve periodic restart attempts

typical7,5 A

in normal operationoverload capability 150 % Iout rated up to 5 s/min

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3,5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259

UKCA markingVar

EAC approvalVar

Regulatory Compliance Mark (RCM)Var

NEC Class 2Yok

SEMI F47Var

BISVar; R-41188271

CB-certificateVar

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalVar

American Bureau of Shipping Europe Ltd. (ABS)Var

French marine classification society (BV)Yok

Det Norske Veritas (DNV)Var

Lloyds Register of Shipping (LRS)Yok

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total302 kg

during manufacturing23,1 kg

during operation278,2 kg

after end of life0,38 kg

ambient conditions

during operation-30... +70 °C; with natural convection a monotonically increasing start-up from -25 °C, safe start-up from -40 °C

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

connection method

type of electrical connectionpush-in terminals

at inputL1, L2, L3, PE: push-in for 0,5... 6 mm²

at output+1, +2, -1, -2, -3: push-in for 0,5... 2,5 mm²

for auxiliary contacts13, 14 (alarm signal): 1 push-in terminal her biri for 0,2... 1,5 mm²

mechanical data

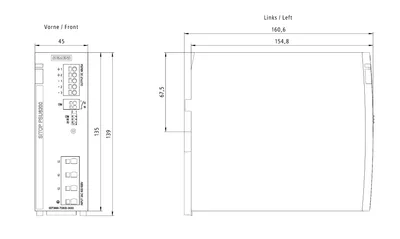

width × height × depth of the enclosure45 × 135 × 155 mm

installation width × mounting height45 mm × 225 mm

top45 mm

bottom45 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight0,9 kg

accessories

electrical accessoriesRedundancy module

further information internet links

identification linkVar; acc. to IEC 61406-1:2022

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing23,1 kg

global warming potential [CO2 eq] / during operation278,2 kg

global warming potential [CO2 eq] / after end of life0,38 kg

global warming potential [CO2 eq] / total302 kg

Aksesuarlar 4

Siemens 6EP3444-7SB00-3AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6EP4448-7FB00-3CX0	Aksesuar · Selectivity module
6EP4346-7RB00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
6ES7193-6LF30-0AW0	Aksesuar · label
6EP4548-7XB00-3AX0	Aksesuar · Chopper module · #NO_DATA#
