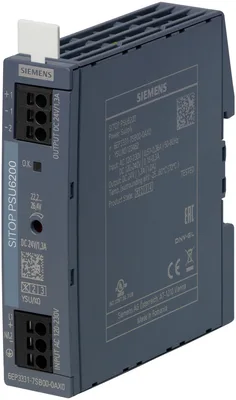

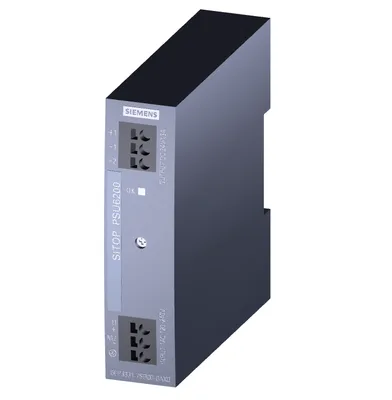

Siemens 6EP3331-7SB00-0AX0
SITOP PSU6200 24 V/1,3 A stabilized güç kaynağı giriş: 120 - 240 V AC (120 - 240 V DC) çıkış: 24 V DC/1,3 A
product brand nameSITOP
product type designationPSU6200
product designationPower supply SITOP PSU6200
type of current supply24 V/1,3 A
type of the power supply network1-phase AC veya DC
phase number1
Ürün Hakkında
SITOP PSU6200 24 V/1,3 A stabilized güç kaynağı giriş: 120 - 240 V AC (120 - 240 V DC) çıkış: 24 V DC/1,3 A
Siemens 6EP3331-7SB00-0AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU6200
product designationPower supply SITOP PSU6200
type of current supply24 V/1,3 A
input
type of the power supply network1-phase AC veya DC
phase number1
voltage curve at inputAC/DC
minimum rated value120 V
maximum rated value240 V
initial value85 V
full-scale value264 V
supply voltage at DC120... 240 V
input voltage at DC110... 275 V
at 50 Hz240 V
at 60 Hz120 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputVar
overvoltage overload capability300 V AC for 30 s
buffering time for rated value of the output current in the event of power failure minimum150 ms
operating condition of the mains bufferingVin = 240 V
at rated input voltage 120 V0,6 A
at rated input voltage 240 V0,3 A
current limitation of inrush current at 25 °C maximum32 A
fuse protection type3,15 A
fuse protection type in the feederCircuit breaker from 4 A characteristic C/6 A characteristic B to 16 A characteristic C veya circuit breaker 3RV2011-1EA10 (setting 4 A) veya 3RV2711-1ED10 (UL 489)
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
number of outputs1
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage22,2... 26,4 V; maks. 31,2 W
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,1 %
on slow fluctuation of ohm loading0,1 %
maximum30 mV
typical20 mV
maximum30 mV
typical20 mV
display version for normal operationGreen LED for 24 V OK
behavior of the output voltage when switching onOvershoot of Vout yaklaşık 3 %
response delay maximum1 s
typical50 ms
rated value1,3 A
rated range0... 1,3 A; +60... +70 °C: Derating 2,5%/K
supplied active power typical31,2 W
on short-circuiting during the start-up typical1,3 A
at short-circuit during operation typical1,3 A
bridging of equipmentYok
efficiency
efficiency in percent86,3 %
at rated output voltage for rated value of the output current typical5 W
during no-load operation maximum0,8 W
closed-loop control
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical2 %
load step 10 to 90% typical0,5 ms
load step 90 to 10% typical0,5 ms
maximum1 ms
protection and monitoring
design of the overvoltage protection< 32 V
property of the output short-circuit proofVar
design of short-circuit protectionShutdown ve periodic restart attempts
typical1,6 A
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for mains harmonics limitationEN 61000-3-2
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
UKCA markingVar
EAC approvalVar
Regulatory Compliance Mark (RCM)Var
NEC Class 2Var; according to UL1310, File E151273
SEMI F47Var
BISVar; R-41183539
CB-certificateVar
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total140,9 kg
during manufacturing5,2 kg
during operation135,6 kg
after end of life0,15 kg
ambient conditions
during operation-25... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

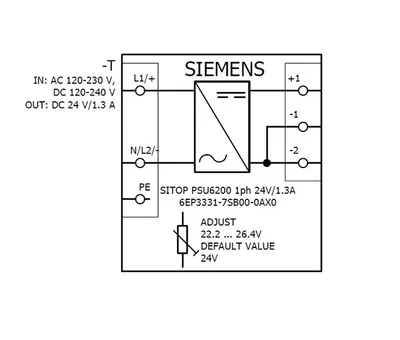

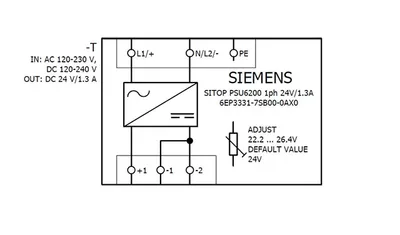

connection method
type of electrical connectionpush-in terminals
at inputL1/+, L2/N/-, PE: push-in for 0,5... 2,5 mm² single-core/finely stranded
at output+1, -1, -2: push-in for 0,5... 2,5 mm²
for auxiliary contacts-

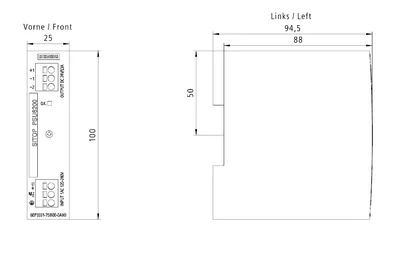

mechanical data
width × height × depth of the enclosure25 × 100 × 88 mm
installation width × mounting height25 mm × 200 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,2 kg
accessories
electrical accessoriesBuffer module, redundancy module
mechanical accessoriesIdentification labels SIMATIC ET 200SP 6ES7193-6LF30-0AW0
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing5,2 kg
global warming potential [CO2 eq] / during operation135,6 kg
global warming potential [CO2 eq] / after end of life0,15 kg
global warming potential [CO2 eq] / total140,9 kg
Aksesuarlar 9
Siemens 6EP3331-7SB00-0AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6EP4437-7EB00-3DX0 | Aksesuar · Selectivity module | |
| 6EP4437-7FB00-3DX0 | Aksesuar · Selectivity module | |
| 6EP4231-7HB00-0AX0 | Aksesuar · Buffer module · #NO_DATA# | |
| 6EP1964-2BA00 | Aksesuar · Redundancy module · #NO_DATA# | |
| 6ES7193-6LF30-0AW0 | Aksesuar · label | |
| 6EP1961-2BA11 | Aksesuar · Selectivity module | |
| 6EP1961-2BA31 | Aksesuar · Selectivity module | |
| 6EP1962-2BA00 | Aksesuar · Redundancy module · #NO_DATA# | |
| 6EP4346-7RB00-0AX0 | Aksesuar · Redundancy module · #NO_DATA# |
