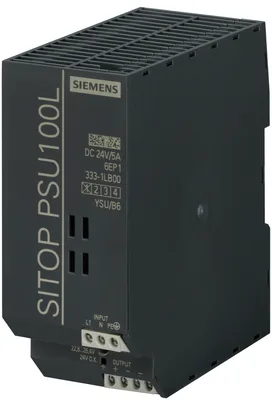

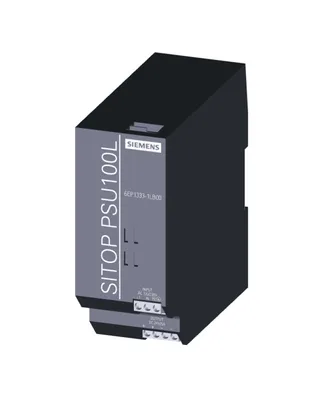

Siemens 6EP1333-1LB00

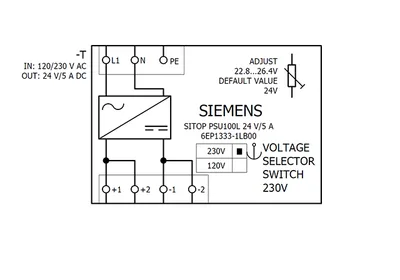

SITOP PSU100L 24 V/5 A Stabilized power supply input: 120/230 V AC, output: 24 V DC/5 A

SiemensMFR # 6EP1333-1LB00SKU # CEY-937FC77F15A3

product brand nameSITOP

product type designationPSU100L

product designationPower supply SITOP lite

type of current supply24 V/5 A

type of the power supply network1-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP PSU100L 24 V/5 A Stabilized power supply input: 120/230 V AC, output: 24 V DC/5 A

Siemens 6EP1333-1LB00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU100L

product designationPower supply SITOP lite

type of current supply24 V/5 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

supply voltage at ACSet by means of selector switch on the device

supply voltage120 V/230 V

input voltage 1 at AC93 ... 132 V

input voltage 2 at AC187 ... 264 V

at 50 Hz230 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputNo

overvoltage overload capability2.3 × Vin rated, 1.3 ms

buffering time for rated value of the output current in the event of power failure minimum20 ms

operating condition of the mains bufferingat Vin = 93/187 V

at rated input voltage 120 V2.1 A

at rated input voltage 230 V1.15 A

current limitation of inrush current at 25 °C maximum32 A

typical3 ms

I2t value maximum0.8 A²·s

fuse protection typeT 3,15 A/250 V (not accessible)

fuse protection type in the feederRecommended miniature circuit breaker: from 6 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage22.8 ... 26.4 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.5 %

maximum150 mV

typical50 mV

maximum240 mV

typical150 mV

display version for normal operationGreen LED for 24 V OK

behavior of the output voltage when switching onOvershoot of Vout approx. 4 %

response delay maximum1.5 s

typical130 ms

rated value5 A

rated range0 ... 5 A; +45 ... +60 °C: Derating 2%/K

supplied active power typical120 W

bridging of equipmentYes

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent86 %

at rated output voltage for rated value of the output current typical17 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.3 %

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical2 %

load step 10 to 90% typical0.4 ms

load step 90 to 10% typical0.4 ms

protection and monitoring

design of the overvoltage protection< 33 V

property of the output short-circuit proofYes

design of short-circuit protectionConstant current characteristic

typical5.25 A

typical8 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

typical0.4 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class A

for mains harmonics limitation-

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

UKCA markingYes

EAC approvalYes

NEC Class 2No

BISYes; R-41183539

CB-certificateYes

MTBF at 40 °C3 076 166 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total474.3 kg

during manufacturing12.9 kg

during operation460.9 kg

after end of life0.37 kg

ambient conditions

during operation0 ... 60 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.5 ... 2.5 mm²

for auxiliary contacts-

mechanical data

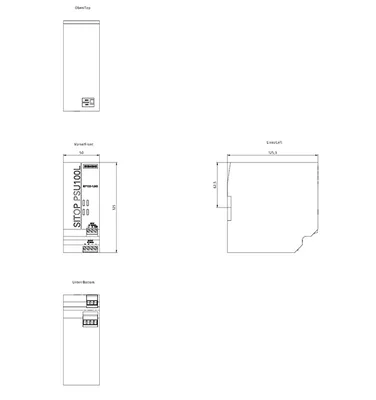

width × height × depth of the enclosure50 × 125 × 120 mm

installation width × mounting height50 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.5 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing12.9 kg

global warming potential [CO2 eq] / during operation460.9 kg

global warming potential [CO2 eq] / after end of life0.37 kg

global warming potential [CO2 eq] / total474.3 kg
