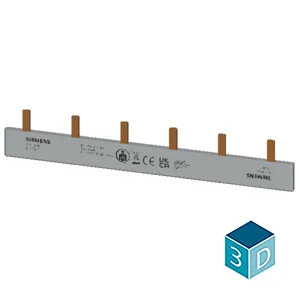

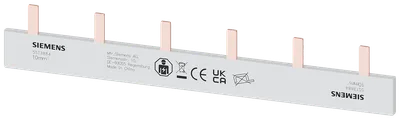

Siemens 5ST3884

pin busbar, 10 mm2 connection 1P 6x MCB 1P + AS/FC safe to touch 8.5 MW fixed length

SiemensMFR # 5ST3884SKU # YLSOP4JHS98XR5W

product brand nameSENTRON

product designationPin busbar

design of the product6x (1PH+HS)

design of the phase tapL1/L1

compatibilityfor 6 MCBs 1P

design of pole1 pole

Have questions?Chat on WhatsApp

About This Product

pin busbar, 10 mm2 connection 1P 6x MCB 1P + AS/FC safe to touch 8.5 MW fixed length

Siemens 5ST3884

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product6x (1PH+HS)

design of the phase tapL1/L1

General technical data

compatibilityfor 6 MCBs 1P

design of pole1 pole

phase number1

operational current rated value63 A

suitability for interaction devices with auxiliary switchYes

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting6

type of electrical connectionPin

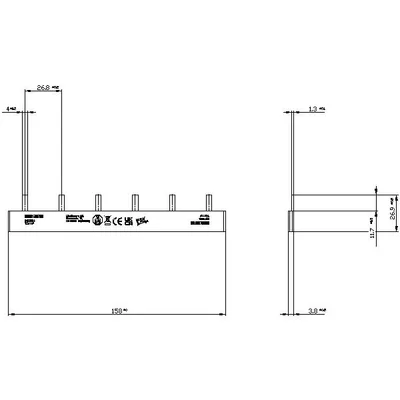

Mechanical Design

module width18 mm

height15 mm

width4 mm

length158 mm

number of modular width units9

cross-section10 mm²

angle of the pin of busbar0°

Net Weight32 g
