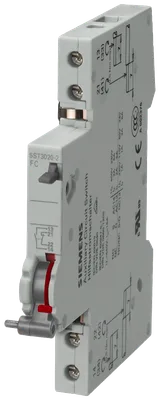

Siemens 5ST3022-2

fault signal contact with test button 2 NC for miniature circuit breakers 5SL, 5SY, 5SP RCBO 5SU1, RCCB 5SV (required for 5SU1 handle coupler 5ST3805-1)

SiemensMFR # 5ST3022-2SKU # YLSC6JCBLXWEQT

product brand nameSENTRON

product designationFault signal contact

design of the productMountable

design of the product factory mountedNo

insulation voltage rated value440 V

operational current at DC rated value0.05 A

Have questions?Chat on WhatsApp

About This Product

fault signal contact with test button 2 NC for miniature circuit breakers 5SL, 5SY, 5SP RCBO 5SU1, RCCB 5SV (required for 5SU1 handle coupler 5ST3805-1)

Siemens 5ST3022-2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationFault signal contact

design of the productMountable

design of the product factory mountedNo

electrical endurance (operating cycles) typical10 000

Voltage

insulation voltage rated value440 V

Current

operational current at DC rated value0.05 A

Supply voltage

at AC rated value minimum24 V

at DC rated value minimum24 V

protection class IPIP20

Control current

type of voltage of control voltageAC/DC

Product details

fault signal contactYes

auxiliary switchNo

number of fault signal contacts0

number of NC contacts2

number of NO contacts0

number of CO contacts0

product extension can be mountedUniversal

product extensionFault signal contact

Connections

minimum0.5 mm²

maximum2.5 mm²

minimum24

maximum12

maximum1 N·m

Mechanical Design

height90 mm

width9 mm

depth70 mm

number of modular width units1

Net Weight67 g

Environmental conditions

standardIEC/EN60947-5-1; IEC/EN62019; GB14048.5

minimum-25 °C

maximum55 °C

ambient temperature during storage minimum-40 °C
