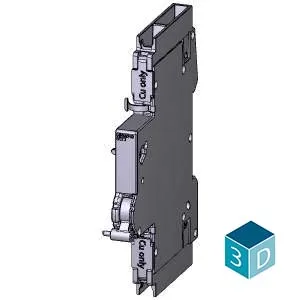

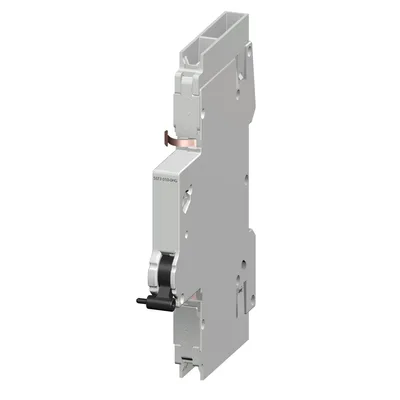

Siemens 5ST3012-0HG

auxiliary switch 2 NC, for miniature circuit breaker according to UL 489

SiemensMFR # 5ST3012-0HGSKU # CEY-8EF3B0389B2D

product brand nameSENTRON

product designationauxiliary switches

design of the productMountable

design of the product factory mountedNo

insulation voltage rated value440 V

surge voltage resistance rated value4 kV

Have questions?Chat on WhatsApp

About This Product

auxiliary switch 2 NC, for miniature circuit breaker according to UL 489

Siemens 5ST3012-0HG

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationauxiliary switches

design of the productMountable

design of the product factory mountedNo

electrical endurance (operating cycles) typical6 000

Voltage

insulation voltage rated value440 V

surge voltage resistance rated value4 kV

Current

operational current at DC rated value0.01 A

Supply voltage

minimum12 V

rated value480 V

at AC rated value minimum12 V

at DC rated value minimum12 V

protection class IPIP20

Control current

type of voltage of control voltageAC/DC

Product details

auxiliary switchYes

number of fault signal contacts0

number of NC contacts2

number of NO contacts0

number of CO contacts0

product extension can be mountedCircuit breaker

product extensionauxiliary switch

Connections

minimum0.5 mm²

maximum2.5 mm²

minimum24

maximum12

maximum0.5 N·m

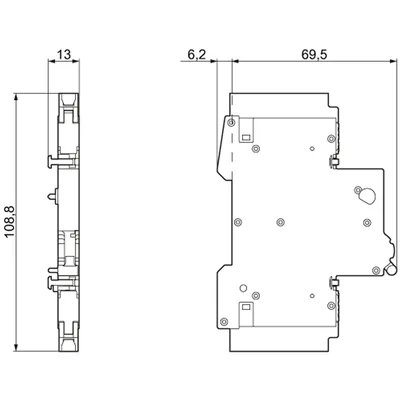

Mechanical Design

height110 mm

width9 mm

depth70 mm

number of modular width units1

Net Weight80 g

Environmental conditions

standardIEC/EN60947-5-1; IEC/EN62019; UL489
