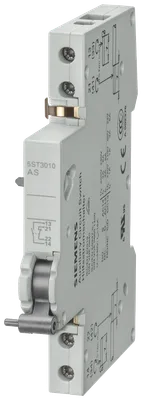

Siemens 5ST3013

auxiliary switch, 1 NO + 1 NC, low power for miniature circuit breakers 5SL, 5SY, 5SP, incorporated switch 5TL1, RCBO 5SU1 (without 5SU1…FP/FR), RCCB 5SV (for 5SU1, handle coupler 5ST3805-1 is required)

SiemensMFR # 5ST3013SKU # YLSLU3VMARSHEQV

product brand nameSENTRON

product designationauxiliary switches

design of the productMountable

design of the product factory mountedNo

insulation voltage rated value50 V

surge voltage resistance rated value1 kV

Have questions?Chat on WhatsApp

About This Product

Siemens 5ST3013

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationauxiliary switches

design of the productMountable

design of the product factory mountedNo

electrical endurance (operating cycles) typical10 000

Voltage

insulation voltage rated value50 V

surge voltage resistance rated value1 kV

Current

operational current at DC rated value0.001 ... 0.1 A

Supply voltage

minimum5 V

rated value30 V

at DC rated value minimum5 V

at DC rated value maximum30 V

protection class IPIP20

Breaking Capacity

switching capacity current rated value0 A

Control current

type of voltage of control voltageDC

Product details

auxiliary switchYes

number of fault signal contacts0

number of NC contacts1

number of NO contacts1

number of CO contacts0

product extension can be mountedUniversal

product extensionauxiliary switch

Connections

minimum0.5 mm²

maximum2.5 mm²

minimum24

maximum12

maximum0.5 N·m

Mechanical Design

height90 mm

width9 mm

depth70 mm

number of modular width units1

Net Weight61 g

Environmental conditions

minimum-25 °C

maximum55 °C

ambient temperature during storage minimum-40 °C
