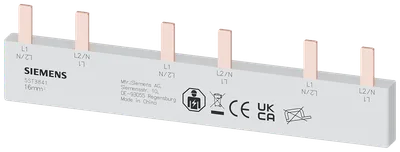

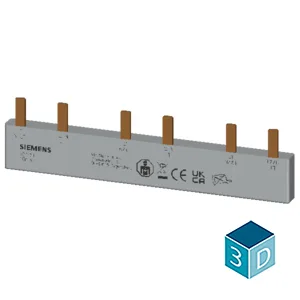

Siemens 5ST3841

pin busbar, 16 mm2 connection 2P/1P+N 3x MCB, RCCB 2P/1P+N + AS, FS safe to touch 7 MW fixed length

SiemensMFR # 5ST3841SKU # YLSXAIXJKNWFF

product brand nameSENTRON

product designationPin busbar

design of the product3x (1PH+N+HS)

design of the phase tapL1/L2 oder L1/N

compatibilityfor 3 MCBs (2P/1P+N)

design of pole2P / 1P+N

Have questions?Chat on WhatsApp

About This Product

pin busbar, 16 mm2 connection 2P/1P+N 3x MCB, RCCB 2P/1P+N + AS, FS safe to touch 7 MW fixed length

Siemens 5ST3841

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product3x (1PH+N+HS)

design of the phase tapL1/L2 oder L1/N

General technical data

compatibilityfor 3 MCBs (2P/1P+N)

design of pole2P / 1P+N

phase number2

operational current rated value80 A

suitability for interaction devices with auxiliary switchYes

suitability for interaction devices with N conductorYes

suitability for useRCCB 2P N right

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting3

type of electrical connectionPin

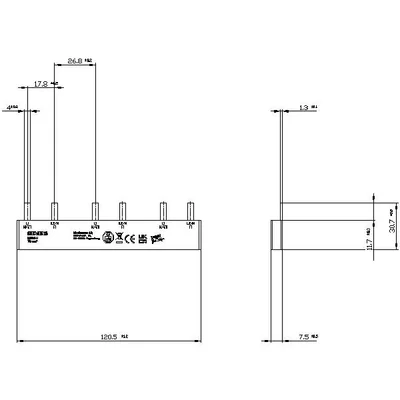

Mechanical Design

module width18 mm

height19 mm

width8 mm

length121 mm

number of modular width units7

cross-section16 mm²

angle of the pin of busbar0°

Net Weight48 g
