How can I get a price quote for Siemens 5ST3833?

You can request a fast quote for Siemens 5ST3833 from Yılsa Engineering. Reference part number YLSGQHKHM5OICFO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3833 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3833 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3833?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

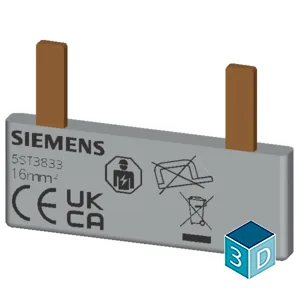

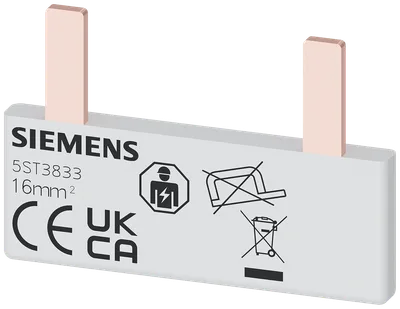

Siemens 5ST3833

pin busbar, 16 mm2 connection 1P 2x MCB 1P + AS/FC safe to touch 2.5 MW fixed length

SiemensMFR # 5ST3833SKU # YLSGQHKHM5OICFO

product brand nameSENTRON

product designationPin busbar

design of the product2x (1PH+HS)

design of the phase tapL1/L1

compatibilityfor 2 MCBs 1P

design of pole1 pole

Have questions?Chat on WhatsApp

About This Product

pin busbar, 16 mm2 connection 1P 2x MCB 1P + AS/FC safe to touch 2.5 MW fixed length

Siemens 5ST3833

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product2x (1PH+HS)

design of the phase tapL1/L1

General technical data

compatibilityfor 2 MCBs 1P

design of pole1 pole

phase number1

operational current rated value80 A

suitability for interaction devices with auxiliary switchYes

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting2

type of electrical connectionPin

Mechanical Design

module width18 mm

height15 mm

width4 mm

length40 mm

number of modular width units2

cross-section16 mm²

angle of the pin of busbar0°

Net Weight9 g

Accessories 41

Genuine accessories that can be used with the Siemens 5ST3833 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3855	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5ST3792-1	Aksesuar
5ST3791-2	Aksesuar
5ST3792-0	Aksesuar
5ST3791-0	Aksesuar
5ST3791-1	Aksesuar
5ST3022-0HG	Uyumlu ürün
5ST3015	Uyumlu ürün
5ST3015-2	Uyumlu ürün
5ST3018-0KC	Uyumlu ürün
5ST3016	Uyumlu ürün
5ST3020-0HG	Uyumlu ürün
5ST3021-0HG	Uyumlu ürün
5ST3020	Uyumlu ürün
5ST3021-2	Uyumlu ürün
5ST3062-0MC	Uyumlu ürün
5ST3020-2	Uyumlu ürün
5ST3021	Uyumlu ürün
5ST3014-2	Uyumlu ürün
5ST3022	Uyumlu ürün
5ST3022-2	Uyumlu ürün
5ST3028-0KC	Uyumlu ürün
5ST3062	Uyumlu ürün
5ST3014	Uyumlu ürün
5ST3012	Uyumlu ürün
5ST3013	Uyumlu ürün
5ST3013-2	Uyumlu ürün
5ST3010	Uyumlu ürün
5ST3010-2	Uyumlu ürün
5ST3011	Uyumlu ürün
5ST3011-0HG	Uyumlu ürün
5ST3011-2	Uyumlu ürün
5ST3010-Z	Uyumlu ürün
5ST3012-0HG	Uyumlu ürün
5ST3012-2	Uyumlu ürün
5ST3010-0HG	Uyumlu ürün
5ST3010-0HG-Z	Uyumlu ürün
